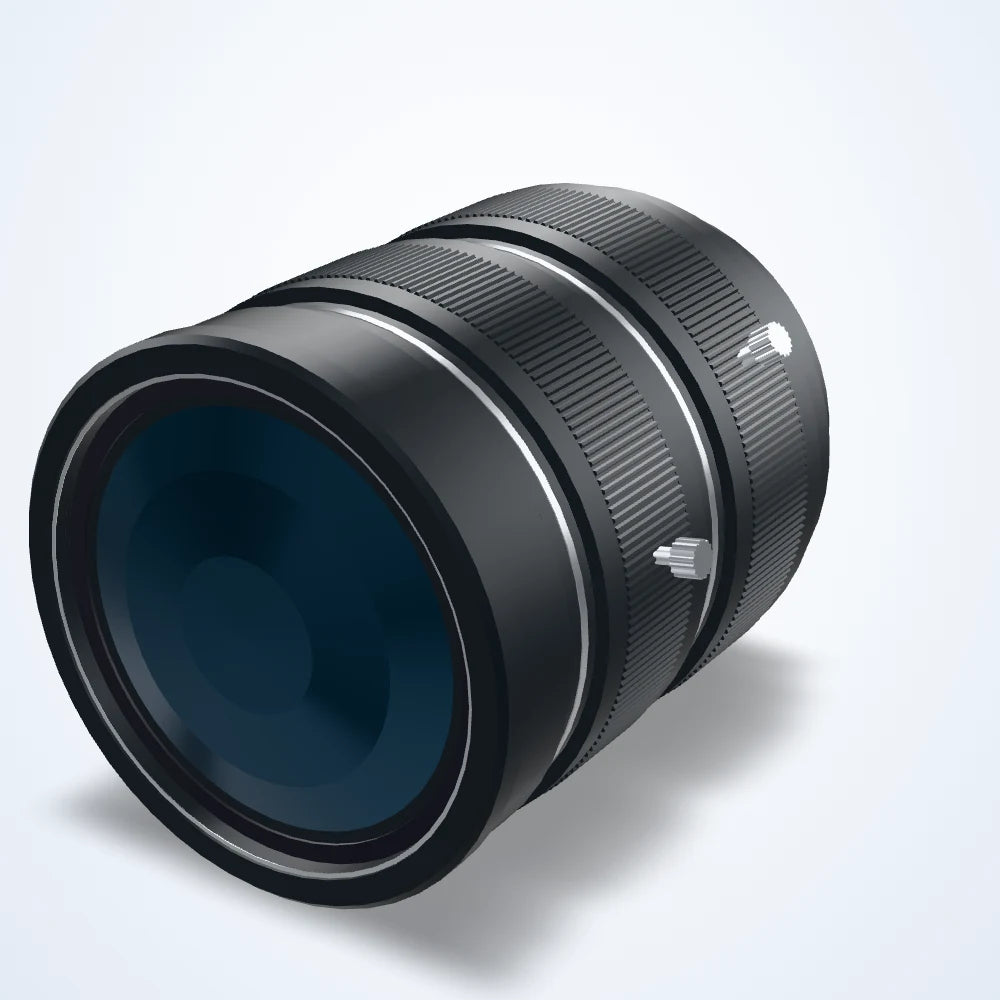

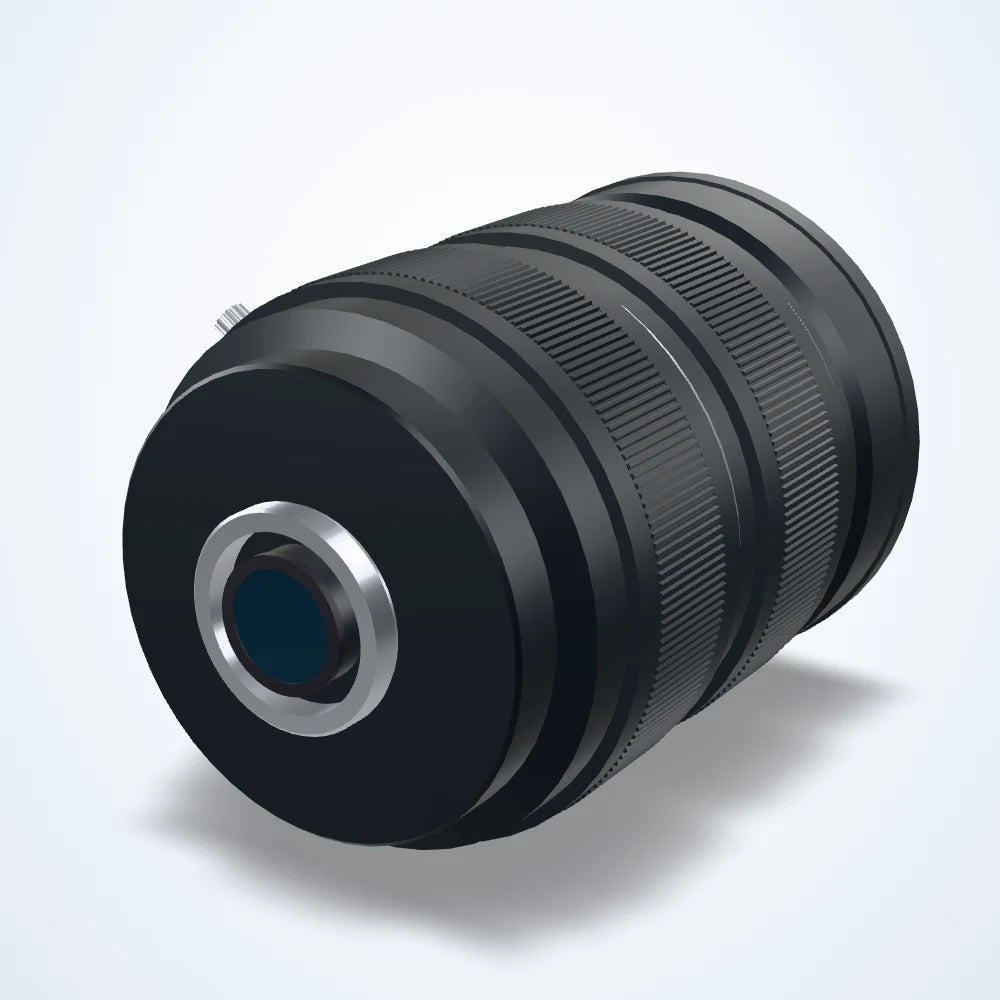

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm fixed focal length lens, 1.1", 20 MP, C-mount (LS-FFL-1269)
Model LS-FFL-1269
- Focal length16 mm
- MountC-mount
- Sensor1.1"
- ApertureManual
- Resolution20MP
- Field of view46.3° × 36° × 55.4°
$225.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm fixed focal length lens for machine-vision cameras. Focal length 16 mm; covers sensors up to 1.1"; resolves 20 MP; corrected for 420-1150 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1269 |
|---|---|
| Min. object distance | 0.1m |
| Front/Rear Effective Dia. | FrontΦ26.7 mm Rear Φ19.2 mm |
Optics
| Focal length | 16 mm |
|---|---|
| Back focal length | 22.4 mm |
| Field of view | 46.3° × 36° × 55.4° |
| Distortion | <0.5% |
| Aperture | Manual |
| Focus | Manual |
| Filter thread | M35.5*0.5 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution | 20MP |
Light
| Wavelength range | 420-1150 nm |
|---|
Environment and compliance
| Operating temperature | -10~+50° C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Shipping weight | 1.00 kg |
