Machine vision lenses
75 mm fixed focal length lens, 1.1", 12 MP, F2.6, C-mount (LS-FFL-1279)
Model LS-FFL-1279
- Focal length75 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.6
- Resolution12MP
- Field of view7.53° ×6.05° ×4.65°
$515.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm fixed focal length lens for machine-vision cameras. Focal length 75 mm; covers sensors up to 1.1"; resolves 12 MP; aperture F2.6; corrected for 400-700 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1279 |
|---|---|
| Min. object distance | 0.3m |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F2.6 |
| Field of view | 7.53° ×6.05° ×4.65° |
| Distortion | <-0.35% |
| Focus | Manual |
| Filter thread | M34*0.5 |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution | 12MP |
Light
| Wavelength range | 400-700 nm |
|---|
Environment and compliance
| Operating temperature | -30 °C~ +70 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

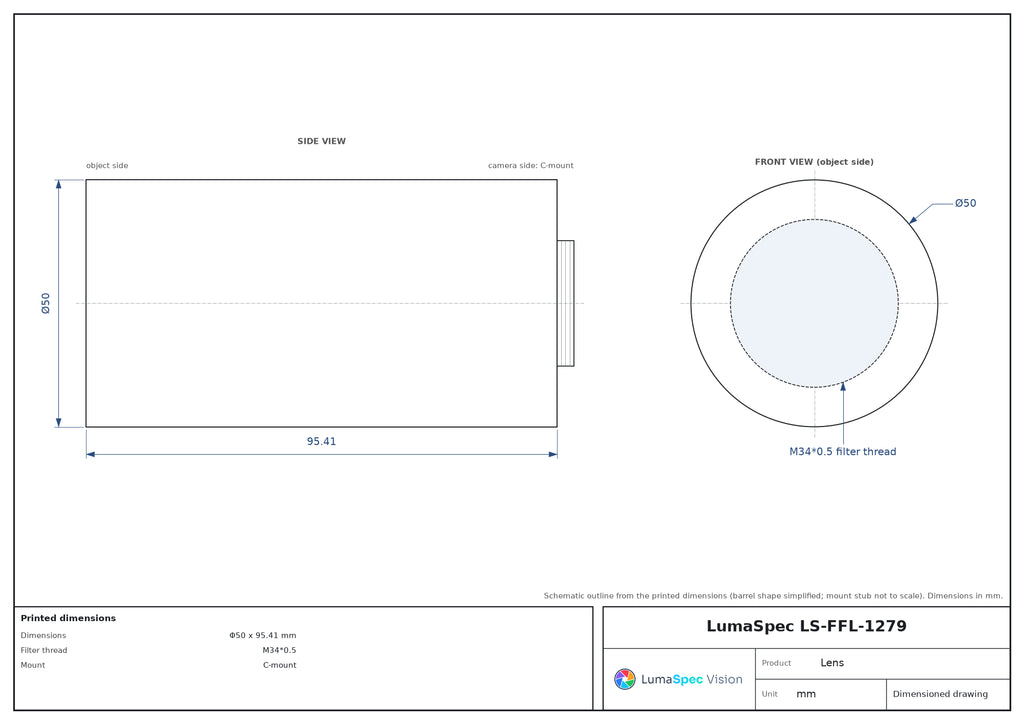

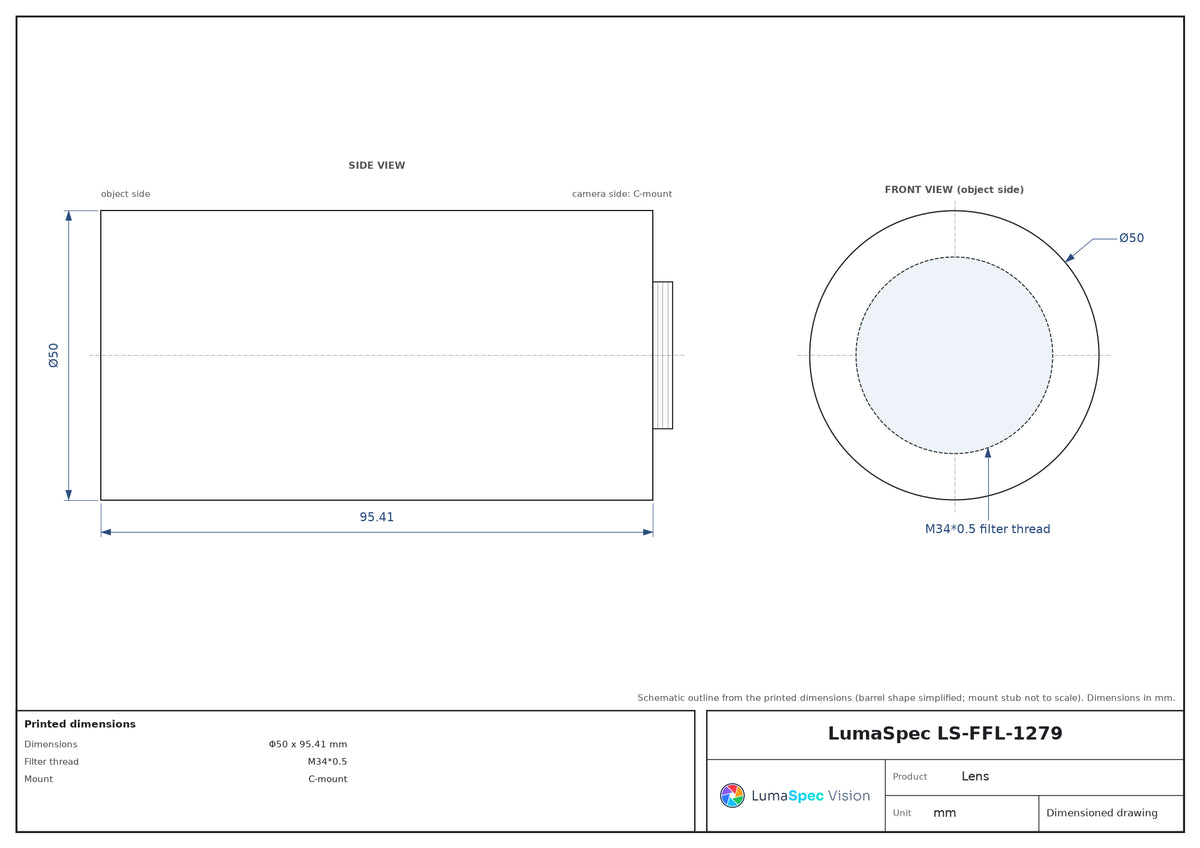

| Dimensions | Φ50 x 95.41 mm |
| Weight | 270g |
