Machine vision lenses
8 mm fixed focal length lens, 1.1", 25 MP, C-mount (LS-FFL-1263)
Model LS-FFL-1263
- Focal length8 mm
- MountC-mount
- Sensor1.1"
- ApertureF2.8-22
- Resolution25MP
$300.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
8 mm fixed focal length lens for machine-vision cameras. Focal length 8 mm; covers sensors up to 1.1"; resolves 25 MP; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1263 |
|---|---|
| Min. object distance | 0.1 m |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture | F2.8-22 |
| Field of view | 2/3": 55.2°×47.5° 1": 70.35°×70.35° 1.1": 82.8°×65.8° |
| Distortion | <3% |
| Focus | Manual |
Sensor and imaging
| Sensor format | 1.1" |
|---|---|
| Resolution | 25MP |
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

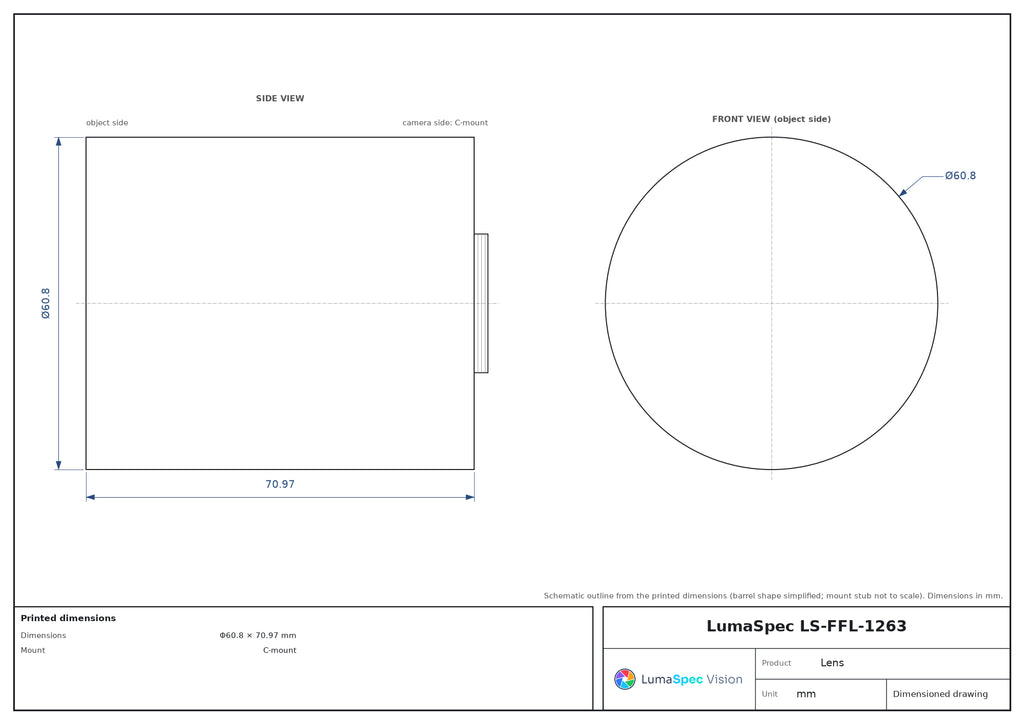

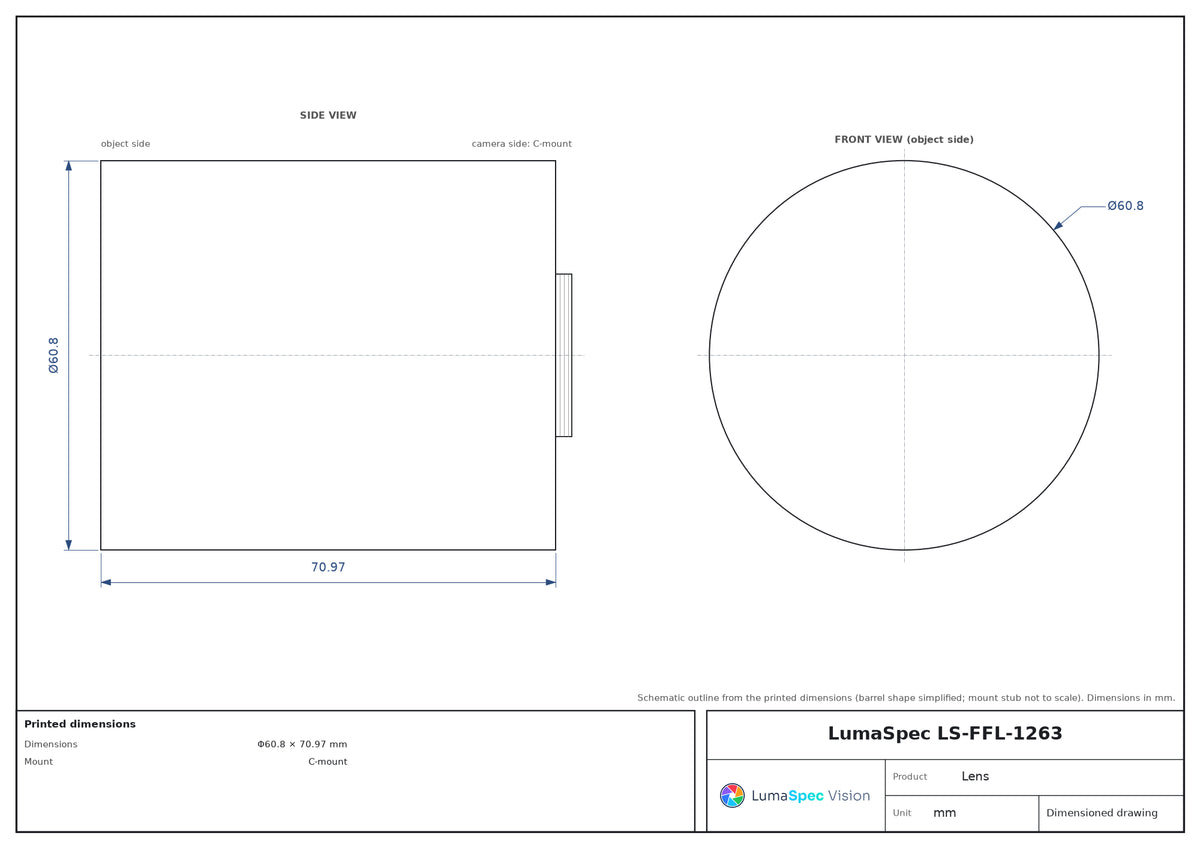

| Dimensions | Φ60.8 × 70.97 mm |
| Weight | 337g |
