Machine vision lenses

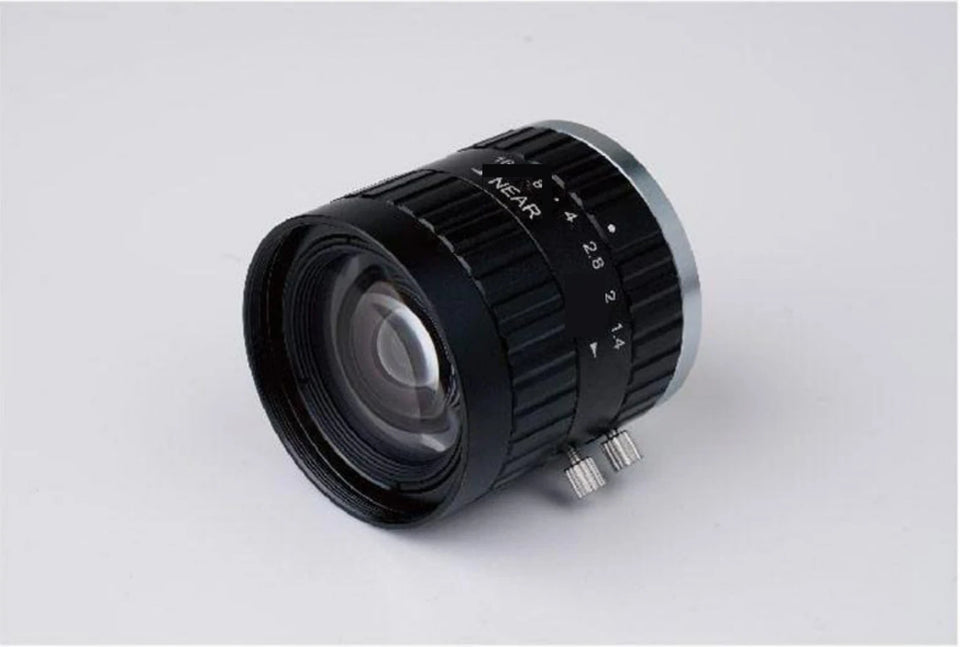

Fixed lens for FA, 2/3" 5MP (LS-FFL-S92)
- 6 models
- from $169.00
- Series LS-FFL-S92
The Fixed lens for FA, 2/3" 5MP (LS-FFL-S92) is a range of 6 machine vision lenses from LumaSpec Vision, from $169.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 2/3", C-Mount, 12 mm, 2/3", C-Mount, 16 mm, 2/3", C-Mount, 25 mm, 2/3", C-Mount, 35 mm, 2/3", C-Mount, 50 mm, 2/3", C-Mount
- Mount
- C-mount
- Resolution
- 5 MP
- Image circle
- Up to 8 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
Features
- 5MP, suitable for 2MP, 3MP, 5MP cameras
- High relative illumination, big aperture
- Focus range from 0.1 m to infinity
- F/NO 1.4-16 large aperture, good uniformity
- High contrast image
Typical uses
- Container: yes or no / identify - check if different types of bottle caps are mixed in
- Automobile: blemish / stain - check the piston for chip attachment
- Industrial: height - detection of metal marks
- Industrial: position / tilt - confirm the working installation position in the metal mold
All 6 models in the Fixed lens for FA, 2/3" 5MP (LS-FFL-S92)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0695 | 8 mm, 2/3", C-Mount | 8 | F1.4-16 | 42.5° x 32.4° | $169.00 | View |
| LS-FFL-0696 | 12 mm, 2/3", C-Mount | 12 | F1.4-16 | 29.48° x 22.8° | $179.00 | View |
| LS-FFL-0698 | 25 mm, 2/3", C-Mount | 25 | F1.4-16 | 14.6° x 11° | $199.00 | View |
| LS-FFL-0697 | 16 mm, 2/3", C-Mount | 16 | F1.4-16 | 22.3° x 16.8° | $209.00 | View |
| LS-FFL-0699 | 35 mm, 2/3", C-Mount | 35 | F1.4-16 | 10.1° x 7.6° | $219.00 | View |
| LS-FFL-0700 | 50 mm, 2/3", C-Mount | 50 | F1.4-C | 7.6° x 5.27° | $249.00 | View |
