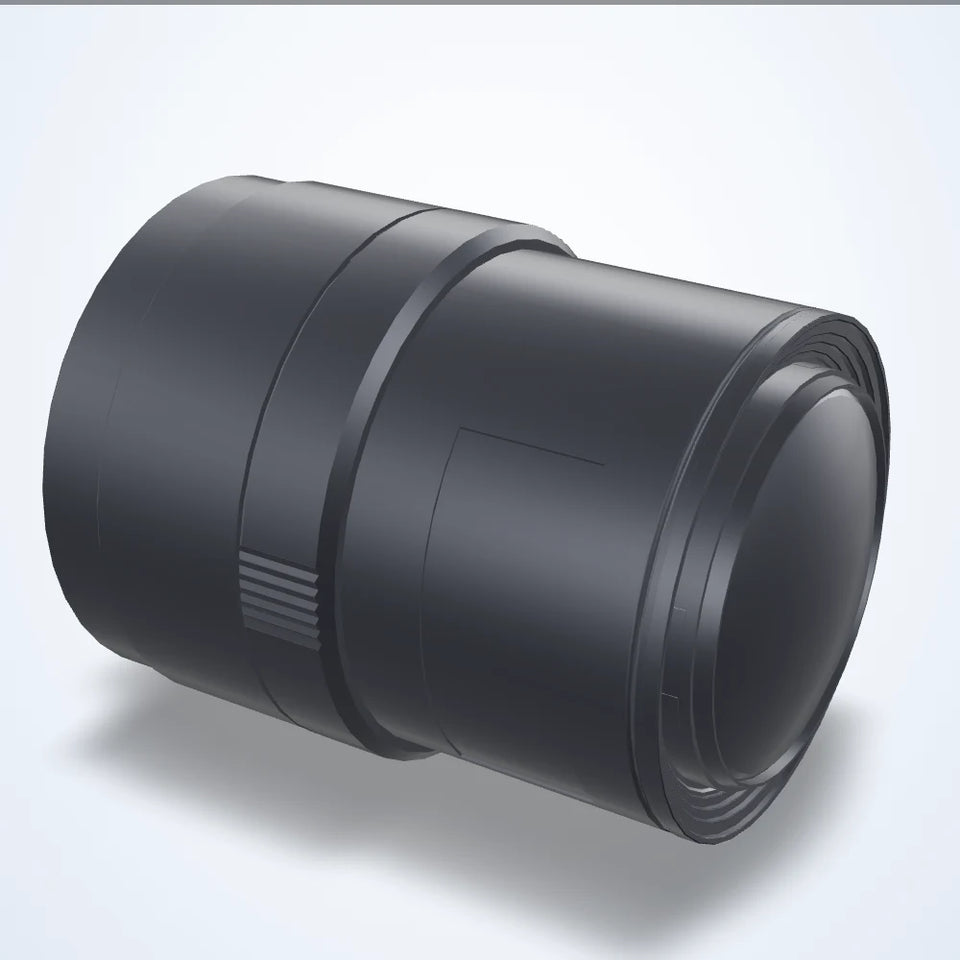

Lens series, 1/2.7", CS-mount

Machine vision lenses

Lens series, 1/2.7", CS-mount

  • 9 models
  • from $129.00
  • Series LS-ZML-S02

The Lens series, 1/2.7", CS-mount is a range of 9 machine vision lenses from LumaSpec Vision, from $129.00. It comes in 3 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 9 models Series datasheet (PDF)

The series at a glance

Sizes / versions
2.8 - 10 mm, 8.5 - 50 mm, 12.5 - 50 mm
Mount
CS-mount
Image circle
Up to 8 mm
Focal length
Varifocal / zoom
Sensor format
1/2.5" and smaller

All 9 models in the Lens series, 1/2.7", CS-mount

Link
LS-ZML-00032.8 - 10 mm4×f/1.243.6 × 43.6 × 59 mm$129.00quoteView
LS-ZML-00048.5 - 50 mm6×f/1.649 × 49 × 58.2 mm$149.00quoteView
LS-ZML-00082.8 - 10 mm4×f/1.256 × 46 × 59 mm$149.00quoteView
LS-ZML-00092.8 - 10 mm4×f/1.256 × 46 × 59 mm$149.00quoteView
LS-ZML-00108.5 - 50 mm6×f/1.646 × 60 × 58.2 mm$159.00quoteView
LS-ZML-00118.5 - 50 mm6×f/1.646 × 60 × 58.2 mm$159.00quoteView
LS-ZML-000212.5 - 50 mmf/1.449 × 49 × 58.2 mm$229.00quoteView
LS-ZML-000612.5 - 50 mm4×f/1.446 × 60 × 58.2 mm$249.00quoteView
LS-ZML-00072.8 - 10 mm4×f/1.460 × 51 × 58.2 mm$249.00quoteView
