12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002)

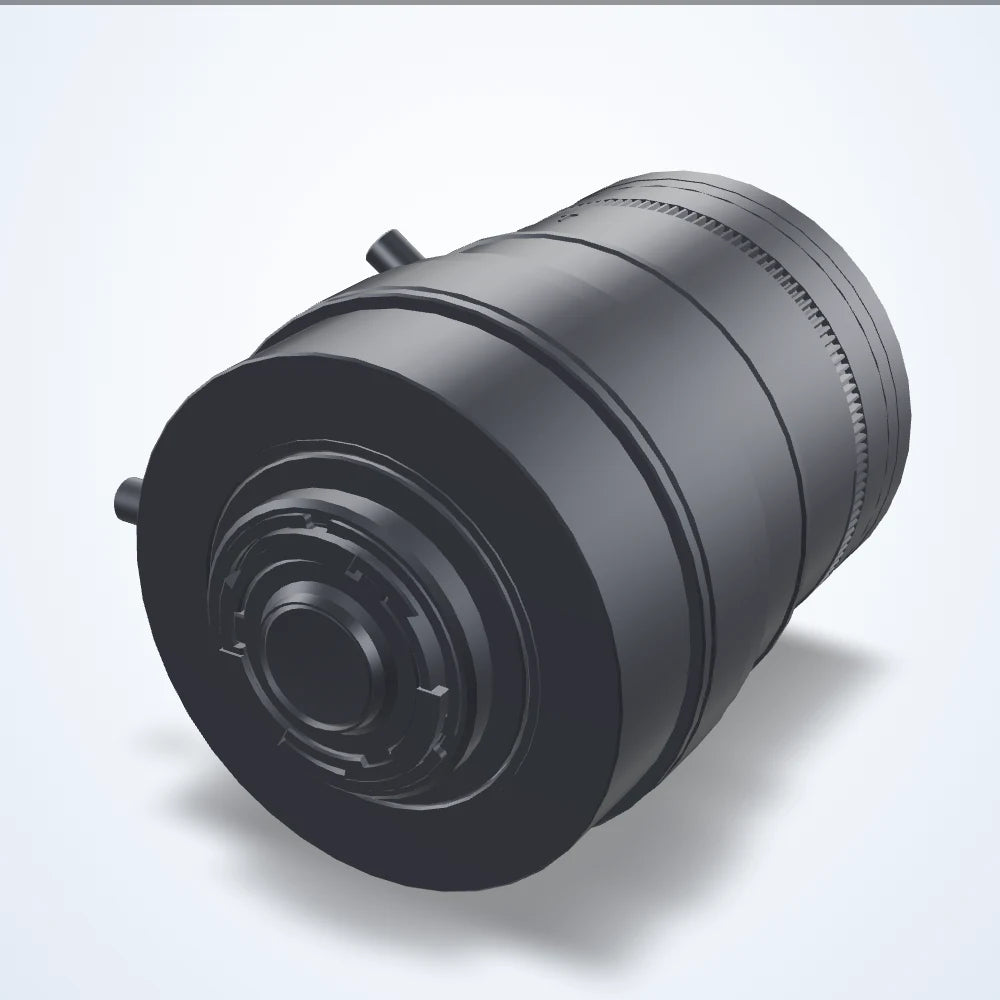

  • 12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002)

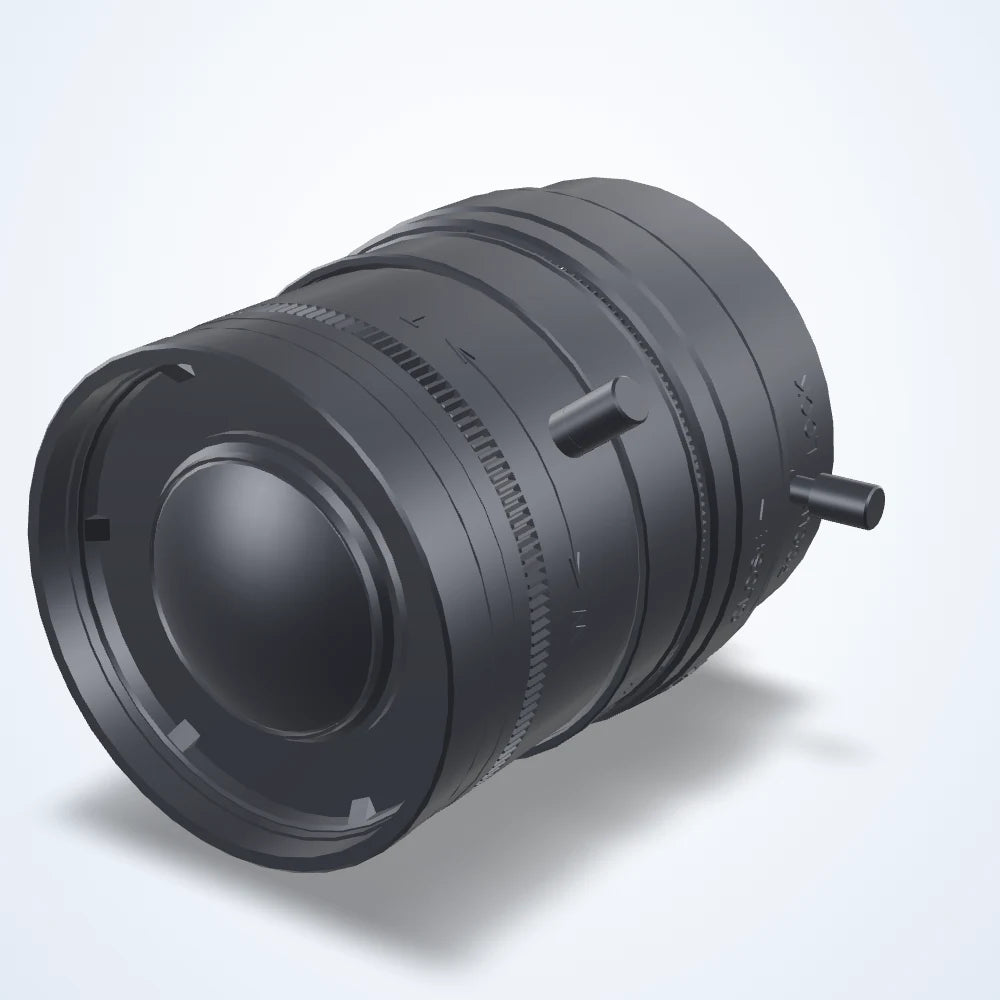

  • 12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002) - view 2

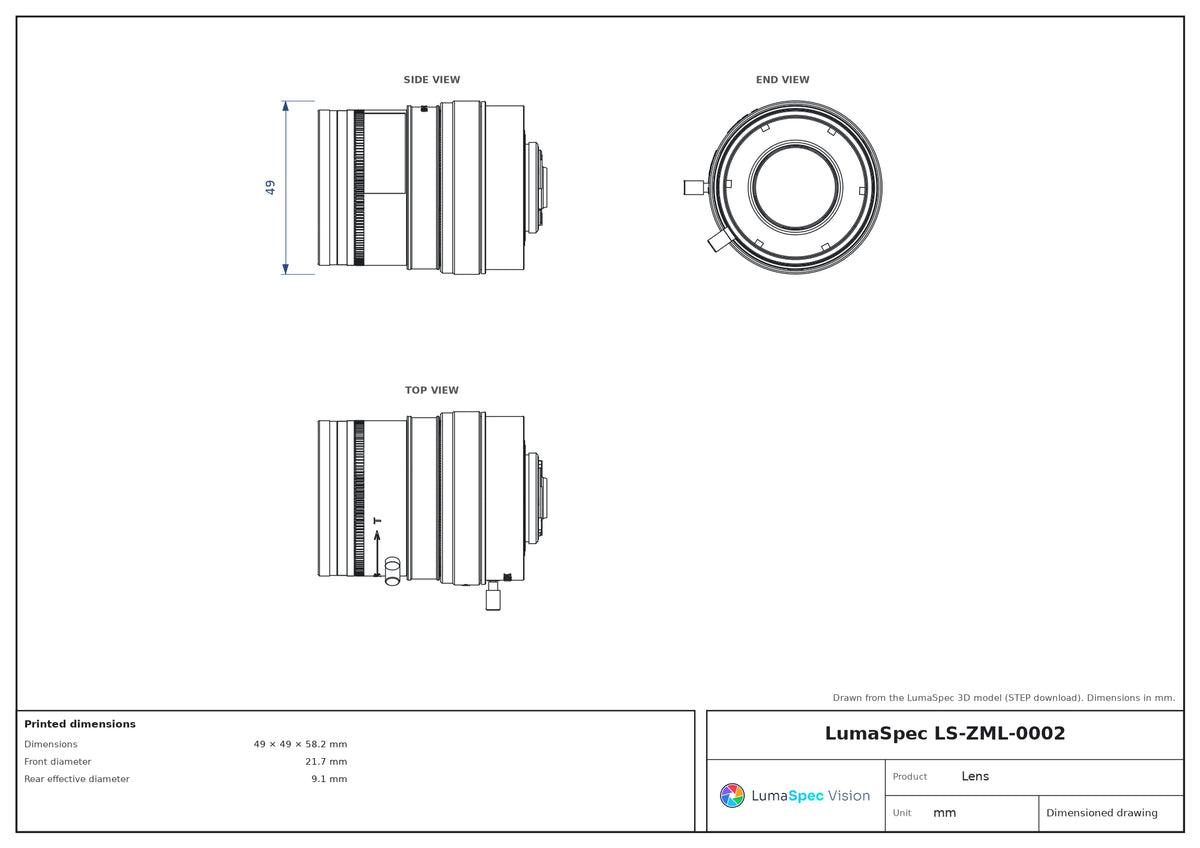

  • LS-ZML-0002 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002)

Model LS-ZML-0002

  • Focal length12.5 - 50 mm
  • MountCS-mount
  • Sensor1/2.7"
  • Aperturef/1.4
  • Resolution3
$229.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

12.5 - 50 mm lens, 1/2.7", CS-mount (LS-ZML-0002)LS-ZML-0002

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 1000 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-ZML-0002
Minimum object distance1000 mm
Aov @ 1/2.7″ (16:9) h°×v°×d°26.3 × 14.5 × 30.3° 6.7 × 3.8 × 7.7°
Aov @ 1/3″ (4:3) h°×v°×d°21.7 × 16.2 × 27.4° 5.6 × 4.3 × 7.0°
Lens typeVariable Focal Length
SpectrumVisible + NIR
Zoom controlManual
Zoom range12.5 mm - 50 mm

Optics

Focal length12.5 - 50 mm
Aperture (max)f/1.4
Back focal length7.3 mm
Filter threadM40.5-0.5
Focus controlManual
Focus range1 m - ∞
Image circle6.6 mm
Image size dimensions3.2 mm x 5.8 mm
Iris controlManual

Sensor and imaging

Sensor format1/2.7"
Resolution (MP)3

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountCS-mount
Dimensions49 × 49 × 58.2 mm
Front diameter21.7 mm
Rear effective diameter9.1 mm
Weight80

LS-ZML-0002

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-ZML-0002 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Focal length
12.5 - 50 mm
Sensor format
1/2.7"
Mount
CS-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
