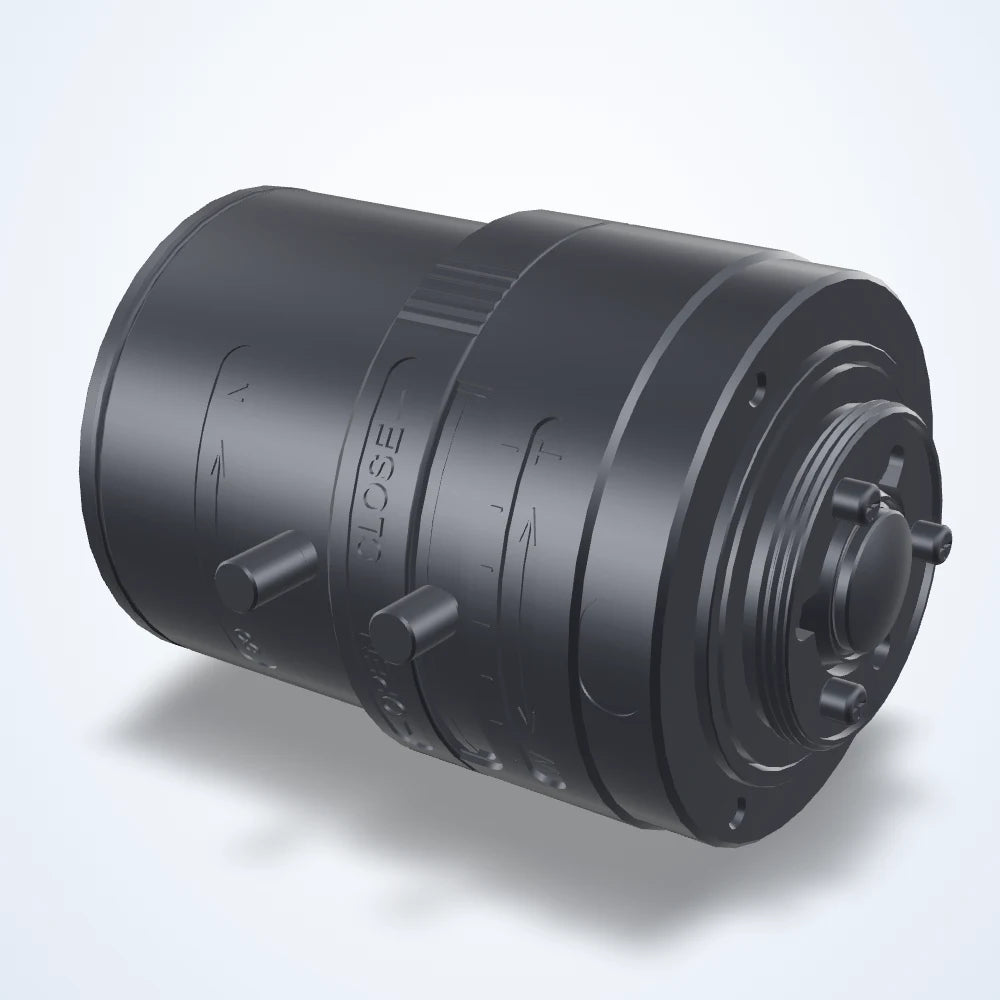

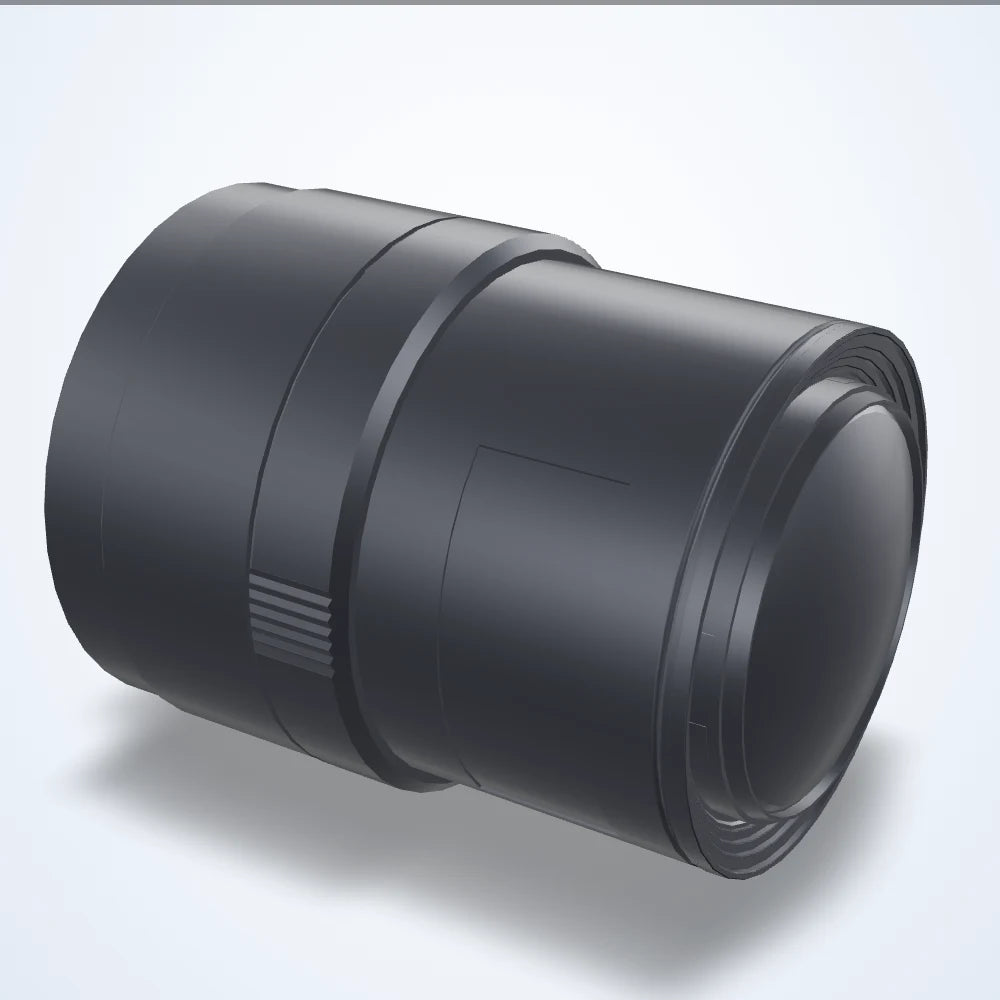

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
2.8 - 10 mm lens, 1/2.7", CS-mount, iris control Manual (LS-ZML-0003)
Model LS-ZML-0003
- Focal length2.8 - 10 mm
- Magnification4×
- MountCS-mount
- Sensor1/2.7"
- Aperturef/1.2
- Resolution3
$129.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 500 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-ZML-0003 |
|---|---|
| Minimum object distance | 500 mm |
| Aov @ 1/2.7″ h°×v°×d° | 127.6 × 65.0 × 154.0° 34.3 × 18.9 × 39.0° |
| Aov @ 1/3″ h°×v°×d° | 101.3 × 73.7 × 133.5° 28.4 × 21.3 × 35.5° |
| Aov @ 1/4″ h°×v°×d° | 73.7 × 54.4 × 94.1° 21.3 × 16.0 × 26.6° |
| Lens type | Variable Focal Length |
| Spectrum | Visible + NIR |
| Zoom control | Manual |
| Zoom range | 2.8 mm - 10 mm |
Optics
| Focal length | 2.8 - 10 mm |
|---|---|
| Magnification | 4× |
| Aperture (max) | f/1.2 |
| Back focal length | 7.3 mm |
| Filter thread | No Filter Threads |
| Focus control | Manual |
| Focus range | 0.5 m - ∞ |
| Image circle | 6.6 mm |
| Image size dimensions | 3.2 mm x 5.8 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1/2.7" |
|---|---|
| Resolution (MP) | 3 |
Environment and compliance
| Operating temperature range | -10 to +50 °C |
|---|
Mechanical
| Mount | CS-mount |
|---|---|

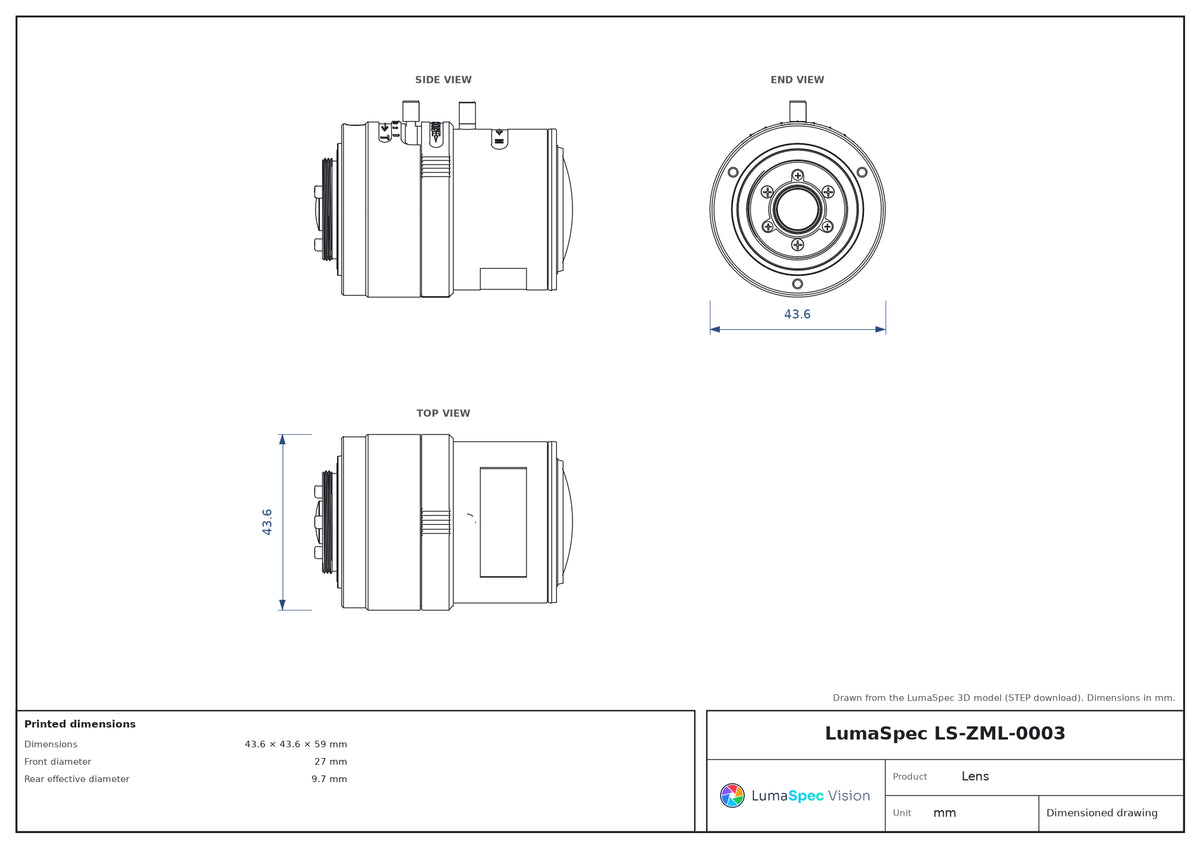

| Dimensions | 43.6 × 43.6 × 59 mm |
| Front diameter | 27 mm |
| Rear effective diameter | 9.7 mm |
| Weight | 63 |
