Machine vision lenses

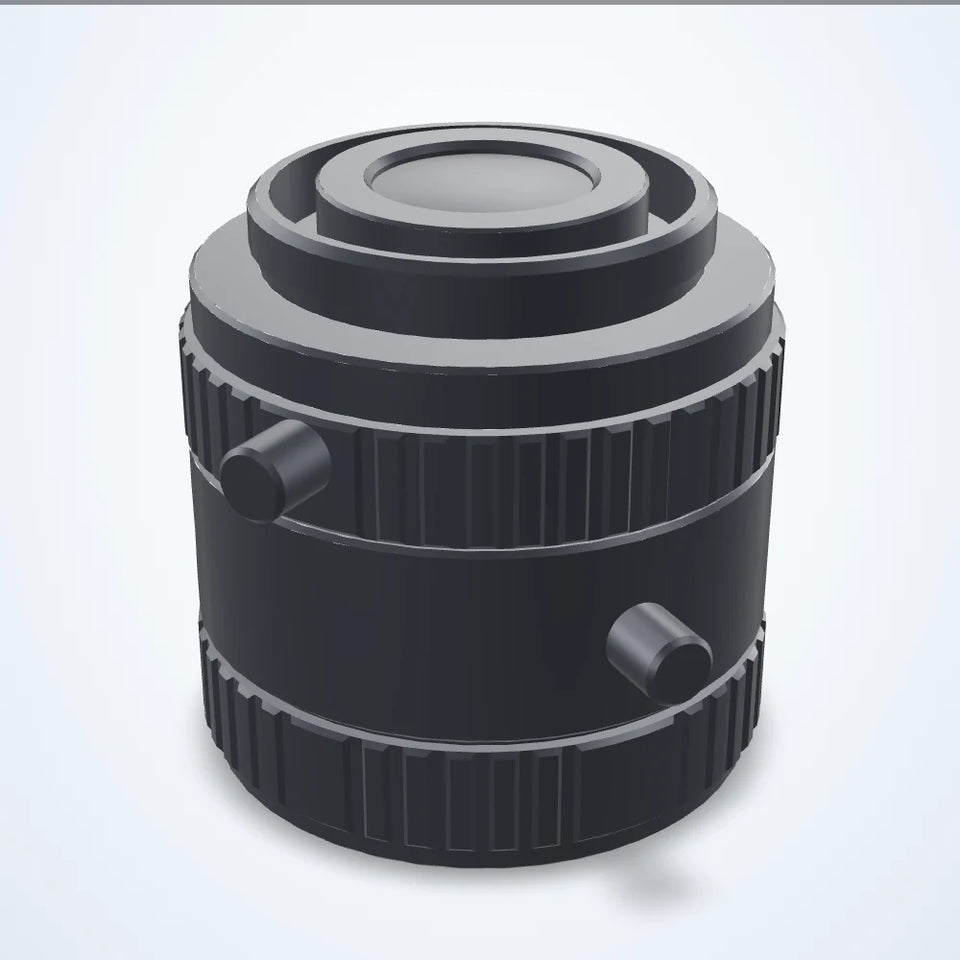

Lens series, C-mount (S36)
- 6 models
- from $1,309.00
- Series LS-FFL-S36
The Lens series, C-mount (S36) is a range of 6 machine vision lenses from LumaSpec Vision, from $1,309.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 5 mm, 8 mm, 12 mm, 16 mm, 25 mm, 50 mm
- Mount
- C-mount
- Image circle
- Up to 8 mm, 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1/2", 2/3"
All 6 models in the Lens series, C-mount (S36)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0250 | 8 mm | 2/3" | 0.1 m to ∞ | f/1.4 | $1,309.00quote | View |
| LS-FFL-0251 | 12 mm | 2/3" | 0.15 m to ∞ | f/1.4 | $1,309.00quote | View |
| LS-FFL-0252 | 16 mm | 2/3" | 0.3 m to ∞ | f/1.4 | $1,309.00quote | View |
| LS-FFL-0253 | 25 mm | 2/3" | 0.3 m to ∞ | f/1.4 | $1,309.00quote | View |
| LS-FFL-0254 | 50 mm | 2/3" | 0.5 m to ∞ | f/1.8 | $1,309.00quote | View |
| LS-FFL-0249 | 5 mm | 1/2" | 0.1 to 0.9 m | f/1.4 | $1,529.00quote | View |
