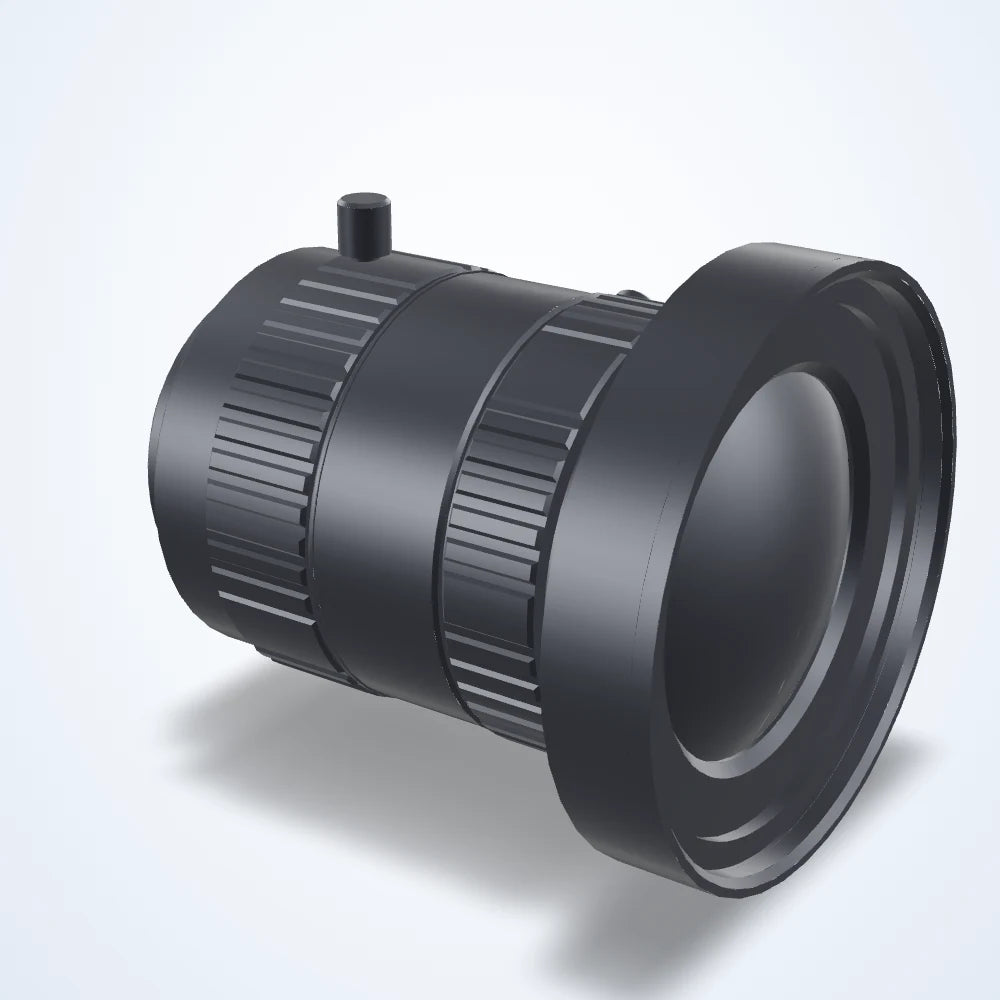

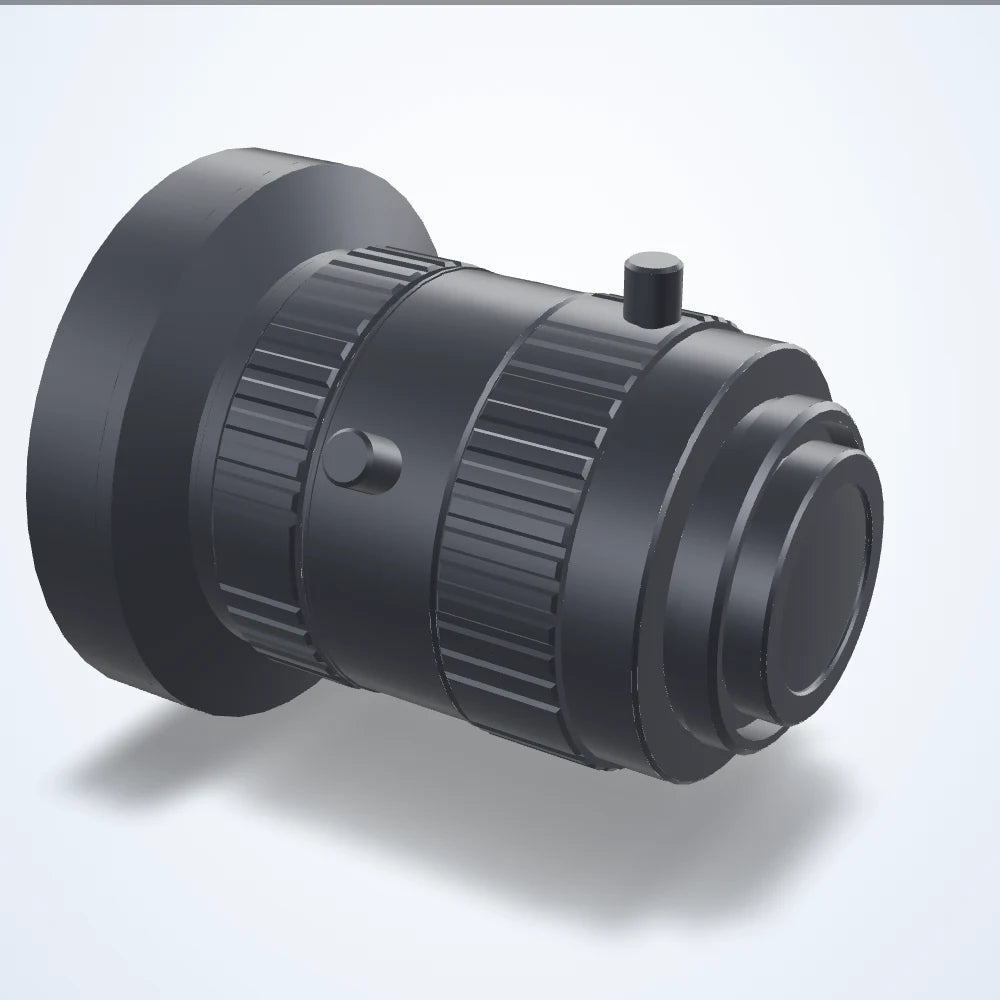

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
5 mm lens, 1/2", C-mount (LS-FFL-0249)
Model LS-FFL-0249
- Focal length5 mm
- MountC-mount
- Sensor1/2"
- Working distance0.1 to 0.9 m
- Aperturef/1.4
$1,529.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Working distance 0.1 to 0.9 m.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0249 |
|---|---|
| Aov @ 1/2 | 77.8 ° |
| Lens type | SWIR |
Optics
| Focal length | 5 mm |
|---|---|
| Working distance | 0.1 to 0.9 m |
| Aperture (max) | f/1.4 |
| Back focal length | 10.8 mm |
| Filter thread | M43-0.75 |
| Focus control | Manual |
| Image circle | 8.2 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 1/2" |
|---|
Light
| Wavelength | 400 - 1700 nm |
|---|
Environment and compliance
| Operating temperature range | -10 to 50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

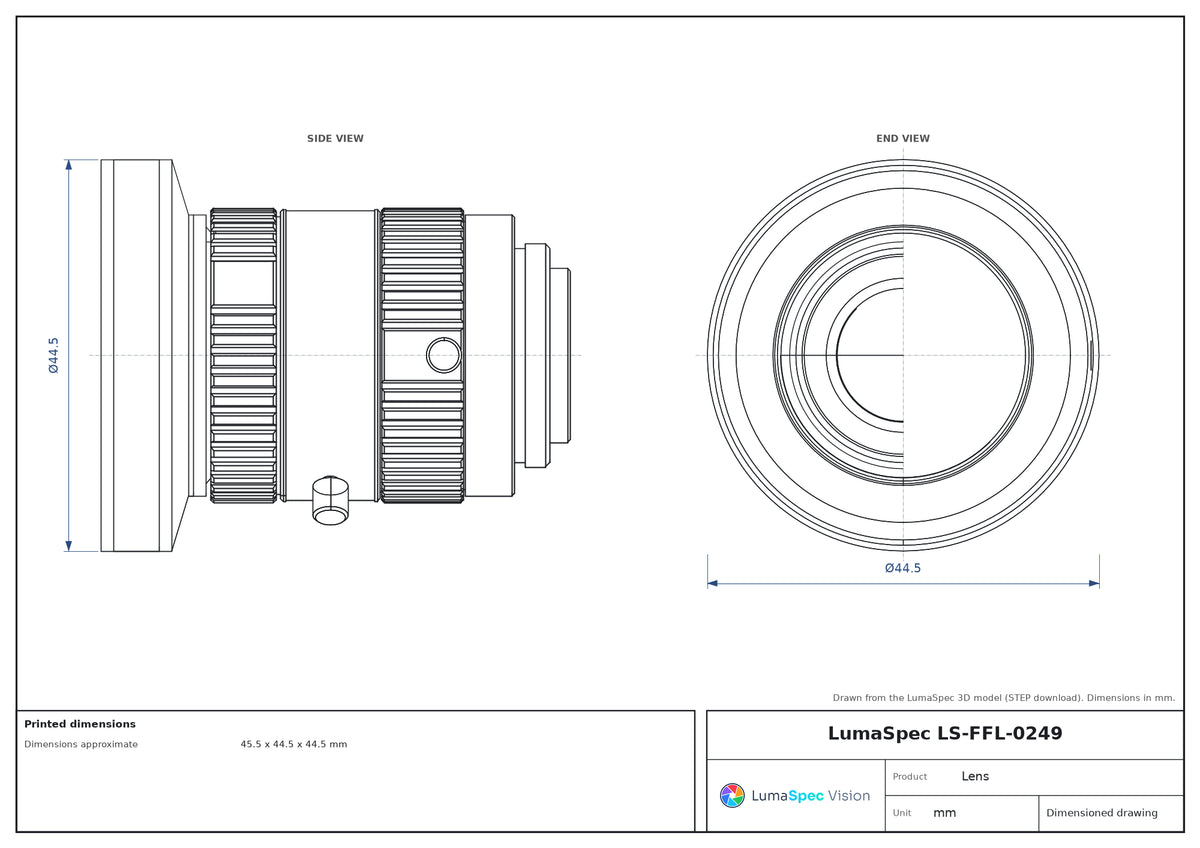

| Dimensions approximate | 45.5 x 44.5 x 44.5 mm |
| Weight | 102 Grams |
LS-FFL-0249
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 5 mm
- Sensor format
- 1/2"
- Mount
- C-mount
- Working distance
- 0.1 to 0.9 m
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Lens series, C-mount (S36) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0250 | 8 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0251 | 12 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0252 | 16 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0253 | 25 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0254 | 50 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
