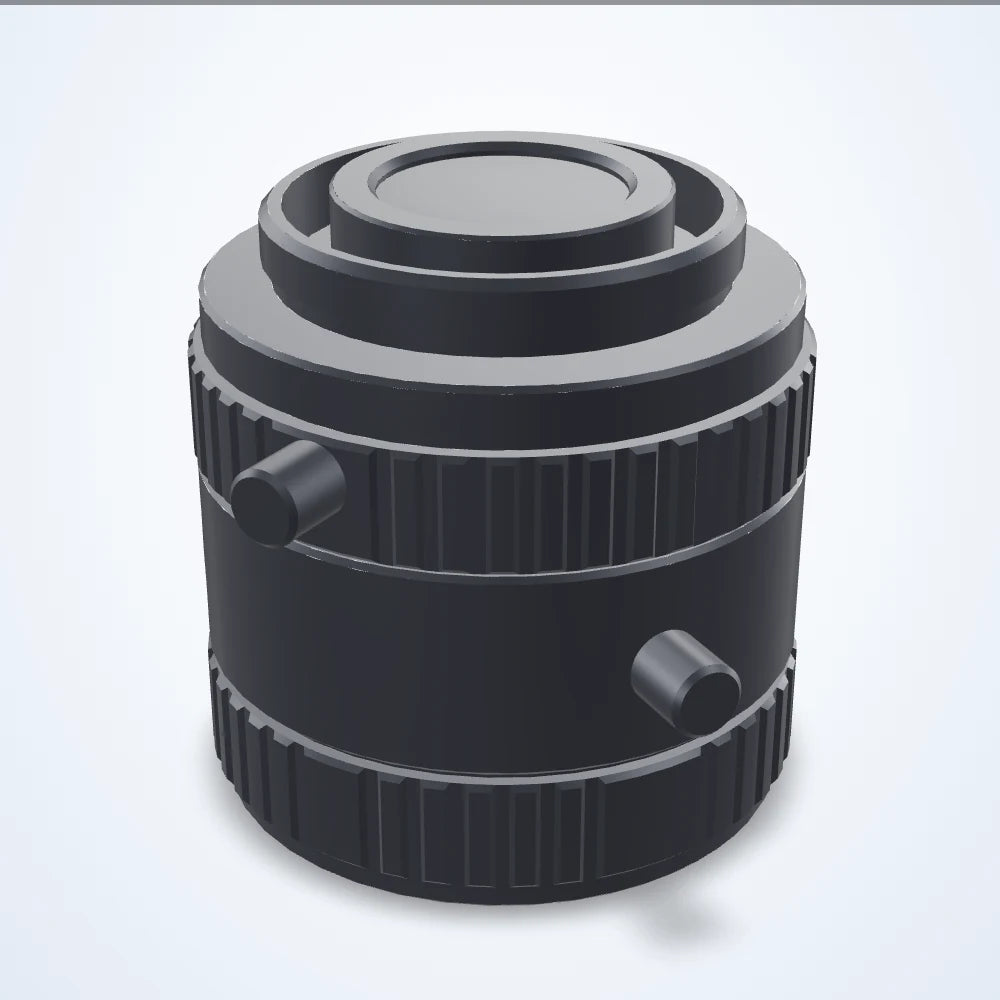

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
16 mm lens, 2/3", C-mount, f/1.4 (LS-FFL-0252)
Model LS-FFL-0252
- Focal length16 mm
- MountC-mount
- Sensor2/3"
- Working distance0.3 m to ∞
- Aperturef/1.4
$1,309.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Working distance 0.3 m to ∞.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0252 |
|---|---|
| Aov @ 1/2 | 28.8 ° |
| Aov @ 2/3 | 38 ° |
| Lens type | SWIR |
Optics
| Focal length | 16 mm |
|---|---|
| Working distance | 0.3 m to ∞ |
| Aperture (max) | f/1.4 |
| Back focal length | 13.1 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Image circle | 11 mm |
| Iris control | Manual |
Sensor and imaging
| Sensor format | 2/3" |
|---|
Light
| Wavelength | 400 - 1700 nm |
|---|
Environment and compliance
| Operating temperature range | -10 to 50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 28.2 x 33.5 x 33.5 mm |
| Weight | 60 Grams |
LS-FFL-0252

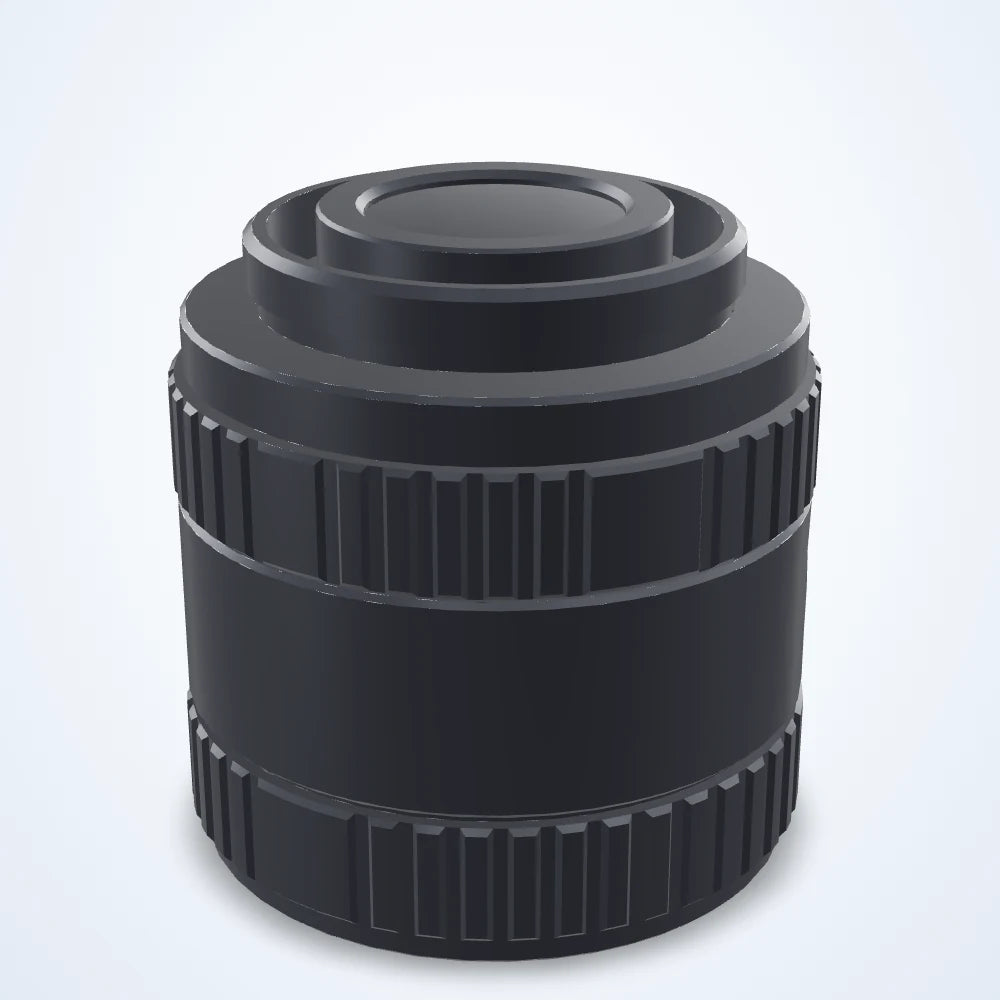

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 16 mm
- Sensor format
- 2/3"
- Mount
- C-mount
- Working distance
- 0.3 m to ∞

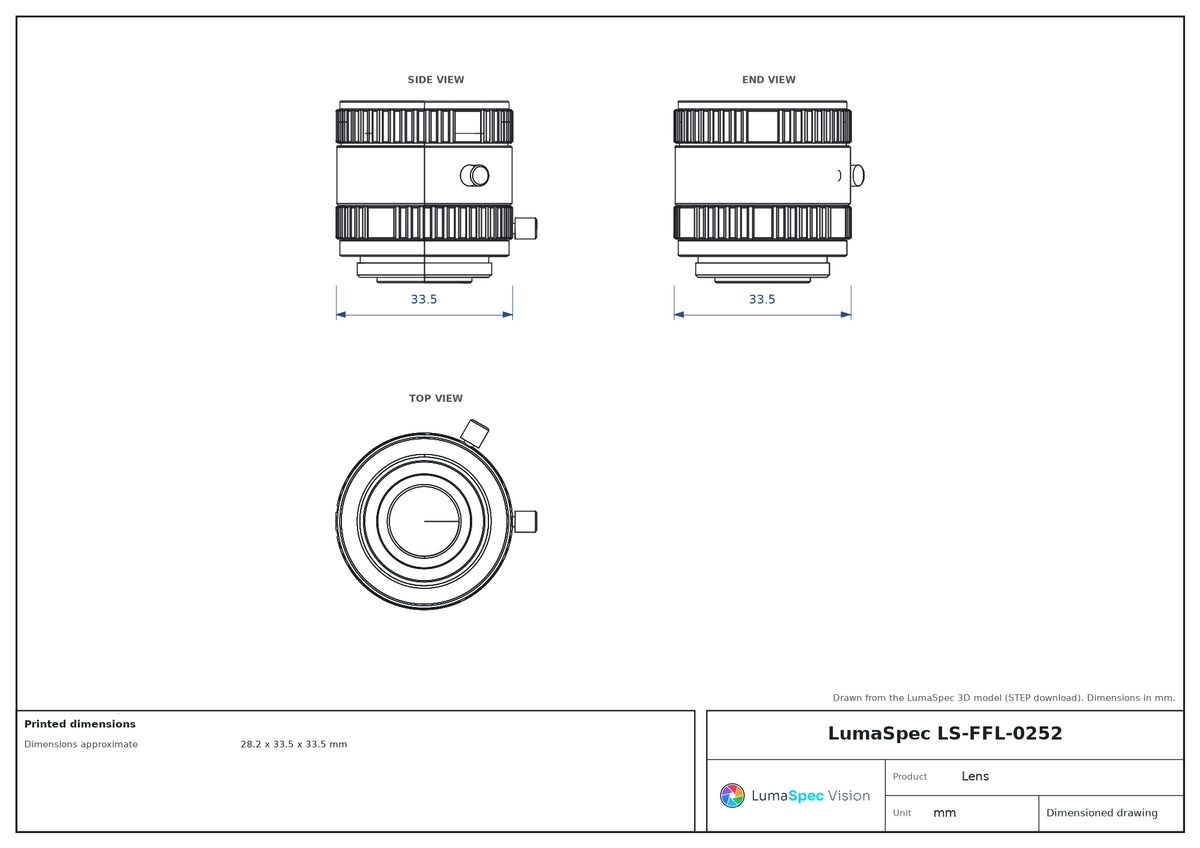

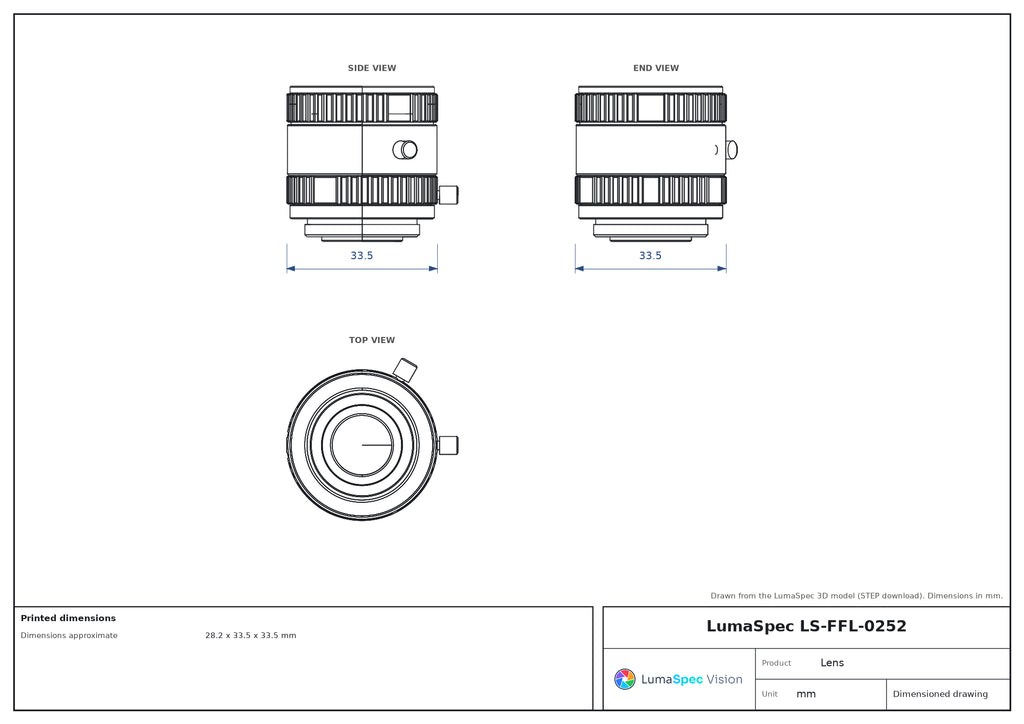

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Lens series, C-mount (S36) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0250 | 8 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0251 | 12 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0253 | 25 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0254 | 50 mm | $1,309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0249 | 5 mm | $1,529.00 Quote | Lead time confirmed with your quote | View |
