Machine vision lenses

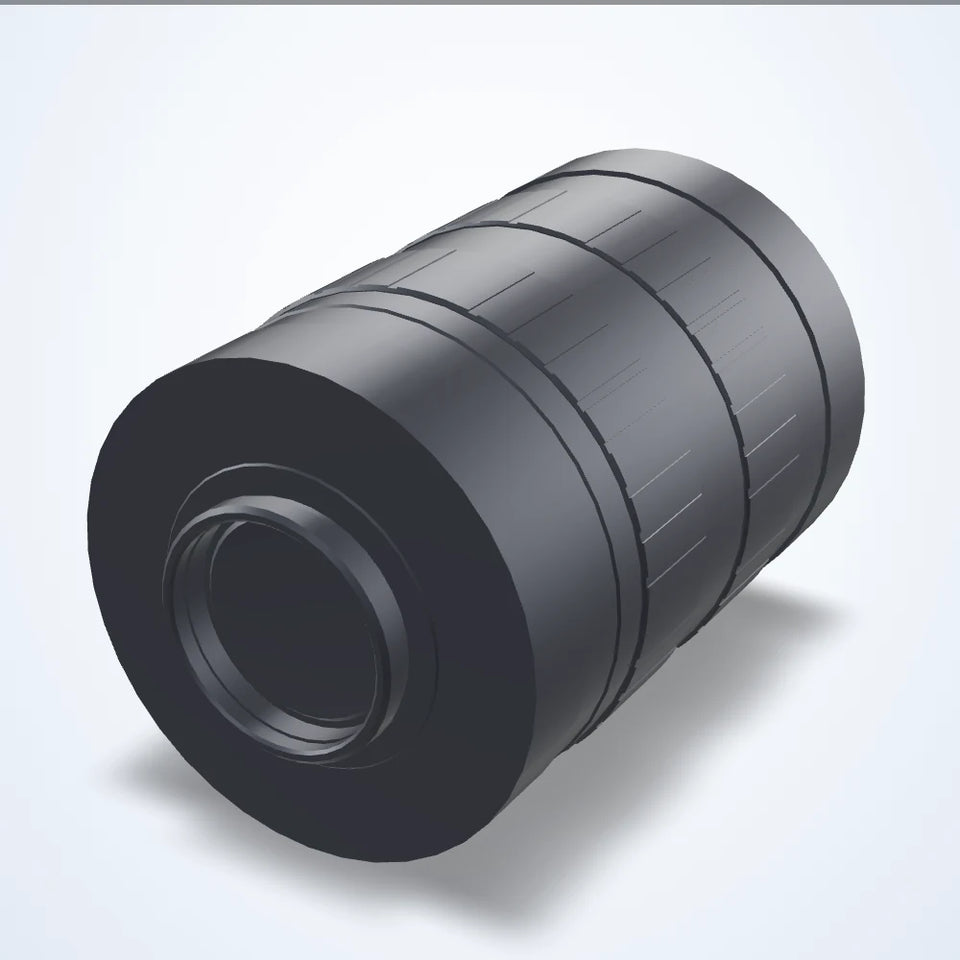

Lens series, C-mount (S14)
- 6 models
- from $279.00
- Series LS-FFL-S14
The Lens series, C-mount (S14) is a range of 6 machine vision lenses from LumaSpec Vision, from $279.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12.5 mm, 16 mm, 25 mm, 35 mm, 75 mm
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
All 6 models in the Lens series, C-mount (S14)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0103 | 16 mm | f/1.4 | 51 mm × 51 mm × 70.5 mm | 30.2° x 22.9° | $279.00quote | View |
| LS-FFL-0108 | 25 mm | f/1.4 | 51 mm × 51 mm × 75.5 mm | 20.8° x 15.7° | $279.00quote | View |
| LS-FFL-0113 | 35 mm | f/1.4 | 51 mm × 51 mm × 48.5 mm | 14.0° x 10.5° | $279.00quote | View |
| LS-FFL-0117 | f/1.8 | 9.7° x 17.3° | $349.00quote | View | ||
| LS-FFL-0121 | 75 mm | f/1.8 | 51 mm × 51 mm × 76 mm | 6.7° x 5.0° | $349.00quote | View |
| LS-FFL-0098 | 12.5 mm | f/1.4 | 51 mm × 51 mm × 68.5 mm | 38.0° x 29.0° | $409.00quote | View |
