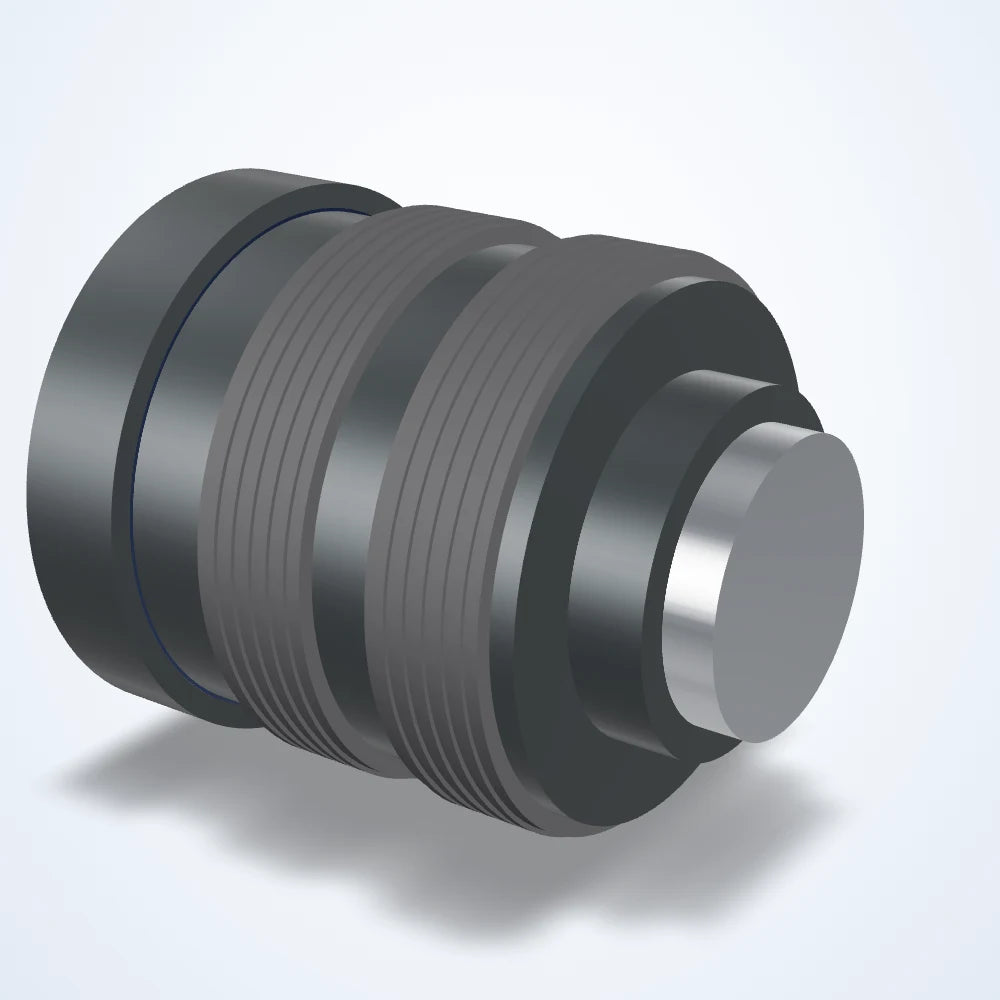

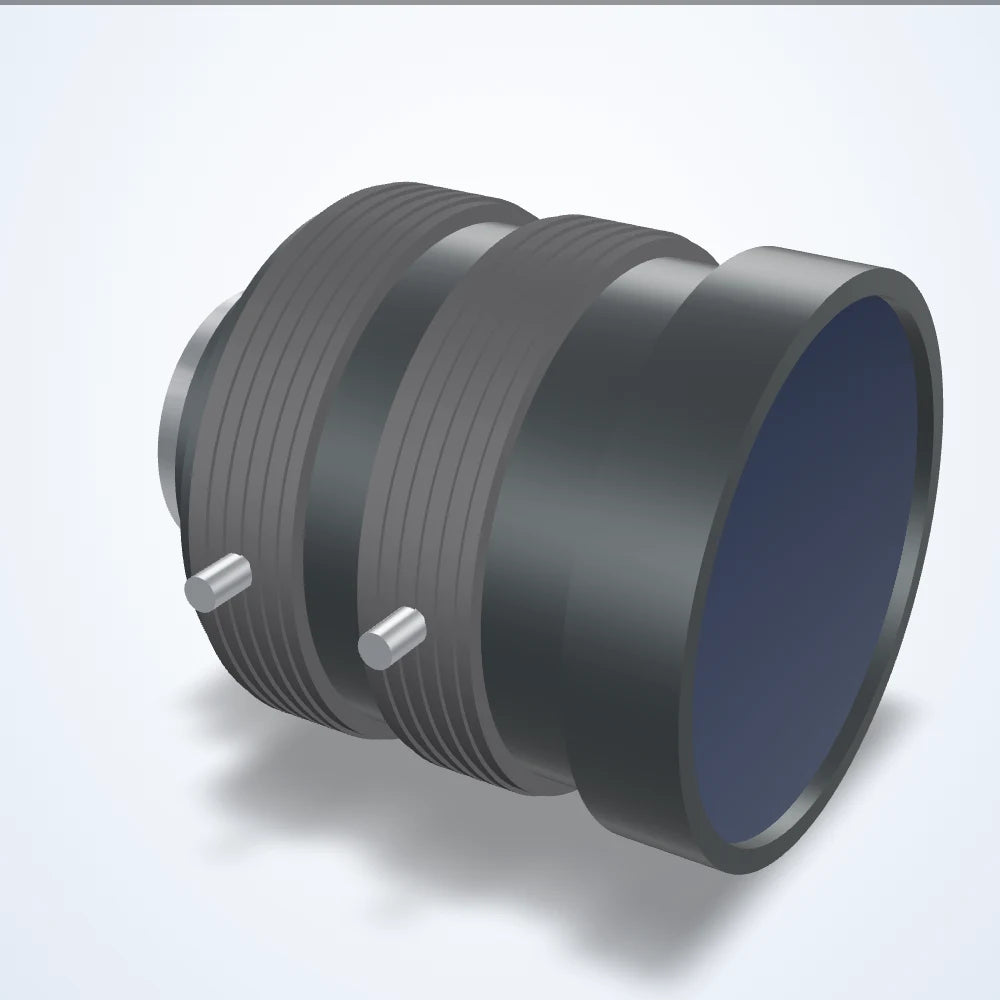

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
50 mm lens, 2/3", C-mount, front diameter 51 mm (LS-FFL-0117)
Model LS-FFL-0117
- MountC-mount
- Sensor2/3"
- Aperturef/1.8
- Resolution5
$349.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0117 |
|---|---|
| Angle of view @ 2/3″ | 9.7° x 17.3° |
| Distance between principle points | -32.32 mm |
| Exit pupil position | -49.93 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -1.87 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -34.19 mm |
| Spectrum | Visible |
| Thumb screw positions from flange | 33.9 mm and 16.7 mm |
| Thumb screw reach from axis | 28.1 mm |
Optics
| Aperture (max) | f/1.8 |
|---|---|
| Back focal distance | 17.81 mm (in air) |
| Back focal length | 17.81 mm |
| Filter thread | M49x0.75 |
| Flange focal distance | 17.526 mm (in air) |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | 0.08 |
Sensor and imaging
| Resolution (MP) | 5 |
|---|---|
| Sensor format (derived) | 2/3", as named in the product title |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

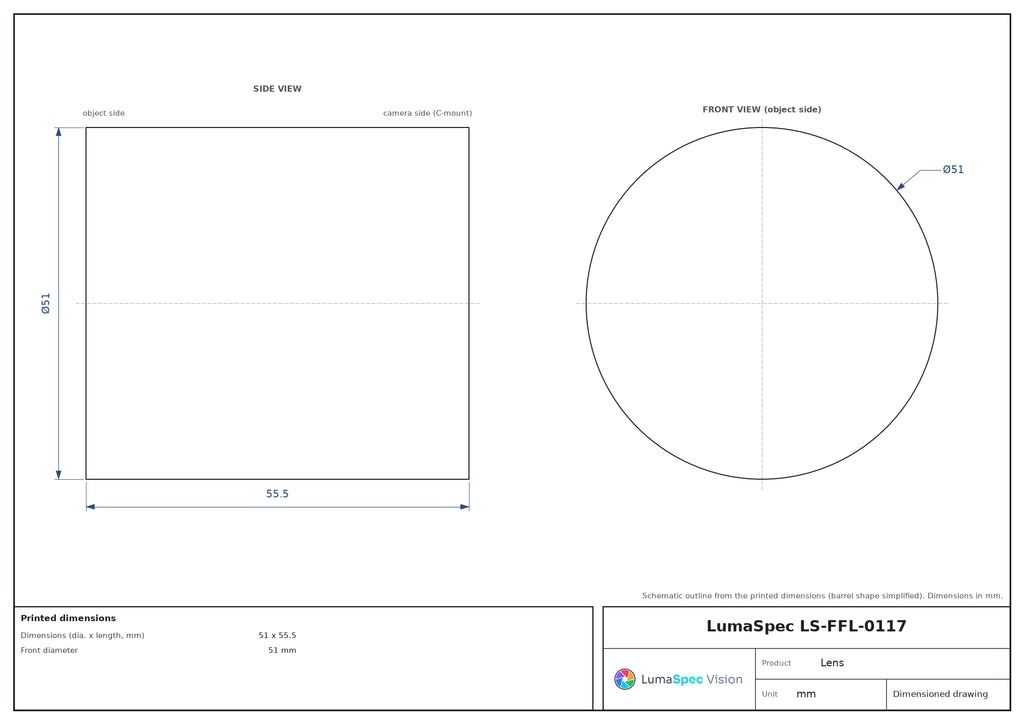

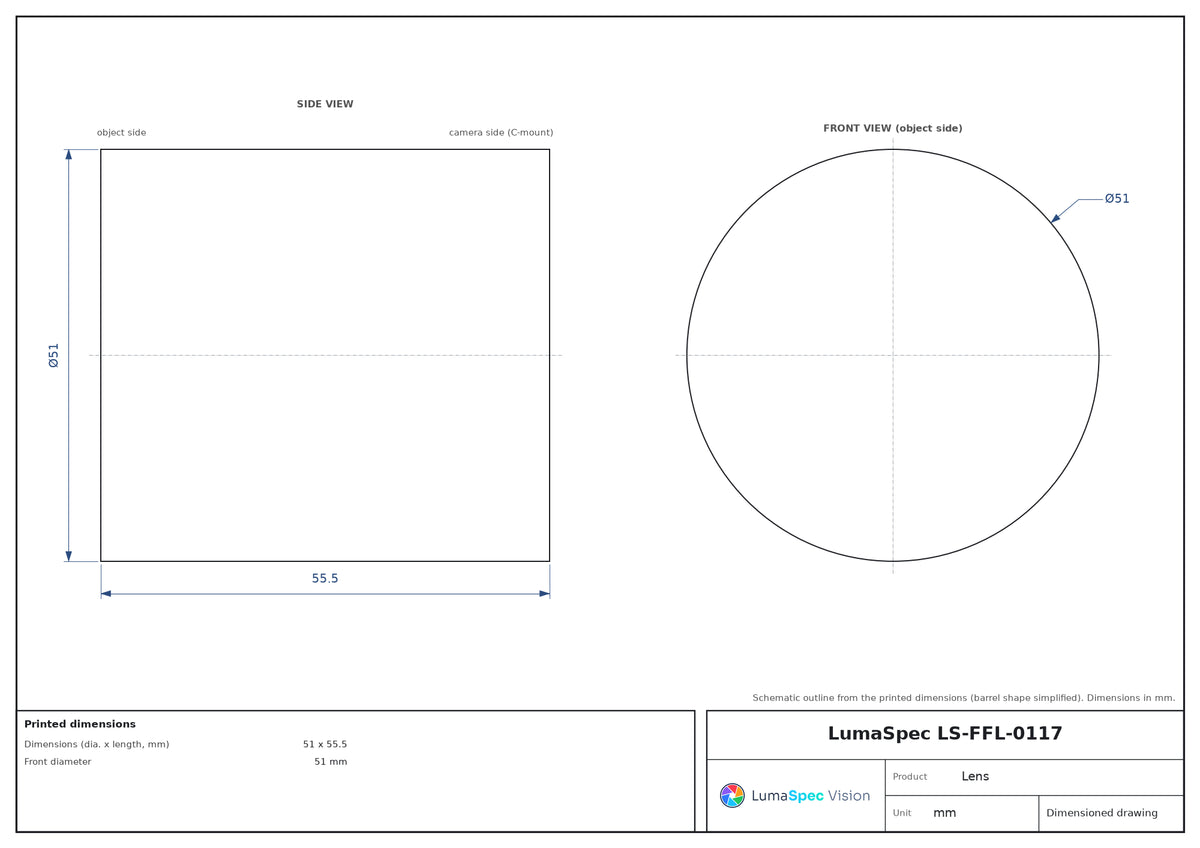

| Dimensions (dia. x length, mm) | 51 x 55.5 |
| Front diameter | 51 mm |
| Mount protrusion | 4 mm |
| Mount thread | 1-32UNF |
Other models in the Lens series, C-mount (S14) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0103 | 16 mm | $279.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0108 | 25 mm | $279.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0113 | 35 mm | $279.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0121 | 75 mm | $349.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0098 | 12.5 mm | $409.00 Quote | Lead time confirmed with your quote | View |
