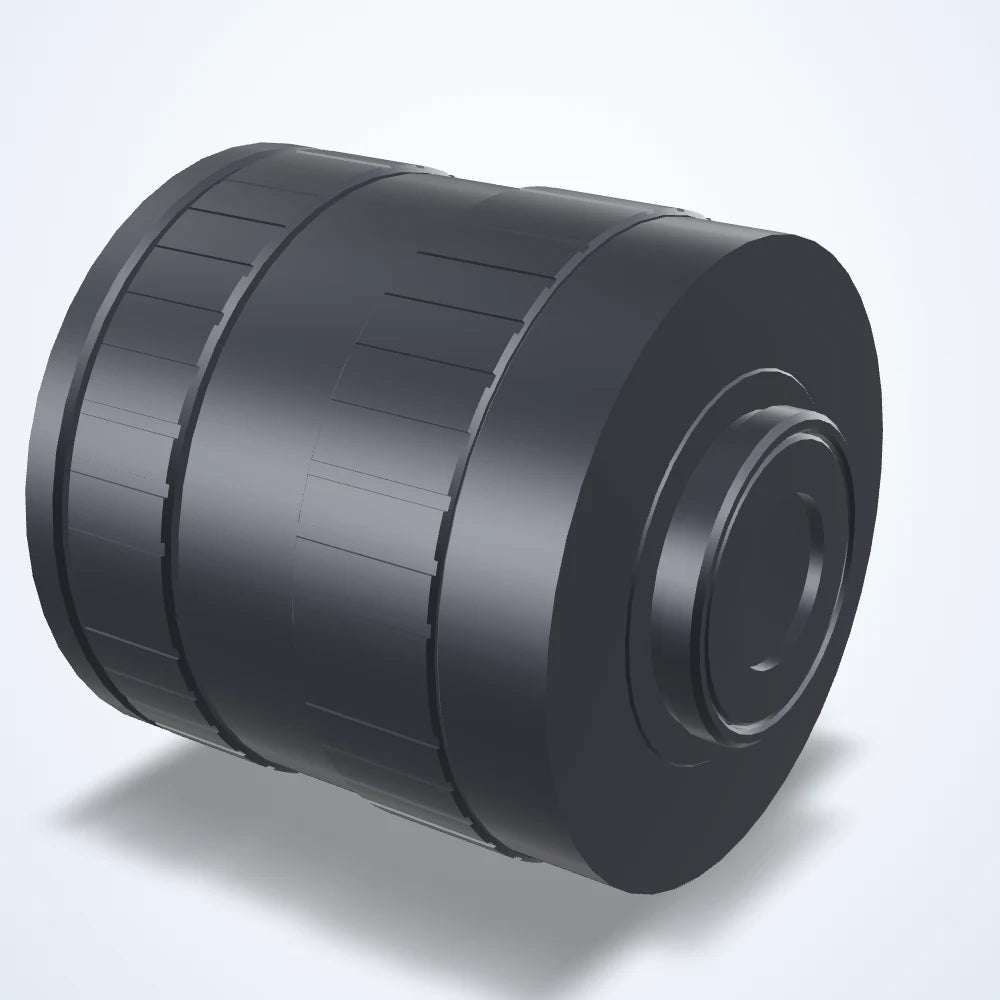

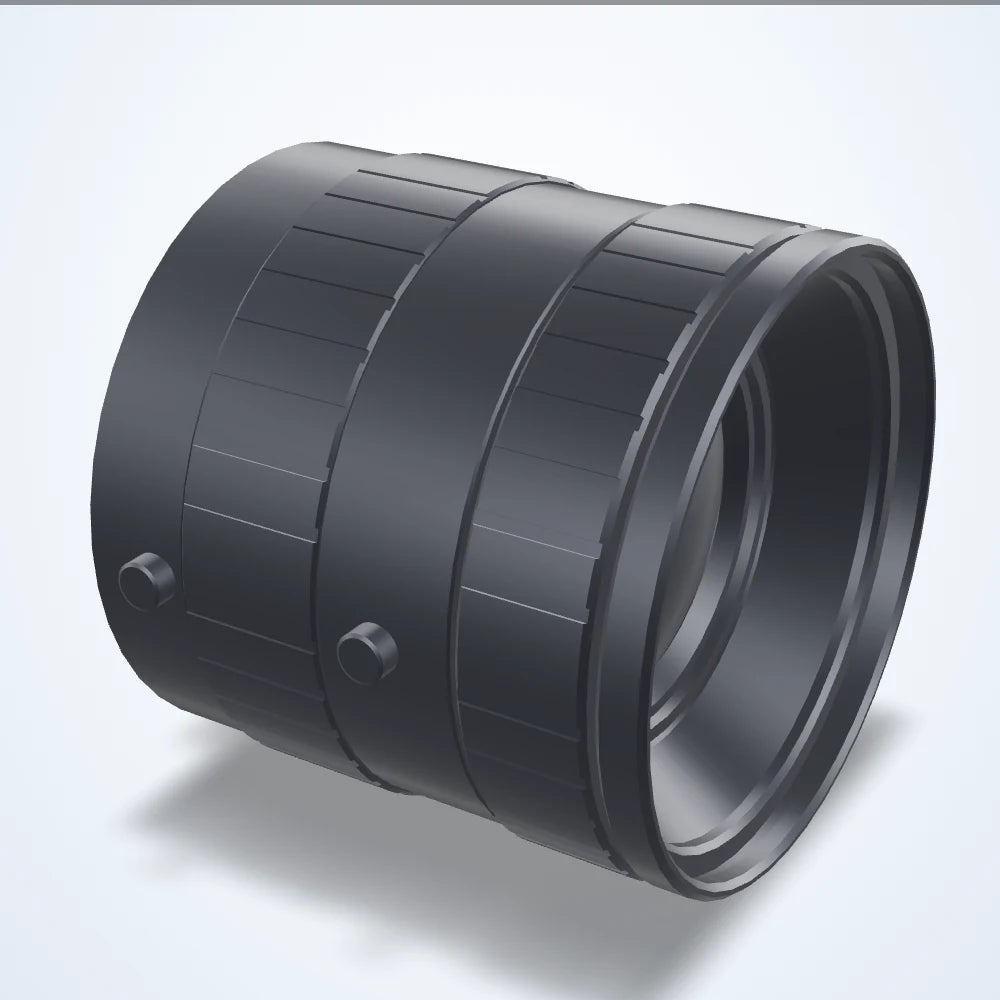

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
35 mm lens, 2/3", C-mount, front diameter 51 mm (LS-FFL-0113)
Model LS-FFL-0113
- Focal length35 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.4
- Resolution5
$279.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 200 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0113 |
|---|---|
| Minimum object distance | 200 mm |
| Angle of view @ 2/3″ | 14.0° x 10.5° |
| Distance between principle points | -16.94 mm |
| Exit pupil position | -37.12 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -1.27 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -18.21 mm |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 14.99 mm |
| Filter thread | M49-0.75 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | 0.07 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Dimensions | 51 mm × 51 mm × 48.5 mm |
| Front diameter | 51 mm |
| Weight | 185 Grams |
LS-FFL-0113
See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 35 mm
- Sensor format
- 2/3"
- Mount
- C-mount

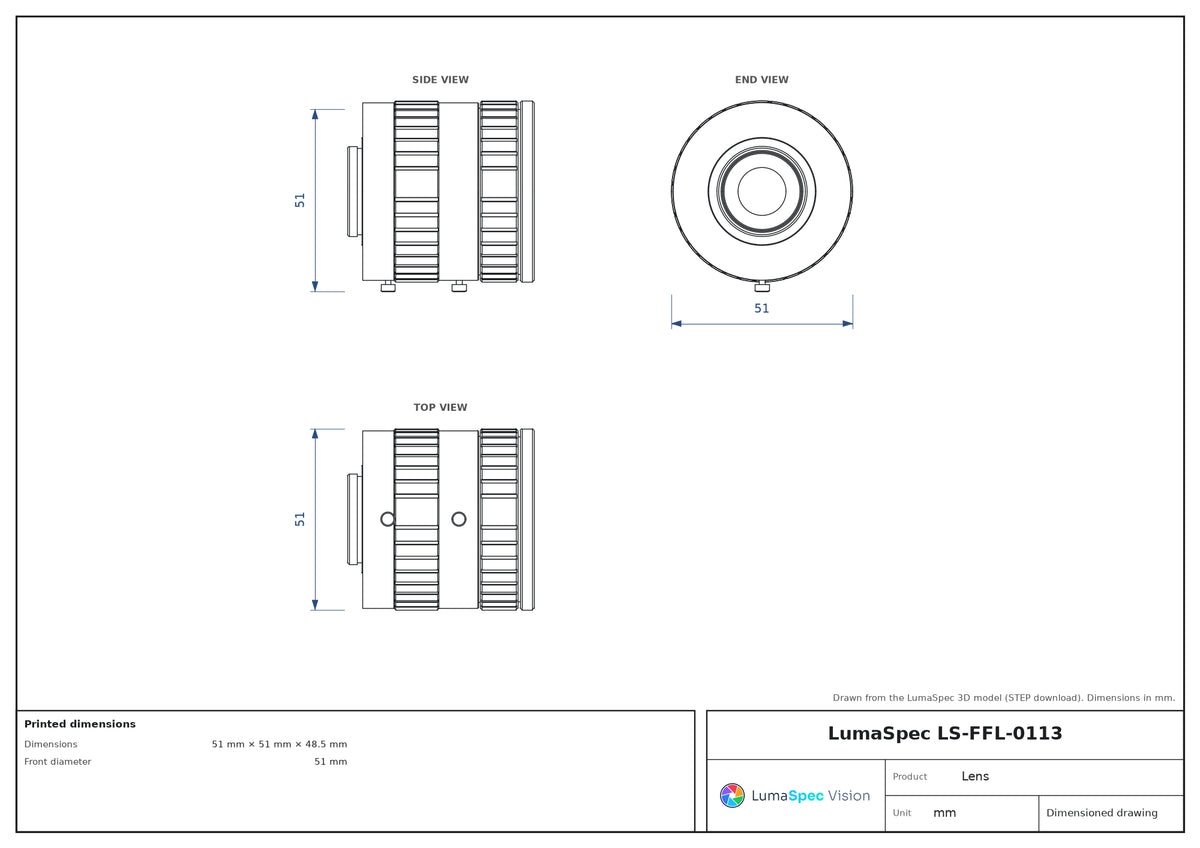

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
