Machine vision lenses

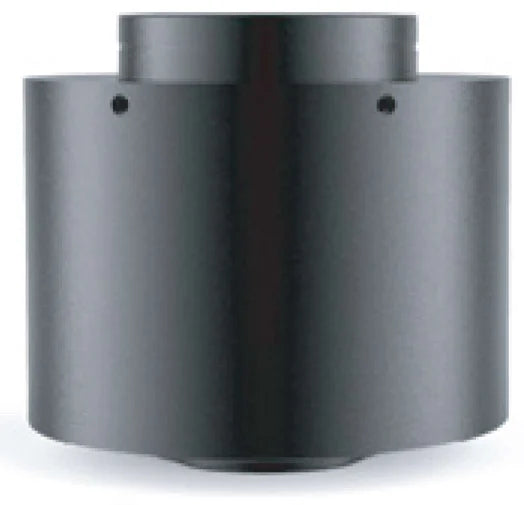

Motorized-Focus lenses (LS-FFL-S142)
- 9 models
- from $959.00
- Series LS-FFL-S142
The Motorized-Focus lenses (LS-FFL-S142) is a range of 9 machine vision lenses from LumaSpec Vision, from $959.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 9 mm, 2/3", 5 MP, C-mount, 12 mm, 2/3", 5 MP, C-mount, 16 mm, 2/3", 10 MP, C-mount, 21 mm, 1.2", 25 MP, C-mount, 25 mm, 2/3", 10 MP, C-mount, 35 mm, 1.2", 25 MP, C-mount
- Type
- Motorized focus
- Mount
- C-mount
- Resolution
- 5 MP, 6-10 MP, 16-25 MP
- Image circle
- Up to 8 mm, 11-16 mm, 16-22 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm
- Sensor format
- 2/3", 1.1" - 1.2"
Features
- Quick: one command or key press completes autofocus
- Accurate: consistent focus every time
- Easy: no training or experience needed
- Flexible: refocus with one key when working distance or object changes; alert function
- Random & multi-inspection: mixed, real-time and mobile inspection
- Compatible & extended: mainstream cameras and servo drivers, SDK for third-party systems
- Remote control
- Macro: short M.O.D. 80 mm
Typical uses
- Industrial machine vision inspection
- Automotive parts inspection (many sizes)
- Medical production lines
- Dust-free environments
- Restricted production lines where manual on-site focusing is limited
- Robot-arm inspection
All 9 models in the Motorized-Focus lenses (LS-FFL-S142)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1509 | 46.5 x 60 mm | 25 MP | 21 mm | F2.0 | $959.00 | View |
| LS-FFL-1510 | dia. 82 x 65 mm | 25 MP | 35 mm | F2.4-16 | $959.00 | View |
| LS-FFL-1511 | 42.3 x 60 mm | 5 MP | 9 mm | F2.0 | $959.00 | View |
| LS-FFL-1512 | 51.07 x 60 mm | 5 MP | 12 mm | F1.8 | $959.00 | View |
| LS-FFL-1513 | 45.1 x 60 mm | 10 MP | 16 mm | F2.0 | $959.00 | View |
| LS-FFL-1514 | 45.1 x 60 mm | 10MP | 25 mm | F2.0 | $959.00 | View |
| LS-FFL-1515 | dia. 30.8 x 40.55 mm | 10MP | 16.0 +/-0.3 mm (at 0.20 m) | F2.0 | $959.00 | View |
| LS-FFL-1516 | dia. 30.8 x 37.15 mm | 10MP | 25.0 +/-0.3 mm (at 0.25 m) | F2.0 | $959.00 | View |
| LS-FFL-1517 | dia. 59.4 x 42 mm | 10MP | 25.0 +/-0.3 mm | F2.0 | $959.00 | View |
