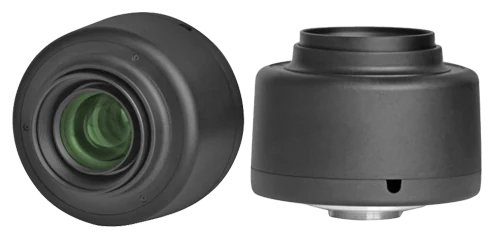

35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1510)
  • 35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1510)
  • LS-FFL-1510 dimensions (mm)

Machine vision lenses

35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1510)

Model LS-FFL-1510

  • Focal length35 mm
  • MountC-mount
  • Sensor1.2"
  • ApertureF2.4-16
  • Resolution25 MP
$959.00

Ships in 2-3 weeks

0.56 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1510)LS-FFL-1510

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

35 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens. 35 mm 1.2" 25 megapixel macro machine vision lens with motorized focus and iris and remote autofocus driven by the passive random-access autofocus algorithm; minimum object distance 80 mm, accurate autofocus within 7 s or speed mode within 2 s, 255 focus presets. For production lines where manual on-site focusing is impractical. At a glance: focal length 35 mm; format 1.2" (dia. 19.3); resolution 25 MP; aperture range F2.4-16; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1510
Format1.2" (dia. 19.3)
Angle of view (1.2", DxHxV)29.8 x 24 x 18.5 deg
Angle of view (1", DxHxV)24 x 20 x 14.8 deg
Angle of view (2/3", DxHxV)17.1 x 13.6 x 10.2 deg
Presets255 motorized-focus preset positions, recall within 0.1 s
M.B.L.12.67 mm
Aliaspassive autofocus-RC-M-12FA3524
TypeMacro

Optics

Focal length35 mm
Aperture rangeF2.4-16
Focus range80 mm
Iris controlMotorized
Focus controlMotorized (auto-focus)
Distortion0.06%
Relative illumination80%
Back focal length (mechanical)12.67 mm
Autofocus speedAccurate mode within 7 s, speed mode within 2 s
Magnification by WD (mm)80: 0.4141; 90: 0.3722; 100: 0.3383; 150: 0.2276; 200: 0.1729; 250: 0.1389; 300: 0.1163; 350: 0.1002; 400: 0.0878; 450: 0.0773; 500: 0.0705; 550: 0.0637; 600: 0.0589; 700: 0.0495; 800: 0.0434; 900: 0.0391; 1000: 0.0348
ApertureF2.4-16
Magnification0.4141x at 80 mm to 0.0348x at 1000 mm WD
Mechanical back focal length12.67 mm

Sensor and imaging

Resolution25 MP

Interfaces and I/O

Control interfaceUSB
InterfaceUSB
Weight (incl. cable)327 g

Environment and compliance

Operating temperature-20 ~ +70 °C
Working temperature-20 to +70 C

Mechanical

MountC
Filter sizeM46 x 0.75
Weight327 g
Sizedia. 82 x 65 mm
Shipping weight (estimated)0.56 kg
