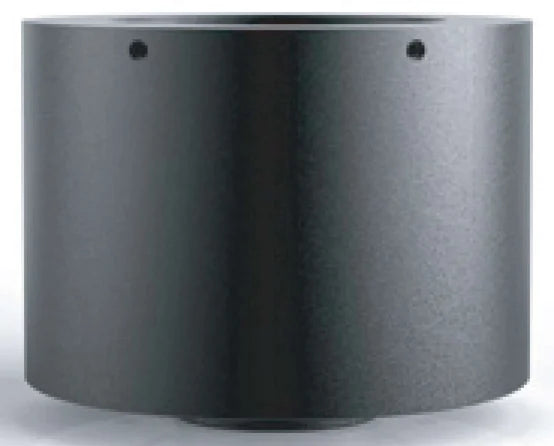

9 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1511)
  • 9 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1511)

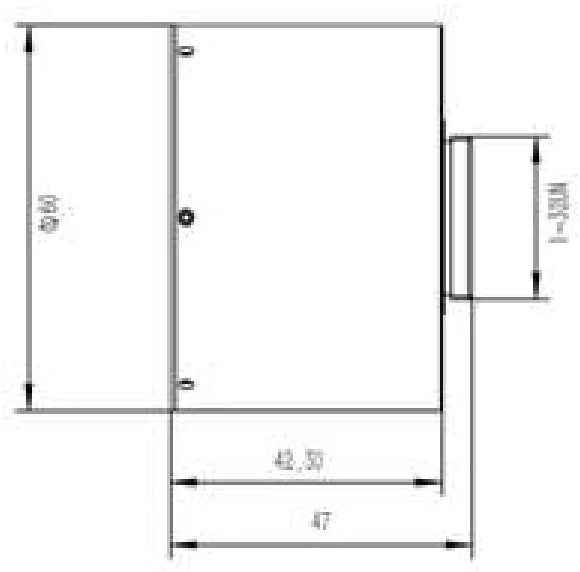

  • LS-FFL-1511 dimensions (mm)

Machine vision lenses

9 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1511)

Model LS-FFL-1511

  • Focal length9 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF2.0
  • Resolution5 MP
$959.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

9 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1511)LS-FFL-1511

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

9 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens. 9 mm 2/3" 5 MP lens with USB-controlled motorized focus and iris, supported by the passive random-access autofocus system for one-key or continuous ROI autofocus; working distance from 250 mm. At a glance: focal length 9 mm; format 2/3" (dia. 13 mm); resolution 5 MP; aperture F2.0; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1511
Aliaspassive autofocus-RC-M-23FA0920
Format2/3" (dia. 13 mm)
Angle of view (2/3", DxHxV)63.5 x 52.5 x 40.5 deg
Angle of view (1/1.8", DxHxV)52.9 x 44.8 x 30.2 deg
M.B.F.10.398 mm

Optics

Focal length9 mm
ApertureF2.0
Focus rangefrom 250 mm
Iris controlmotorized
Focus controlmotorized
Distortion<0.3%
Magnification0.034x at 250 mm to 0.0089x at 1000 mm WD
Mechanical back focal length10.393 mm

Sensor and imaging

Resolution5 MP

Interfaces and I/O

Control interfaceUSB
Cable length1500 mm
InterfaceUSB

Environment and compliance

Working temperature-20 to +70 C
Operating temperature-20 to +70 °C

Mechanical

MountC
Filter sizeM40.5 x 0.75
Size42.3 x 60 mm
Weight203.5 g (with cable)
Shipping weight (estimated)0.38 kg
