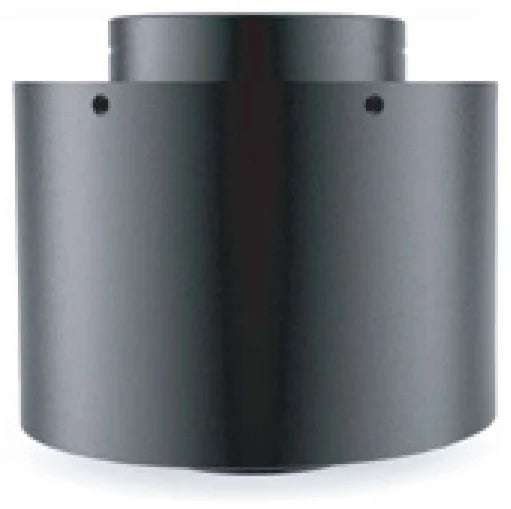

12 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1512)
  • 12 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1512)

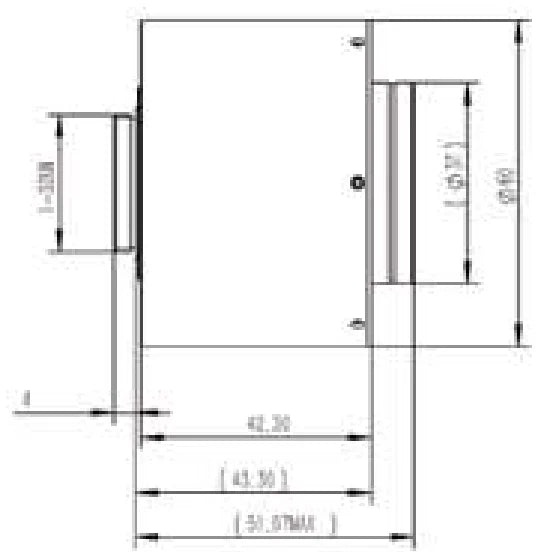

  • LS-FFL-1512 dimensions (mm)

Machine vision lenses

12 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1512)

Model LS-FFL-1512

  • Focal length12 mm
  • MountC-mount
  • Sensor2/3"
  • ApertureF1.8
  • Resolution5 MP
$959.00

Ships in 2-3 weeks

0.45 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

12 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens (LS-FFL-1512)LS-FFL-1512

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

12 mm, 2/3", 5 MP, C-mount Motorized-Focus Lens. 12 mm 2/3" 5 MP lens with USB-controlled motorized focus and iris, supported by the passive random-access autofocus system for one-key or continuous ROI autofocus; working distance from 250 mm. At a glance: magnification 0.046x at 250 mm to 0.012x at 1000 mm WD; focal length 12 mm; format 2/3" (dia. 13 mm); resolution 5 MP; aperture F1.8.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1512
Aliaspassive autofocus-RC-M-23FA18
Format2/3" (dia. 13 mm)
Angle of view (2/3", DxHxV)50.7 x 40.3 x 30.8 deg
Angle of view (1/1.8", DxHxV)41.3 x 34.1 x 23.3 deg
M.B.F.12.818 mm

Optics

Focal length12 mm
ApertureF1.8
Focus rangefrom 250 mm
Iris controlmotorized
Focus controlmotorized (autofocus)
Distortion<0.1%
Magnification0.046x at 250 mm to 0.012x at 1000 mm WD
Passive autofocus codepassive autofocus-RC-M-23FA1218
Mechanical back focal length12.818 mm

Sensor and imaging

Resolution5 MP

Interfaces and I/O

Control interfaceUSB
Cable length1500 mm
InterfaceUSB

Environment and compliance

Working temperature-20 to +70 C
Operating temperature-20 to +70 °C

Mechanical

MountC
Filter sizeM34.6 x 0.5
Size51.07 x 60 mm
Weight253 g (with cable)
Shipping weight (estimated)0.45 kg
