Machine vision lenses
16 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens (LS-FFL-1515)
Model LS-FFL-1515
- Focal length16.0 +/-0.3 mm (at 0.20 m)
- MountC-mount
- Sensor2/3"
- ApertureF2.0
- Resolution10MP
$959.00
Ships in 2-3 weeks
0.66 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
16 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens. 16 mm, 10 megapixel C-mount machine vision lens for 2/3" sensors with a geared stepper-motor focus drive for remote focusing where manual focusing on site is not possible. At a glance: focal length 16.0 +/-0.3 mm (at 0.20 m); format 2/3"; resolution 10MP; aperture F2.0; mount C.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1515 |
|---|---|
| Format | 2/3" |
| Angle of view (2/3", DxHxV) | 36.5 x 29.6 x 22.5 deg |
| Angle of view (1/2", DxHxV) | 27.1 x 21.8 x 16.5 deg |
| CRA | <9 deg |
| Zoom operation | fixed |
Optics
| Image circle | dia. 13.00 mm (max) |
|---|---|
| Focal length | 16.0 +/-0.3 mm (at 0.20 m) |
| Aperture | F2.0 |
| System TTL | 58.07 +/-0.3 mm |
| Distortion | < -0.1% |
| Mechanical back focus | 13.52 mm (min) |
| M.O.D. | 0.07 m |
| Iris operation | manual |
| Focus operation | manual |
| Focus motor | 2-phase stepper, rated 3.5 V DC, 0.188 deg/step, 96:1 reduction |
Sensor and imaging
| Resolution | 10MP |
|---|
Light
| Illumination | 80.0% |
|---|---|
| Wavelength | 420-700 nm |
Environment and compliance
| Operating temperature | -20~+70°C |
|---|

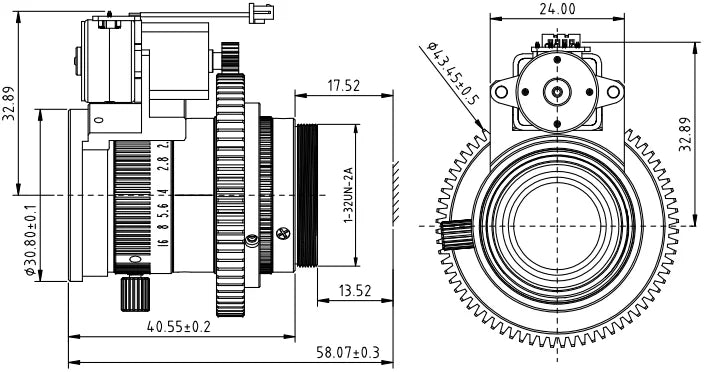

Mechanical
| Size | dia. 30.8 x 40.55 mm |
|---|---|
| Mount | C |
| Shipping weight (estimated) | 0.66 kg |
Other models in the Motorized-Focus lenses (LS-FFL-S142) series
See all 9 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1509 | 21 mm, 1.2", 25 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1510 | 35 mm, 1.2", 25 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1511 | 9 mm, 2/3", 5 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1512 | 12 mm, 2/3", 5 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1513 | 16 mm, 2/3", 10 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1514 | 25 mm, 2/3", 10 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1516 | 25 mm, 2/3", 10 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
| LS-FFL-1517 | 25 mm, 2/3", 10 MP, C-mount | $959.00 | Ships in 2-3 weeks | View |
