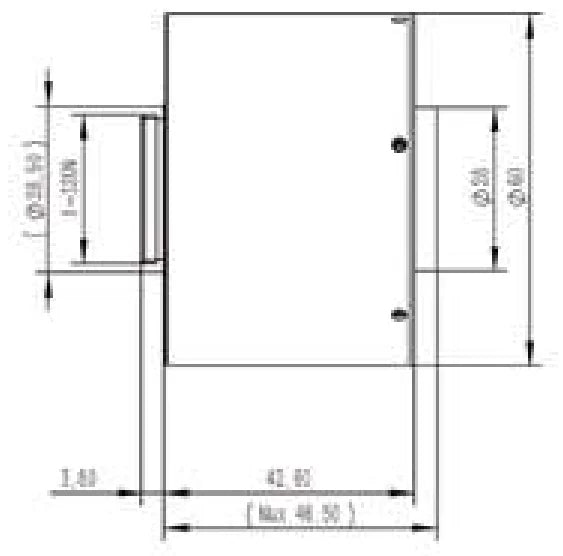

  • LS-FFL-1509 dimensions (mm)

Machine vision lenses

21 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1509)

Model LS-FFL-1509

  • Focal length21 mm
  • MountC-mount
  • Sensor1.2"
  • ApertureF2.0
  • Resolution25 MP
$959.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

21 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens (LS-FFL-1509)LS-FFL-1509

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

21 mm, 1.2", 25 MP, C-mount Motorized-Focus Lens. Random-access autofocus system: one command or key press focuses the lens automatically, for any scene and inspected object, giving a stable, consistent sharp image; supports mainstream industrial cameras and servo drivers through a cross-platform SDK. At a glance: focal length 21 mm; format 1.2" (19.3); resolution 25 MP; aperture F2.0; mount C.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1509
Aliaspassive autofocus-RC-M-12FA2120
Format1.2" (19.3)
Angle of view (1.2", DxHxV)49.85 x 38.3 x 33.1 deg
Angle of view (1", DxHxV)41.7 x 33.9 x 25.8 deg
Angle of view (2/3", DxHxV)29.7 x 23.7 x 17.9 deg

Optics

Focal length21 mm
Distortion0.1%
Mechanical back focal length12.288 mm
ApertureF2.0
M.O.D.200 mm
Filter threadM30.5 x 0.5
Iris controlMotorized
Focus controlMotorized

Sensor and imaging

Resolution25 MP

Interfaces and I/O

InterfaceUSB

Environment and compliance

Operating temperature-20 to +70 °C

Mechanical

MountC
Size46.5 x 60 mm
Shipping weight (estimated)0.66 kg
