Machine vision lenses

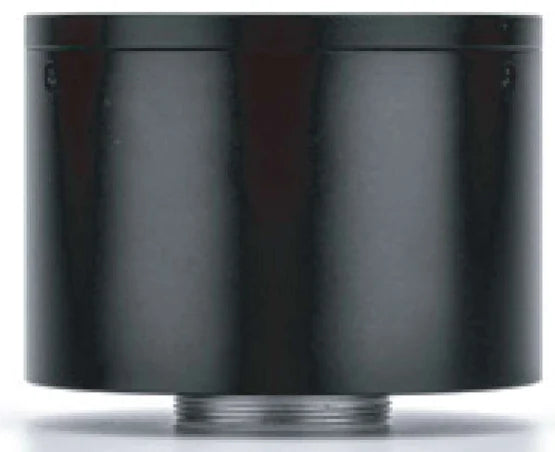

25 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens (LS-FFL-1514)

Model LS-FFL-1514

Focal length25 mm
MountC-mount
Sensor2/3"
ApertureF2.0
Resolution10MP

$959.00

Ships in 2-3 weeks

0.38 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens. Intelligent passive random autofocus lens system: a 25 mm, 10 megapixel macro machine vision lens for 2/3" cameras with motorized iris and auto-focus, one-key ROI focusing, remote control and 255 focus presets. At a glance: focal length 25 mm; format 2/3" (dia. 11); resolution 10MP; aperture F2.0; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1514
Format	2/3" (dia. 11)
Angle of view (2/3", DxHxV)	23.0 x 18.5 x 14.0 deg
Angle of view (1/1.8", DxHxV)	18.7 x 14.8 x 11.1 deg
Remote control (text)	RJ45 & 485 protocol
Presets (text)	255 positions, recall to focus within 0.1 s
M.B.L.	13.5-9.45 mm
Alias	passive autofocus-RC-M-23FA2520
Type	Macro

Optics

Focal length	25 mm
Aperture	F2.0
Focus range	80 mm
Iris control	motorized
Focus control	motorized (auto-focus)
Distortion	< 0.1%
Mechanical back focus	13.5-9.45 mm
Filter thread	M27 x 0.5
M.O.D. (text)	80 mm (macro)
Magnification	0.3348x at 80 mm to 0.0263x at 1000 mm WD
Mechanical back focal length	13.5-9.45 mm

Sensor and imaging

Resolution	10MP

Interfaces and I/O

Control interface	USB
USB cable length	1500 mm
Interface	USB
Weight (incl. cable)	202 g

Environment and compliance

Operating temperature	-20~+70°C
Working temperature	-20 to +70 C

Mechanical

Mount	C

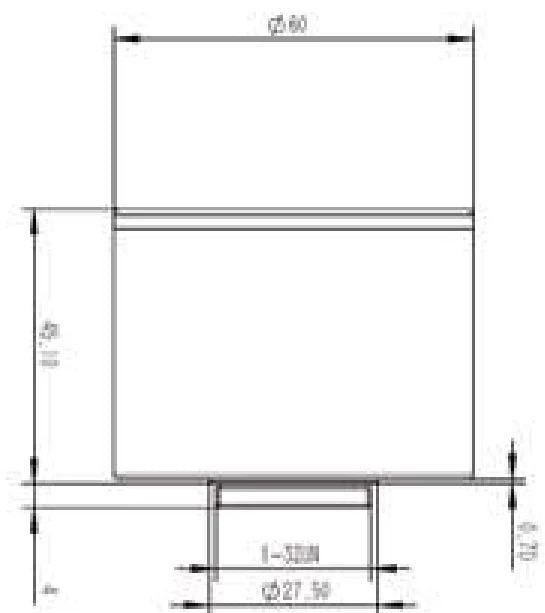

Size	45.1 x 60 mm
Weight	202 g
Filter size	M27 x 0.5
Shipping weight (estimated)	0.38 kg

Downloads

Datasheet (PDF)LS-FFL-1514 · 540 KB

Features

One-key ROI: auto-focus on any region of interest
Remote control by RJ45 and 485 protocol
Macro: short M.O.D. 80 mm
255 preset positions, recall to focus within 0.1 s
One-key ROI (region of interest) autofocus
Remote control
Fast autofocus: mechanical stepper motor, 3-7 s depending on distance
Quick: one command or key press completes autofocus

Applications

Inspection of various object sizes
Medical production lines
Dust-free environments
Restricted production lines where manual focusing on site is limited
Robot-mounted inspection
Objects of various sizes
