Machine vision lenses

25 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens (LS-FFL-1516)

Model LS-FFL-1516

Focal length25.0 +/-0.3 mm (at 0.25 m)
MountC-mount
Sensor2/3"
ApertureF2.0
Resolution10MP

$959.00

Ships in 2-3 weeks

0.66 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

25 mm, 2/3", 10 MP, C-mount Motorized-Focus Lens. 25 mm, 10 megapixel C-mount machine vision lenses for 2/3" sensors with remote-controlled (RJ45) motorized focus, for lines where manual focusing on site is not possible. At a glance: focal length 25.0 +/-0.3 mm (at 0.25 m); format 2/3"; resolution 10MP; aperture F2.0; mount C.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-FFL-1516
Format	2/3"
Angle of view (2/3", DxHxV)	23.0 x 18.5 x 14.0 deg
Angle of view (1/2", DxHxV)	17.0 x 13.6 x 10.2 deg
CRA	<10 deg
Zoom operation	fixed

Optics

Image circle	dia. 13.00 mm (max)
Focal length	25.0 +/-0.3 mm (at 0.25 m)
Aperture	F2.0
System TTL	54.65 +/-0.3 mm
Distortion	< -0.1%
Mechanical back focus	13.5-9.45 mm
M.O.D.	0.08 m
Iris operation	manual
Focus operation	motorized
Focus motor	2-phase stepper, rated 3.5 V DC, 0.188 deg/step, 96:1 reduction

Sensor and imaging

Resolution	10MP

Light

Illumination	80.0%
Wavelength	420-700 nm

Environment and compliance

Operating temperature	-20~+70°C

Mechanical

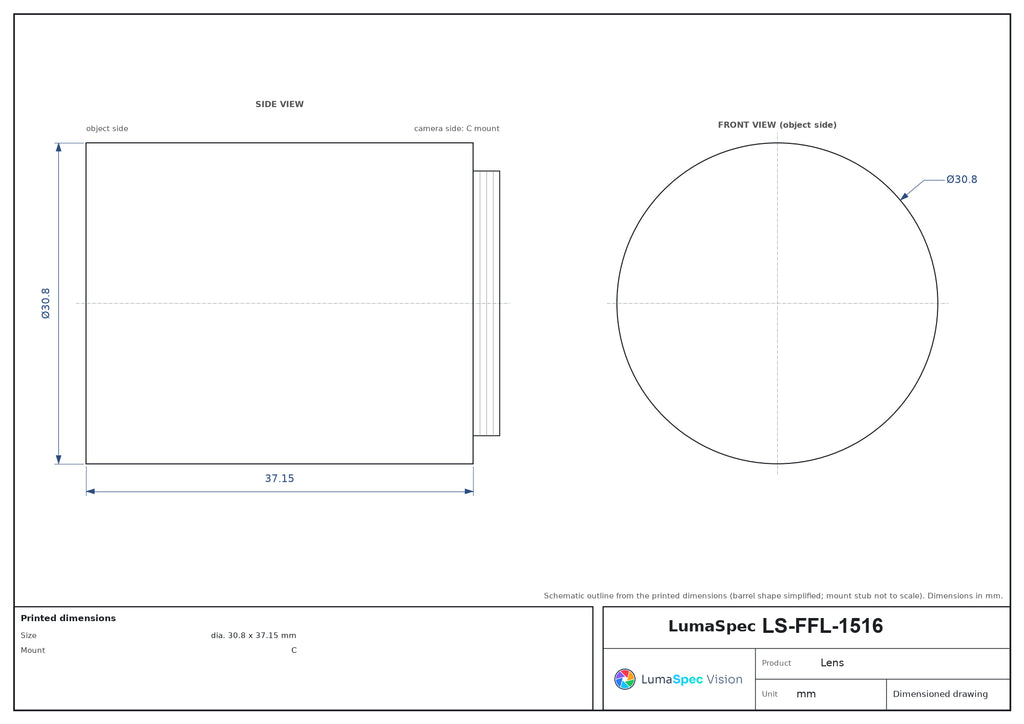

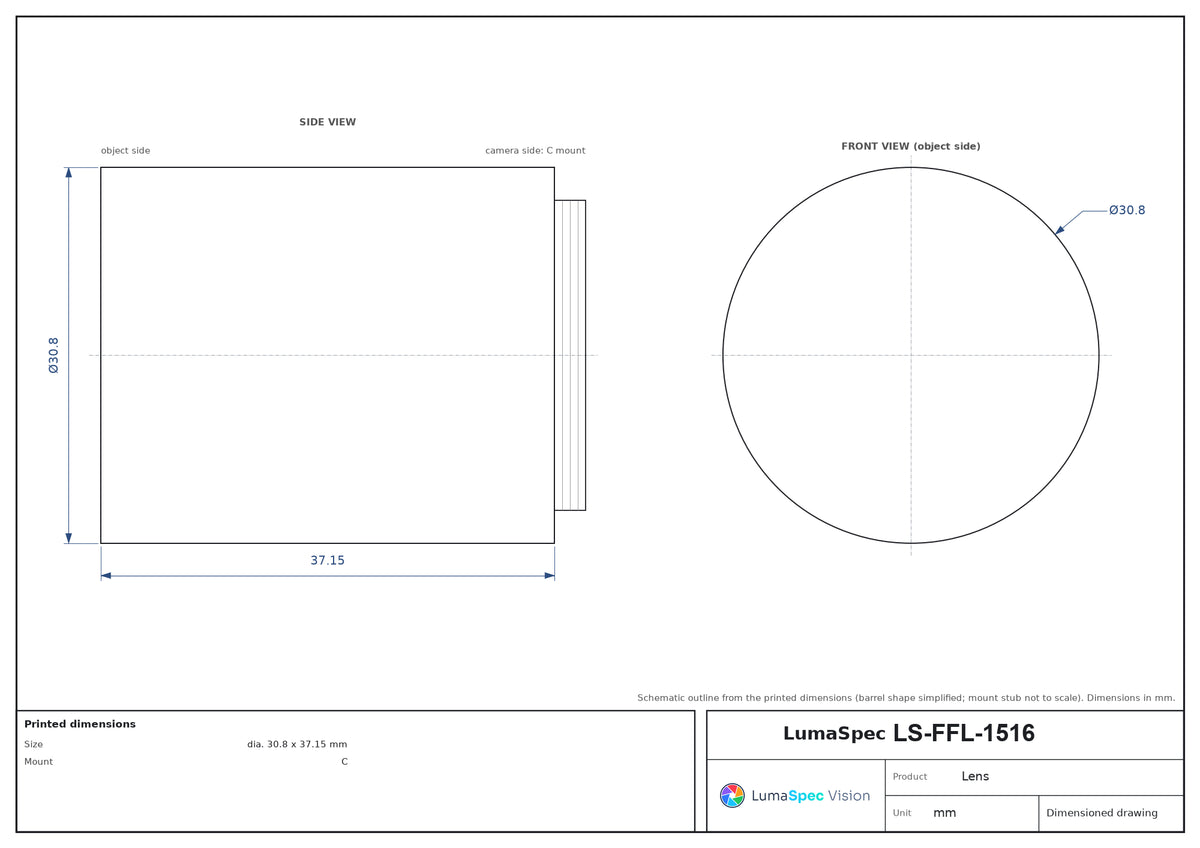

Size	dia. 30.8 x 37.15 mm
Mount	C
Shipping weight (estimated)	0.66 kg

Photo shows lenses of this series; see the specifications and drawing for this model.
