Machine vision lenses

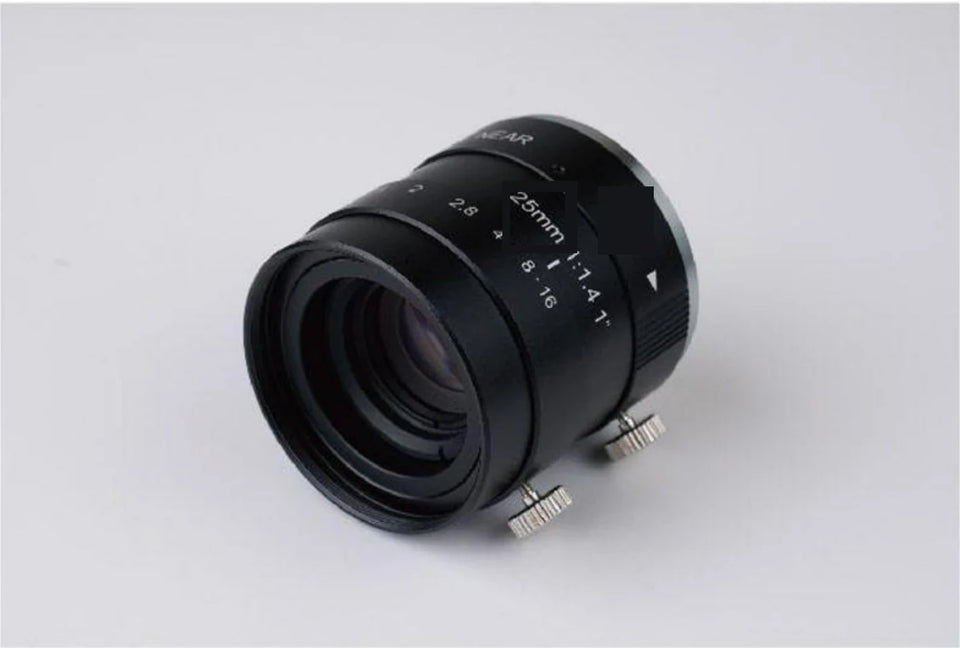

Fixed lens for FA, 1" 5MP (LS-FFL-S114)
- 6 models
- from $299.00
- Series LS-FFL-S114
The Fixed lens for FA, 1" 5MP (LS-FFL-S114) is a range of 6 machine vision lenses from LumaSpec Vision, from $299.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12.5 mm, 1", C-Mount, 16 mm, 1", C-Mount, 25 mm, 1", C-Mount, 35 mm, 1", C-Mount, 50 mm, 1", C-Mount, 75 mm, 1", C-Mount
- Mount
- C-mount
- Resolution
- 5 MP
- Image circle
- 11-16 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1"
Features
- 5MP, suitable for 2MP, 3MP, 5MP cameras
- Aperture manually adjustable, C mount
- High relative illumination, big aperture
- TV distortion <0.1%
- Focus range from 0.1 m to infinity
Typical uses
- Liquid crystal, semiconductor: count - SD card number calculation
- Electronic component: blemish / stain - LED appearance inspection
- Electronic: yes or no / identify - detect poor binding and lead breakage of motor wires
- Electronic equipment: geometrical measurement - check whether the battery shrapnel terminal welding position is poor
All 6 models in the Fixed lens for FA, 1" 5MP (LS-FFL-S114)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1347 | 12.5 mm, 1", C-Mount | 12.5 | F1.4-16 | 54.5° x 42° | $299.00 | View |
| LS-FFL-1349 | 25 mm, 1", C-Mount | 25 | F1.4-16 | 28.7° x 22.06° | $319.00 | View |
| LS-FFL-1348 | 16 mm, 1", C-Mount | 16 | F1.4-16 | 42.4° x 32.4° | $339.00 | View |
| LS-FFL-1350 | 35 mm, 1", C-Mount | 35 | F1.4-16 | 19.28° x 14.32° | $339.00 | View |
| LS-FFL-1351 | 50 mm, 1", C-Mount | 50 | F1.4-16 | 13.86° x 10.4° | $369.00 | View |
| LS-FFL-1352 | 75 mm, 1", C-Mount | 75 | F1.8-16 | 9.8° x 7.4° | $429.00 | View |
