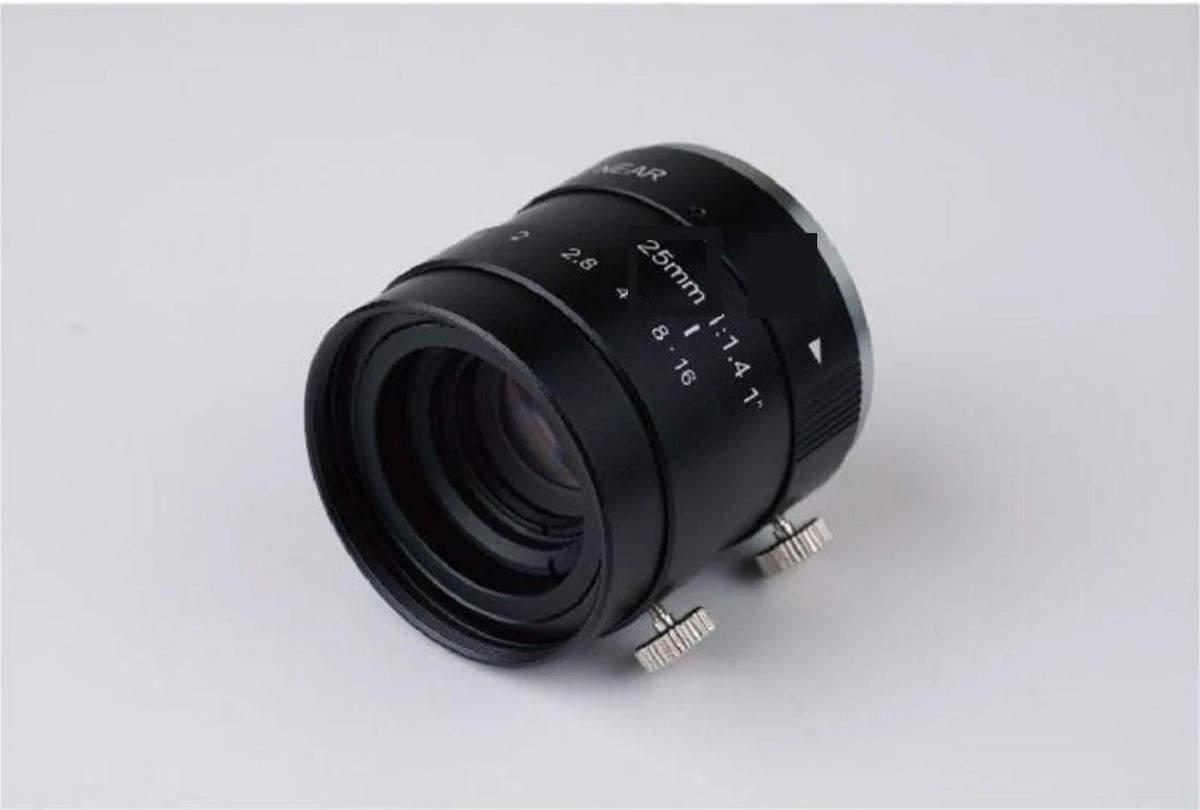

Representative photo of this series
Machine vision lenses
Fixed lens for FA, 1" 5MP, 12.5 mm, C-Mount (LS-FFL-1347)
Model LS-FFL-1347
- Focal length12.5 mm
- MountC-mount
- Sensor1"
- ApertureF1.4-16
- Resolution5MP
- Field of view54.5° x 42°
$299.00
Ships in 2-3 weeks
0.38 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
1" 5MP fixed FA lenses suitable for 2MP, 3MP and 5MP cameras, with manually adjustable aperture, C-mount, high relative illumination, TV distortion <0.1% and focus range from 0.1 m to infinity.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1347 |
|---|---|
| F/NO | 1.4-16 |
| EFL | 12.5mm |
| MOD | 0.1m |
Optics
| Distortion | <0.1% |
|---|---|
| Image size | 1" |
| Image size (dia.) | 1" |
| Field of view angle 1" | 54.5° x 42° |
| Field of view angle 2/3" | 38.5° x 29.1° |
| Field of view angle 1/2" | 28.8° x 21.7° |
| Distortion (TV) 1" | <1.8% |
| Focal length (mm) | 12.5 |
| Aperture | F1.4-16 |
Sensor and imaging
| Resolution | 5MP |
|---|---|
| Sensor format | 1" |

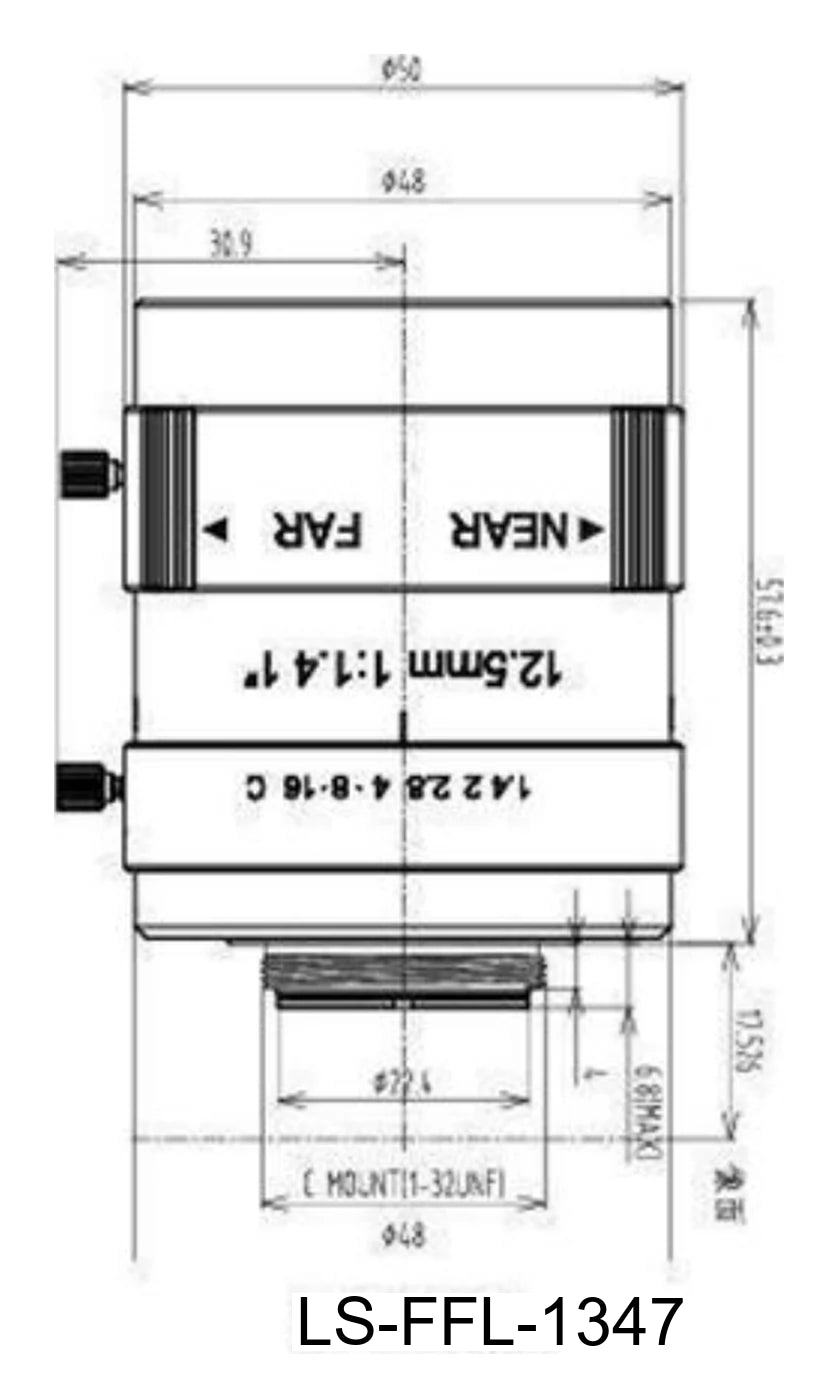

Mechanical
| Mount | C-Mount |
|---|---|
| Filter size | M46×P0.75 |
| Shipping weight | 0.38 kg |
Other models in the Fixed lens for FA, 1" 5MP (LS-FFL-S114) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1349 | 25 mm, 1", C-Mount | $319.00 | Ships in 2-3 weeks | View |
| LS-FFL-1348 | 16 mm, 1", C-Mount | $339.00 | Ships in 2-3 weeks | View |
| LS-FFL-1350 | 35 mm, 1", C-Mount | $339.00 | Ships in 2-3 weeks | View |
| LS-FFL-1351 | 50 mm, 1", C-Mount | $369.00 | Ships in 2-3 weeks | View |
| LS-FFL-1352 | 75 mm, 1", C-Mount | $429.00 | Ships in 2-3 weeks | View |
