Machine vision lenses

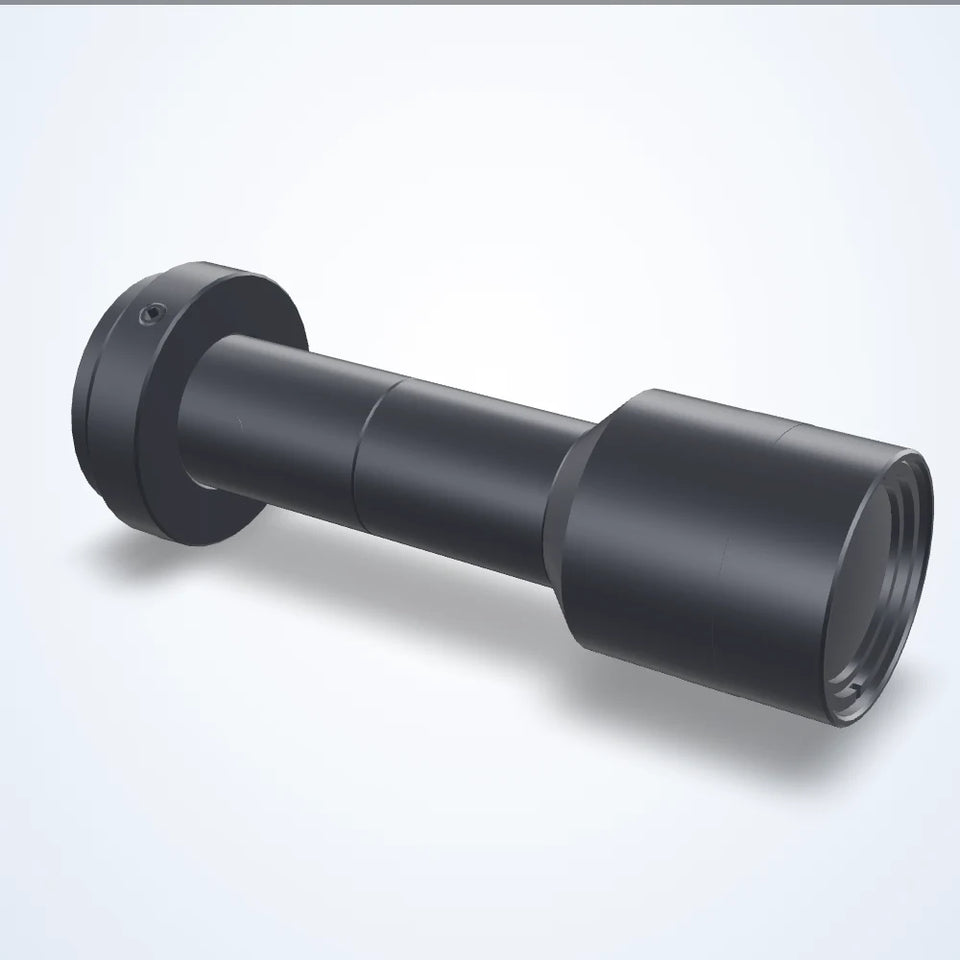

Lens series, C-mount (S01)

25 models
from $579.00
Series LS-FFL-S01

The Lens series, C-mount (S01) is a range of 25 machine vision lenses from LumaSpec Vision, from $579.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 25 models Series datasheet (PDF)

The series at a glance

Sizes / versions: 0.057 - 0.5×, 0.3×, 0.5×, 0.8X, 0.8×, 1×, 1.5×, 2×, 3.0X, 4×
Mount: C-mount
Image circle: Up to 8 mm, 8-11 mm, 11-16 mm
Sensor format: 2/3"

All 25 models in the Lens series, C-mount (S01)

						Link
LS-FFL-0037	1×	2	25 × 25 × 78 mm	17 mm	$579.00quote	View
LS-FFL-0040	2×	2	25 × 25 × 77.4 mm	17 mm	$579.00quote	View
LS-FFL-0033	0.5×	2	32 × 32 × 88.3 mm	17 mm	$589.00quote	View
LS-FFL-0035	0.8×	2	25 × 25 × 88.2 mm	17 mm	$589.00quote	View
LS-FFL-0007	1×	2	25 × 25 × 78 mm	17 mm	$629.00quote	View
LS-FFL-0010	2×	2	25 × 25 × 77.4 mm	17 mm	$629.00quote	View
LS-FFL-0042	4×	2	25 × 25 × 101.6 mm	17 mm	$629.00quote	View
LS-FFL-0003	0.5×	2	32 × 32 × 88.3 mm	17 mm	$639.00quote	View
LS-FFL-0005	0.8×	2	25 × 25 × 88.2 mm	17 mm	$639.00quote	View
LS-FFL-0036	1×	2	30 × 30 × 126.7 mm	17 mm	$669.00quote	View
LS-FFL-0041	4×	2	30 × 30 × 128.7 mm	17 mm	$669.00quote	View
LS-FFL-0032	0.5×	2	35 × 35 × 131.2 mm	17 mm	$699.00quote	View
LS-FFL-0034	0.8X	2		17.0 mm	$699.00quote	View
LS-FFL-0038	1.5×	2	30 × 30 × 128 mm	17 mm	$699.00quote	View
LS-FFL-0039	2×	2	30 × 30 × 126.4 mm	17 mm	$699.00quote	View
LS-FFL-0012	4×	2	25 × 25 × 101.6 mm	17 mm	$729.00quote	View
LS-FFL-0002	0.5×	2	35 × 35 × 131.2 mm	17 mm	$739.00quote	View
LS-FFL-0004	0.8×	2	30 × 30 × 126.1 mm	17 mm	$739.00quote	View
LS-FFL-0006	1×	2	30 × 30 × 126.7 mm	17 mm	$739.00quote	View
LS-FFL-0008	1.5×	2	30 × 30 × 128 mm	17 mm	$749.00quote	View
LS-FFL-0009	2×	2	30 × 30 × 126.4 mm	17 mm	$749.00quote	View
LS-FFL-0043	0.057 - 0.5×	5	59 × 59 × 93.1 mm	17 mm	$759.00quote	View
LS-FFL-0011	3.0X	2		17.0 mm	$839.00quote	View
LS-FFL-0031	0.3×	2	55 × 55 × 140.3 mm	17 mm	$909.00quote	View
LS-FFL-0001	0.3×	2	55 × 55 × 140.3 mm	17 mm	$999.00quote	View
