0.5× lens, 2/3", C-mount (LS-FFL-0033)

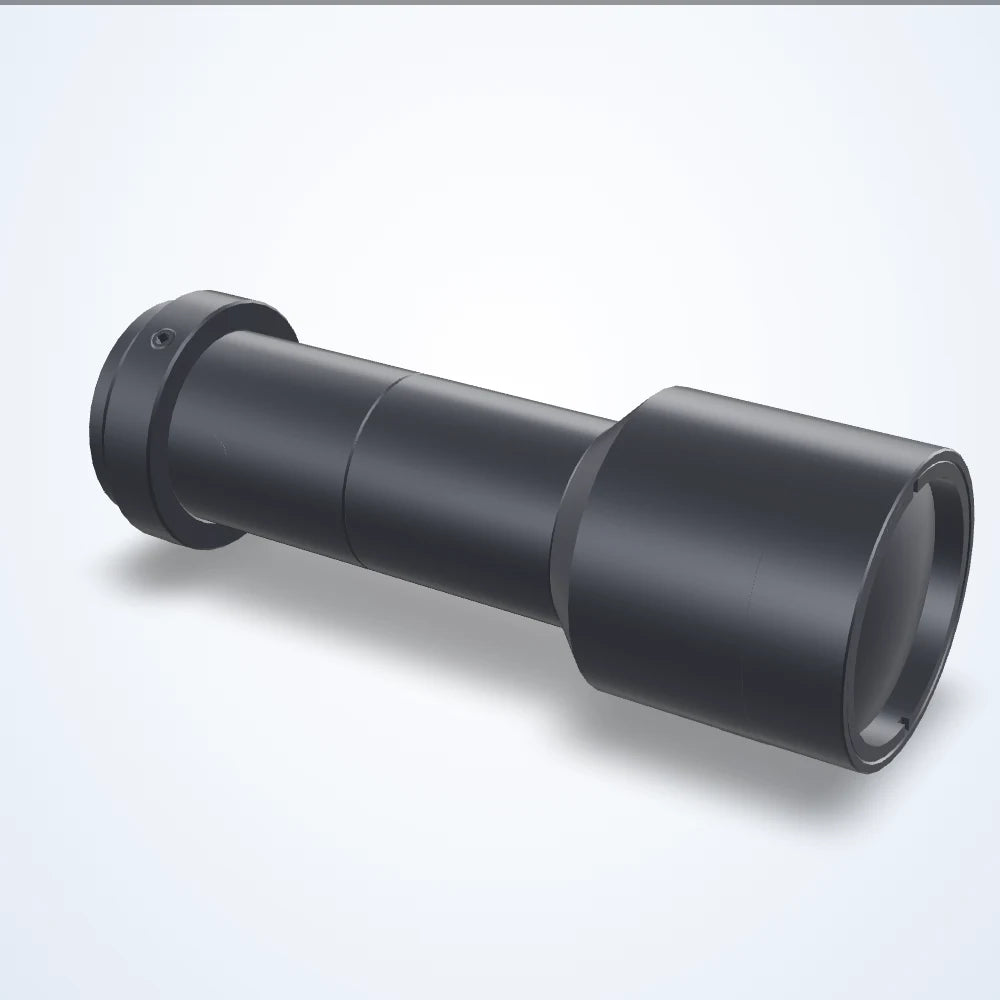

  • 0.5× lens, 2/3", C-mount (LS-FFL-0033)

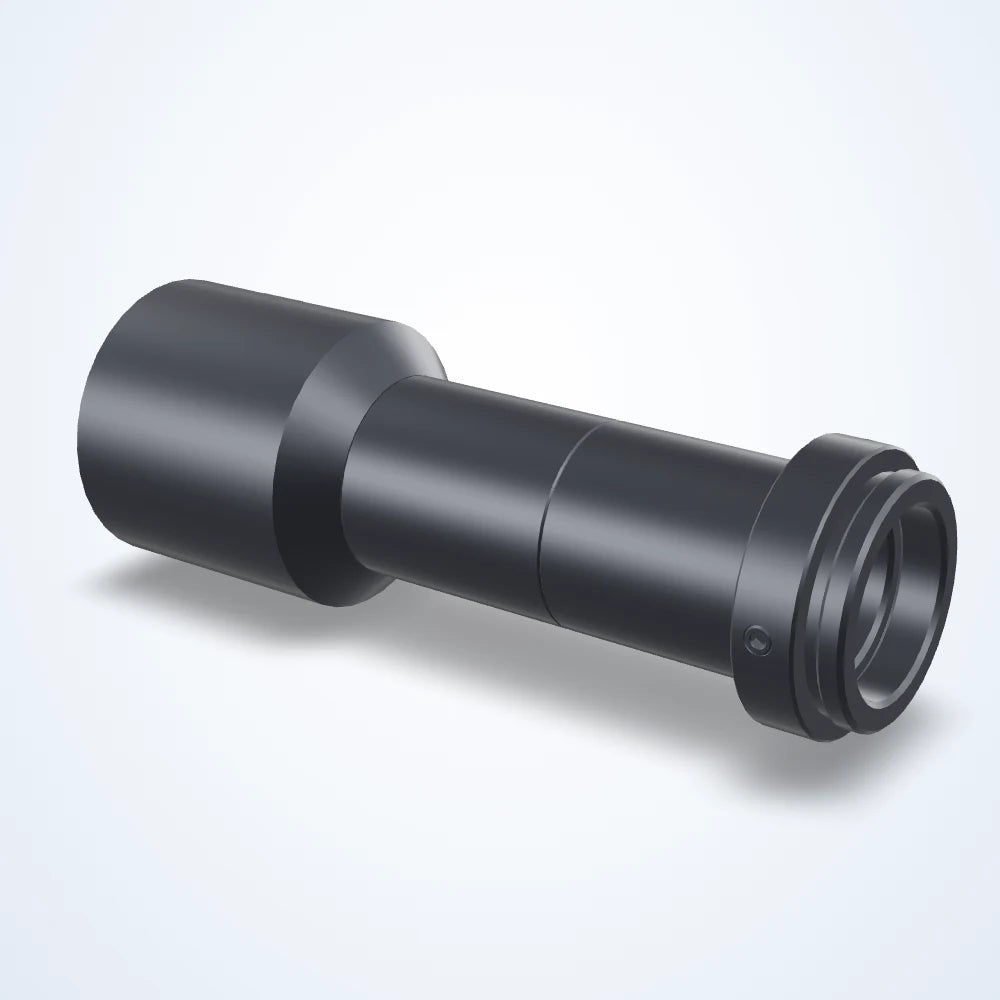

  • 0.5× lens, 2/3", C-mount (LS-FFL-0033) - view 2

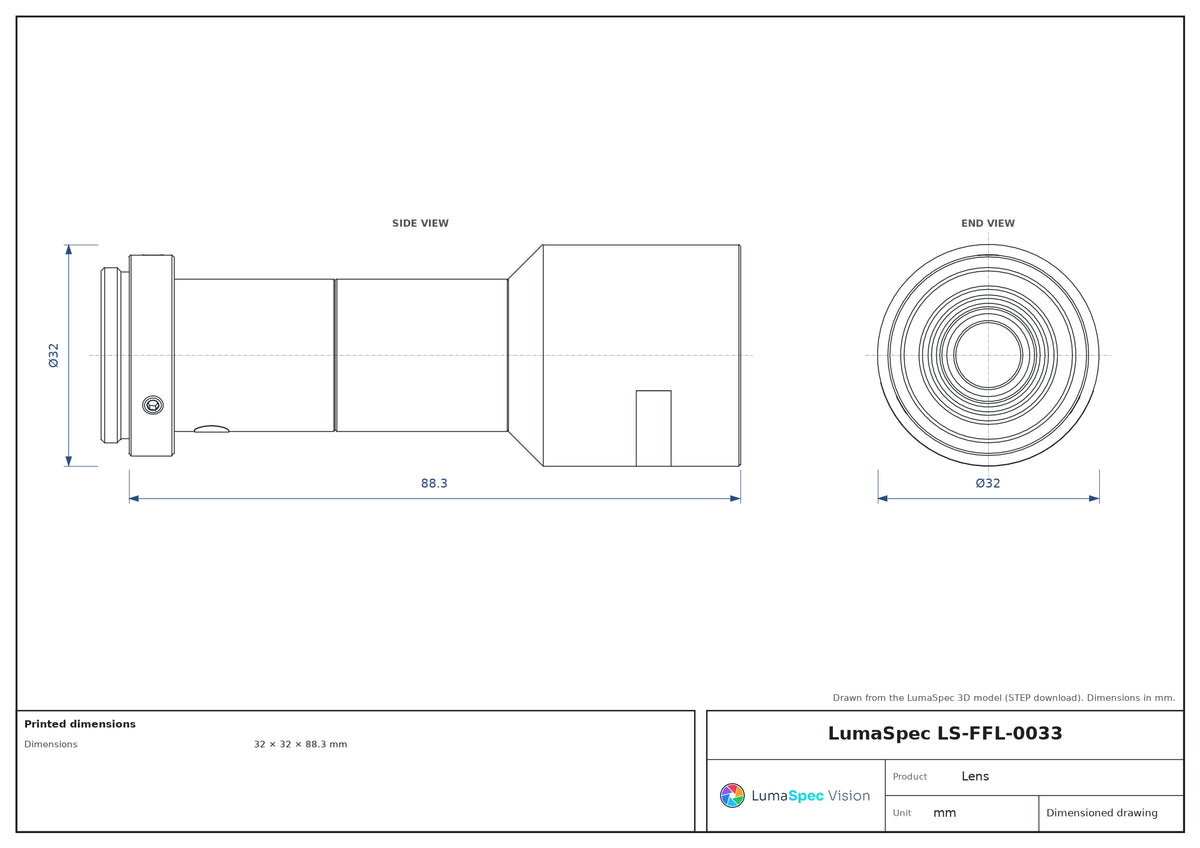

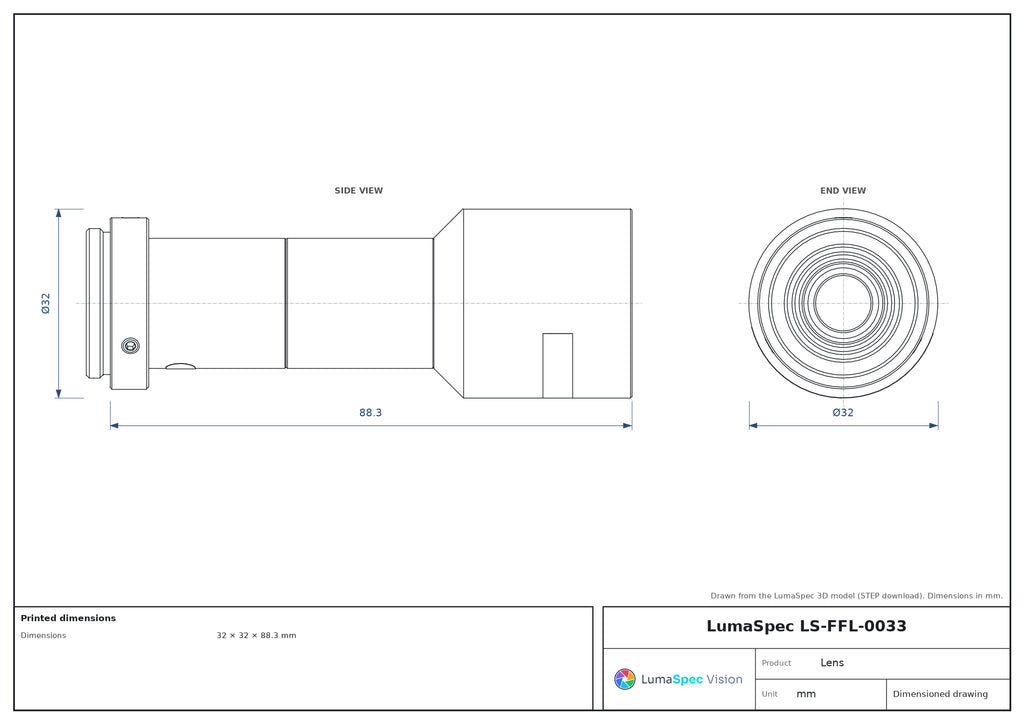

  • LS-FFL-0033 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

0.5× lens, 2/3", C-mount (LS-FFL-0033)

Model LS-FFL-0033

  • Magnification0.5×
  • MountC-mount
  • Sensor2/3"
  • Resolution2
$589.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.5× lens, 2/3", C-mount (LS-FFL-0033)LS-FFL-0033

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Depth of field 2.87 mm; minimum object distance 65.5 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0033
Minimum object distance65.5 mm
Lens typeFixed Focal Length
SpectrumVisible
Working ƒ/nf/9
Zoom rangeFixed

Optics

Magnification0.5×
Depth of field2.87 mm
Back focal length17 mm
Filter threadNo Filter Threads
Image circle11 mm
TV distortion (%)-0.012

Sensor and imaging

Sensor format2/3"
Resolution (MP)2

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountC-mount
Dimensions32 × 32 × 88.3 mm
Weight77

LS-FFL-0033

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0033 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Magnification
0.5×
Sensor format
2/3"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
