Machine vision lenses

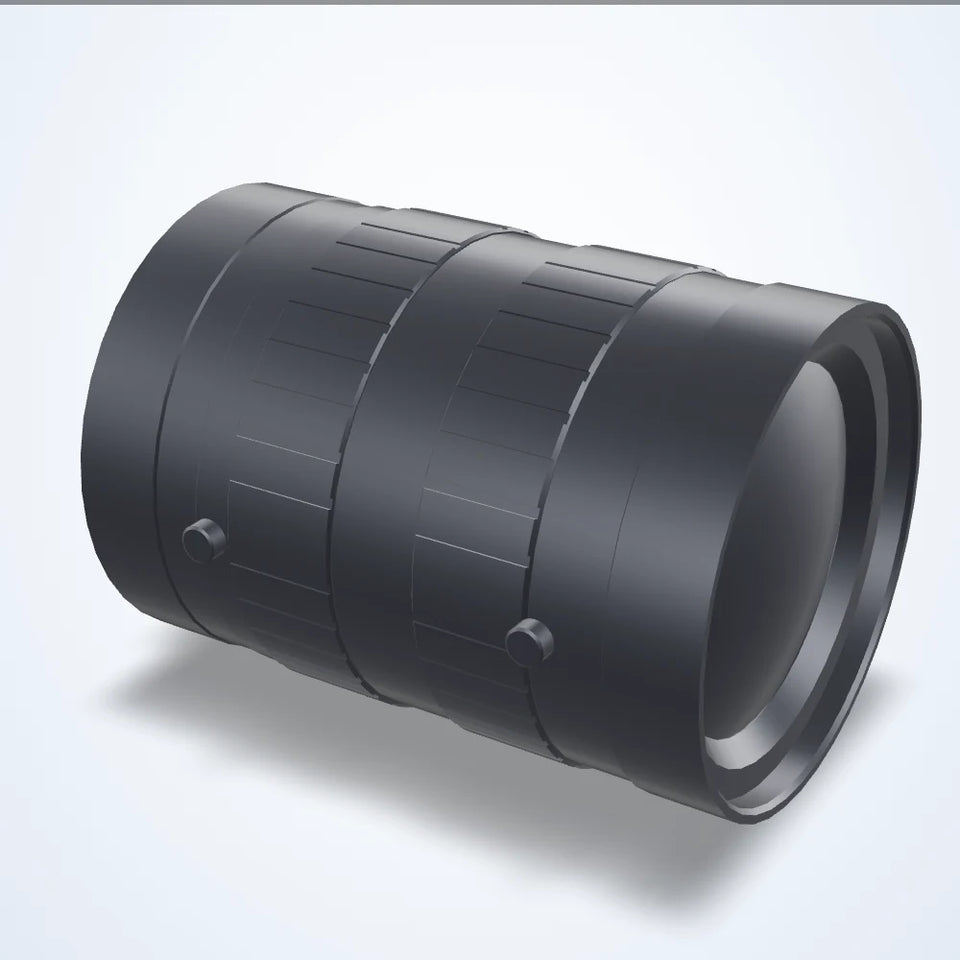

Lens series, 1", C-mount (S09)
- 6 models
- from $249.00
- Series LS-FFL-S09
The Lens series, 1", C-mount (S09) is a range of 6 machine vision lenses from LumaSpec Vision, from $249.00. It comes in 6 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 12.5 mm, 16 mm, 25 mm, 35 mm, 50 mm, 75 mm
- Mount
- C-mount
- Image circle
- 11-16 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 1"
All 6 models in the Lens series, 1", C-mount (S09)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0083 | 16 mm | f/1.4 | 51 mm × 51 mm × 70.5 mm | 42.6° x 32.8° | $249.00quote | View |
| LS-FFL-0085 | 25 mm | f/1.4 | 51 mm × 51 mm × 75.5 mm | 29.9° x 22.7° | $249.00quote | View |
| LS-FFL-0081 | 12.5 mm | f/1.4 | 51 mm × 51 mm × 68.5 mm | 53.1° x 41.2° | $259.00quote | View |
| LS-FFL-0087 | 35 mm | f/1.4 | 51 mm × 51 mm × 48.5 mm | 20.3° x 15.3° | $259.00quote | View |
| LS-FFL-0089 | 50 mm | f/1.8 | 51 mm × 51 mm × 55.5 mm | 14.1° x 10.6° | $309.00quote | View |
| LS-FFL-0091 | 75 mm | f/1.8 | 51 mm × 51 mm × 76 mm | 9.8° x 7.3° | $309.00quote | View |
