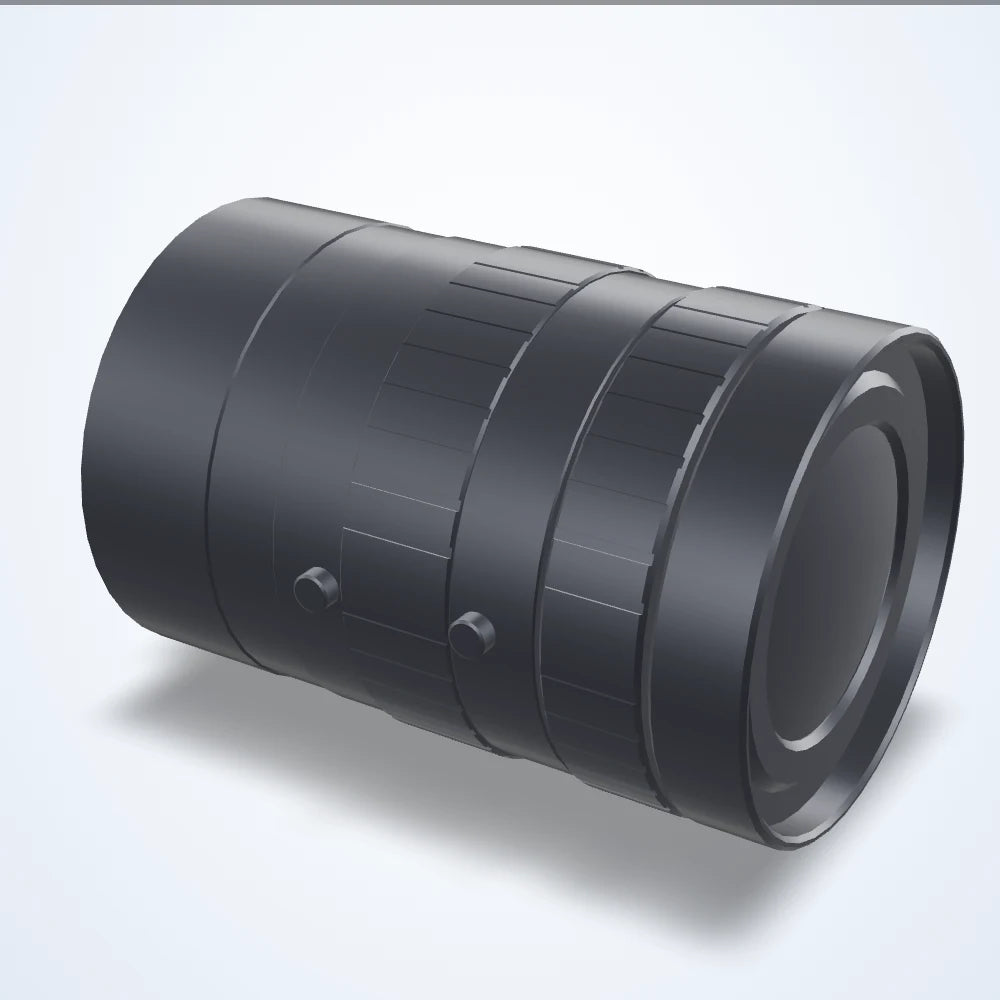

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
25 mm lens, 1", C-mount, Visible, 1.5 MP (LS-FFL-0085)
Model LS-FFL-0085
- Focal length25 mm
- MountC-mount
- Sensor1"
- Aperturef/1.4
- Resolution1.5
$249.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0085 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 29.9° x 22.7° |
| Distance between principle points | 17.00 mm |
| Exit pupil position | -152.27 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -23.47 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -6.47 mm |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (max) | f/1.4 |
| Back focal length | 22.32 mm |
| Filter thread | M49-0.75 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | 0.36 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (MP) | 1.5 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

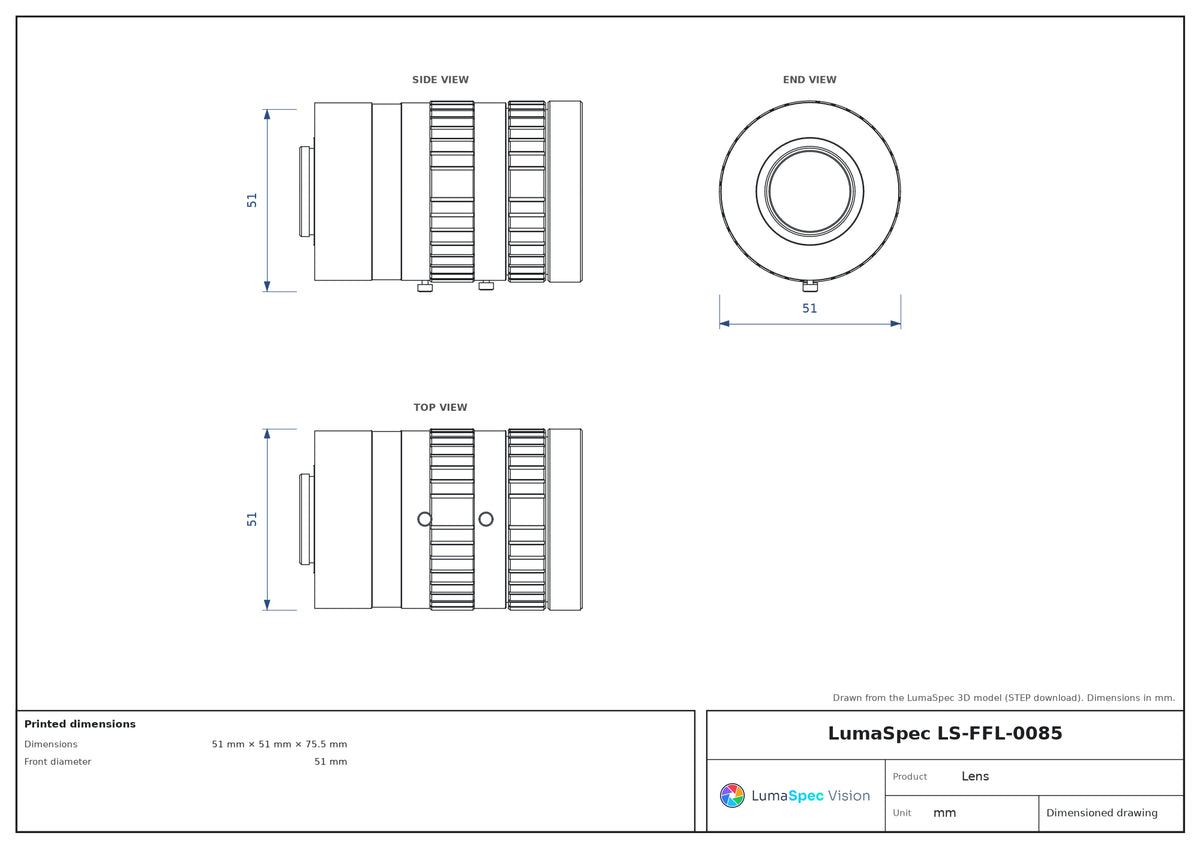

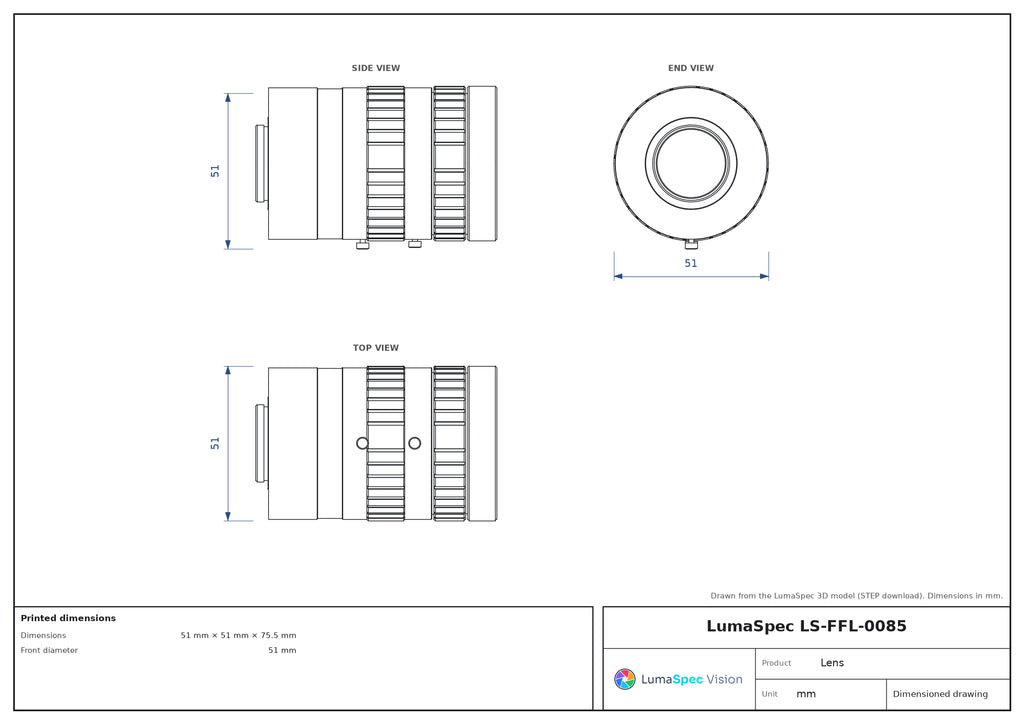

| Dimensions | 51 mm × 51 mm × 75.5 mm |
| Front diameter | 51 mm |
| Weight | 310 Grams |
LS-FFL-0085

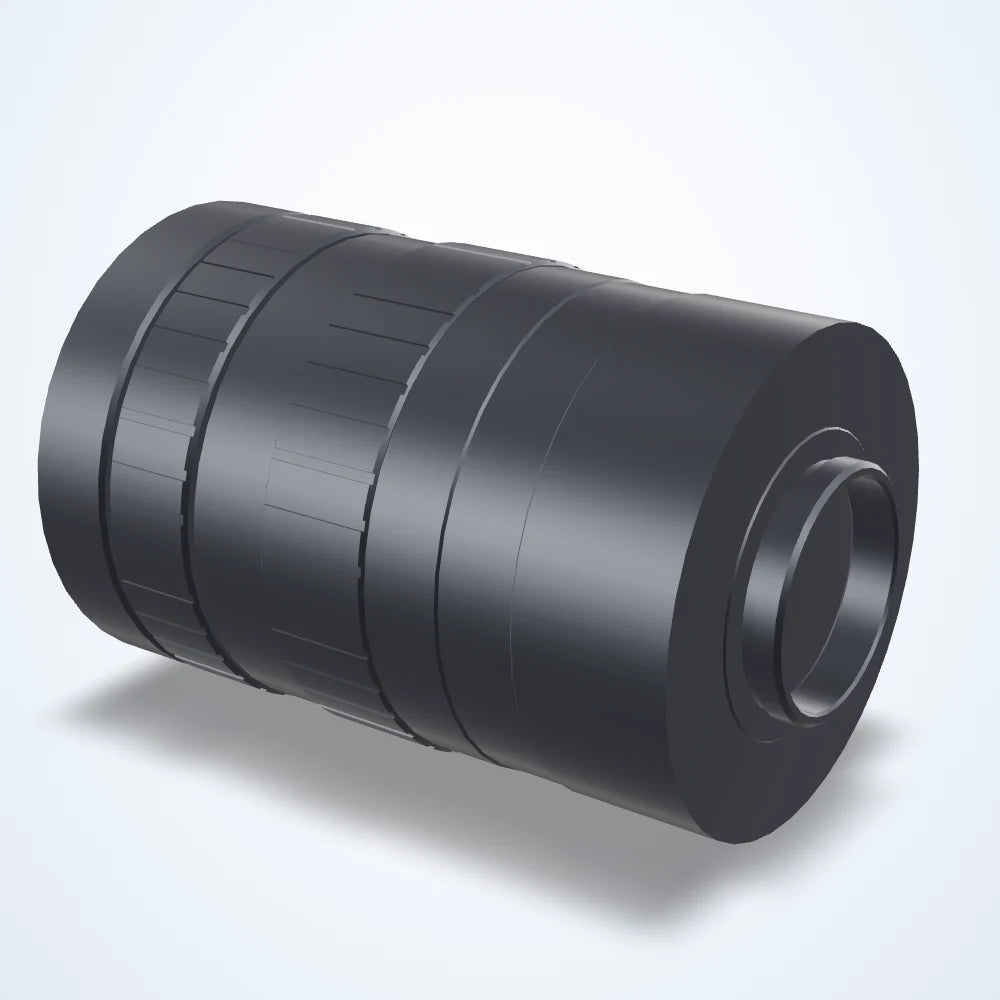

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 25 mm
- Sensor format
- 1"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
Other models in the Lens series, 1", C-mount (S09) series
See all 6 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-0083 | 16 mm | $249.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0081 | 12.5 mm | $259.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0087 | 35 mm | $259.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0089 | 50 mm | $309.00 Quote | Lead time confirmed with your quote | View |
| LS-FFL-0091 | 75 mm | $309.00 Quote | Lead time confirmed with your quote | View |
