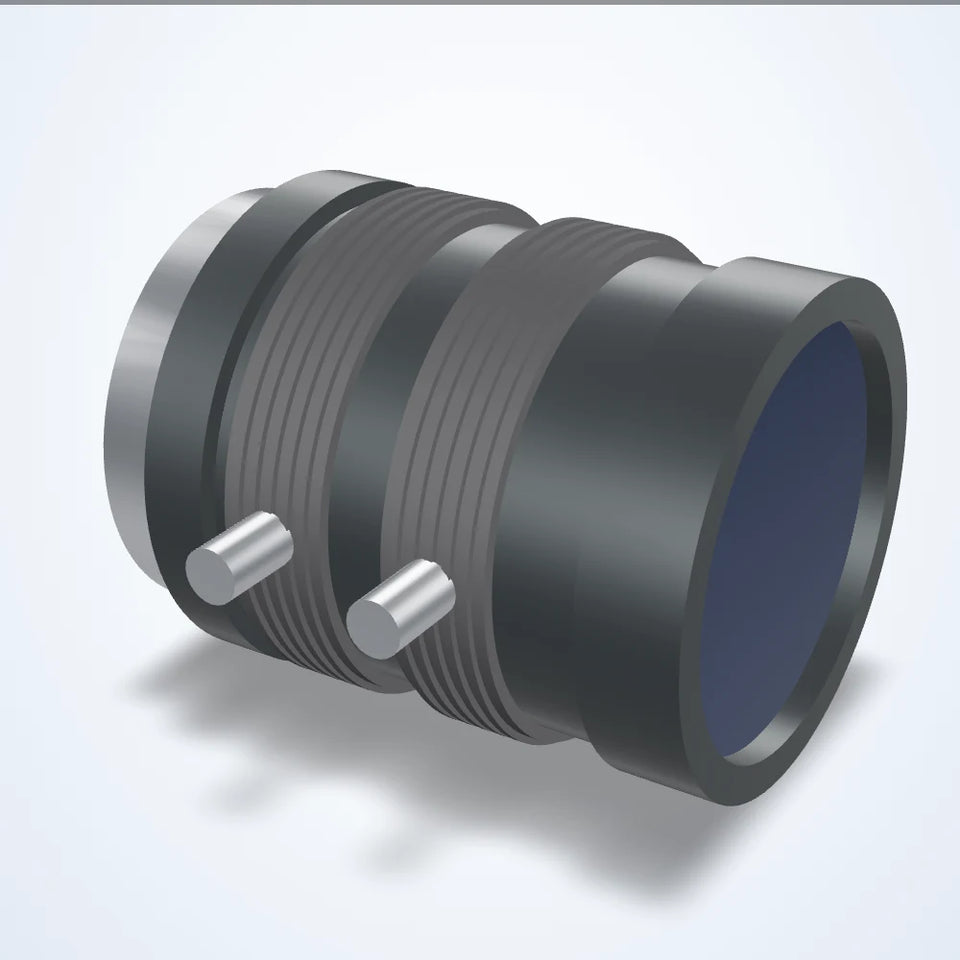

Lens series, 1/1.2", C-mount

Machine vision lenses

Lens series, 1/1.2", C-mount

  • 8 models
  • from $319.00
  • Series LS-FFL-S41

The Lens series, 1/1.2", C-mount is a range of 8 machine vision lenses from LumaSpec Vision, from $319.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 8 models Series datasheet (PDF)

The series at a glance

Sizes / versions
6 mm, 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm, 75 mm
Mount
C-mount
Image circle
11-16 mm
Focal length
6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
Sensor format
1/1.2"

All 8 models in the Lens series, 1/1.2", C-mount

Link
LS-FFL-027335 mm2.1-1629 x 32.617.3 x 13.1 deg (1/1.2" 4:3)$319.00quoteView
LS-FFL-027575 mm3.5-1629 x 56.78.1 x 6.1 deg (1/1.2" 4:3)$329.00quoteView
LS-FFL-027012 mm2.0-1629 x 37.249.2 x 37.6 deg (1/1.2" 4:3)$339.00quoteView
LS-FFL-027116 mm2.0-1629 x 28.937.4 x 28.4 deg (1/1.2" 4:3)$339.00quoteView
LS-FFL-027225 mm1.8-1629 x 31.524.1 x 18.2 deg (1/1.2" 4:3)$339.00quoteView
LS-FFL-027450 mm2.8-1629 x 42.812.2 x 9.2 deg (1/1.2" 4:3)$339.00quoteView
LS-FFL-02698 mm2.4-1637 x 41.7370.3 x 54.9 deg (1/1.2" 4:3)$389.00quoteView
LS-FFL-02686 mm2.8-1638 x 41.487.7 x 70.1 deg (1/1.2" 4:3)$759.00quoteView
