Machine vision lenses
35 mm lens, 1/1.2", C-mount (LS-FFL-0273)
Model LS-FFL-0273
- Focal length35 mm
- MountC-mount
- Sensor1/1.2"
- Aperture2.1-16
- Resolution5
$319.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0273 |
|---|---|
| Angle of view | 17.3 x 13.1 deg (1/1.2" 4:3) |
| Angle of view 1/1.2" 16:9 | 18.8 x 10.7 deg |
| Angle of view 2/3" 16:9 | 15.5 x 8.8 deg |
| Angle of view 2/3" 4:3 | 14.3 x 10.7 deg |
| FOV @ 1/1.2″ (4:3) | 17.3° × 13.1° |
| FOV @ 2/3″ (4:3) | 15.5° × 8.8° |
| Flange back | 17.526mm (in air) |
| Lens type | Fixed Focal Length |
| Minimum object distance (m) | 0.2 |
| Operation | Focus: manual w/lock / Iris: manual w/lock |
| Rear dia. | 28.5mm |
| Spectrum | Visible |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture (F) | 2.1-16 |
| Distortion | 0.05% (TV, design value) |
| Filter thread | M27x0.5 |
| Focus angle | 187.2 deg |
| Focus control | Manual with Lock |
| Focus range | 0.2m~inf (recommended shooting distance 0.3m) |
| Iris angle | 83.8 deg |
| Iris control | Manual with Lock |
Sensor and imaging
| Max. sensor format | 1/1.2" |
|---|---|
| Resolution (MP) | 5 |
Light
| Wavelength | Visible light |
|---|
Environment and compliance
| Operating temperature | -20~+60 C |
|---|---|
| Operating temperature range | -20 to +60 °C |
Mechanical
| Mount | C-mount |
|---|---|

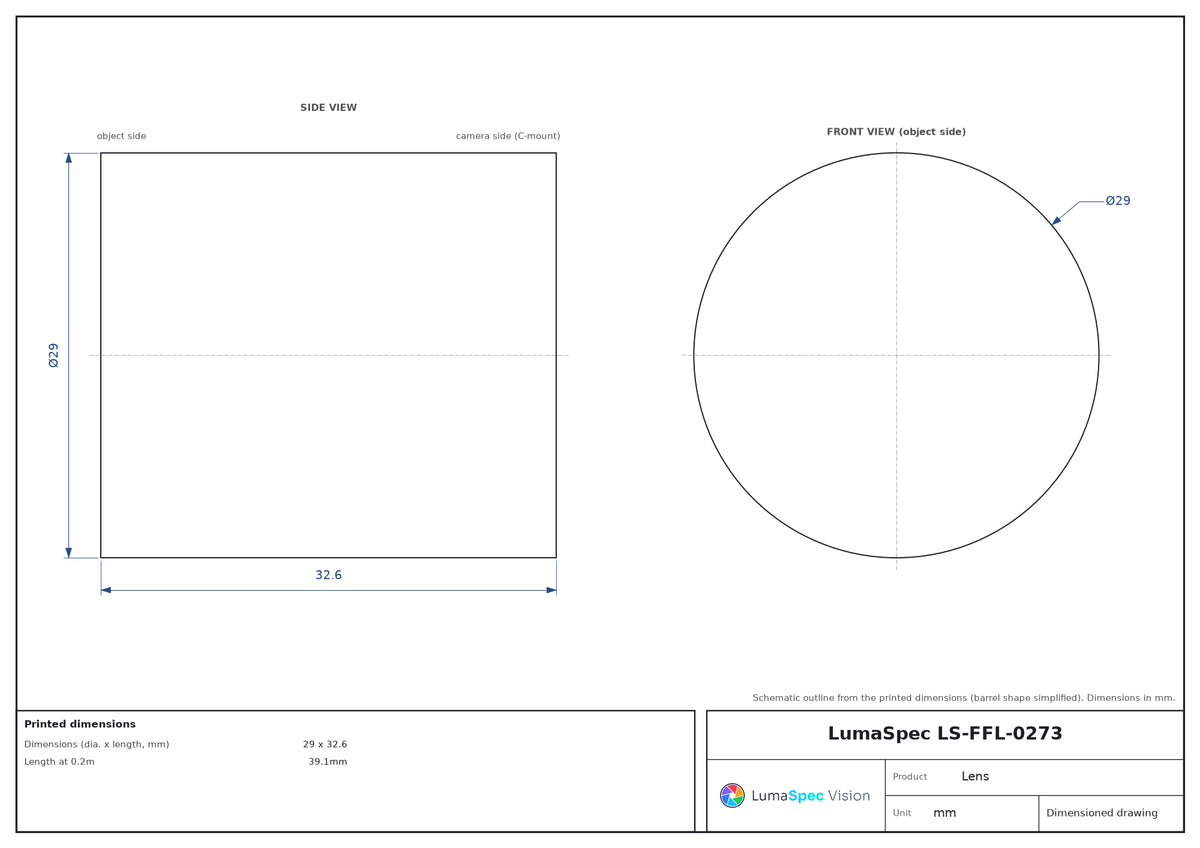

| Dimensions (dia. x length, mm) | 29 x 32.6 |
| Length at 0.2m | 39.1mm |
| Weight (g) | 57 |
