Machine vision lenses

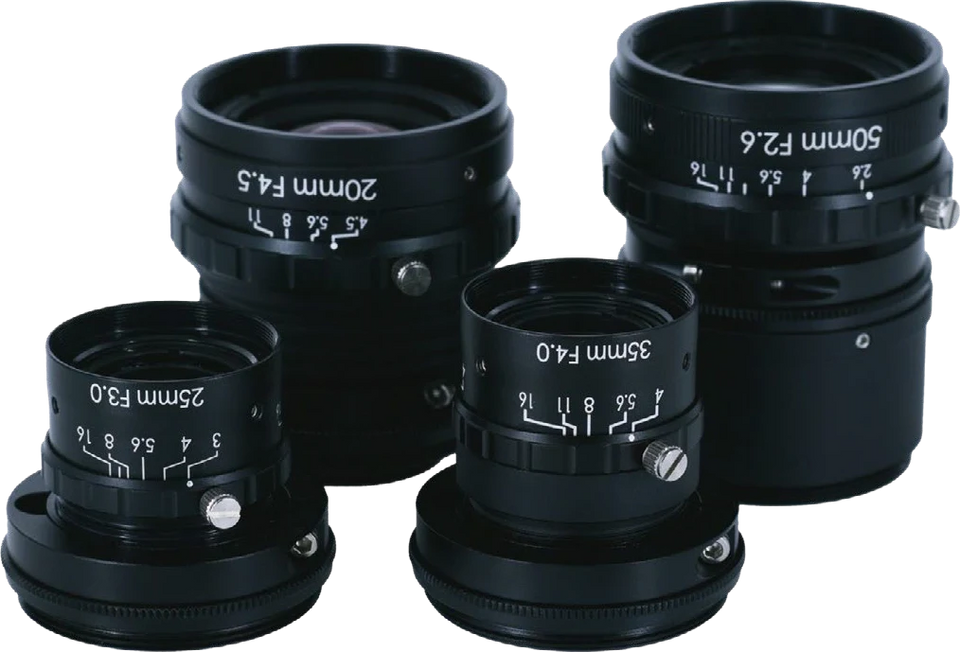

4K line scan lens (LSB, image circle 29 mm)
- 4 models
- from $369.00
- Series LENS-LSB-4K
The 4K line scan lens (LSB, image circle 29 mm) is a range of 4 machine vision lenses from LumaSpec Vision, from $369.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 20 mm, 4K, M42-mount, 25 mm, 4K, M42-mount, 35 mm, 4K, M42-mount, 50 mm, 4K, M42-mount
- Mount
- M42
- Image circle
- 22-30 mm
- Focal length
- 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 4/3" - APS-C
Features
- Large image format Φ29mm
- Uniform imaging
- Shock-resistant focusing locking mechanism
All 4 models in the 4K line scan lens (LSB, image circle 29 mm)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LSB204K | 20 mm, 4K, M42-mount | 20 | < 0.200 | 4.5-11 | $369.00 | View |
| LS-LSB2530A | 25 mm, 4K, M42-mount | 25 | 0.086-0.275 | 3.0-16 | $379.00 | View |
| LS-LSB354K | 35 mm, 4K, M42-mount | 35 | < 0.405 | 4.0-16 | $399.00 | View |
| LS-LSB504K | 50 mm, 4K, M42-mount | 50 | < 0.644 | 2.6-16 | $419.00 | View |
