Machine vision lenses

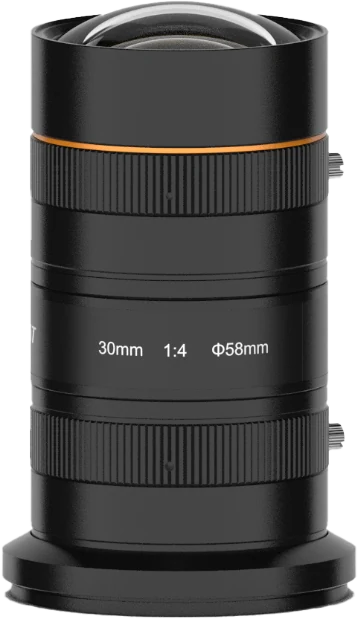

LF-M72 series lenses
- 6 models
- from $219.00
- Series LS-LF-M72
The LF-M72 series lenses is a range of 6 machine vision lenses from LumaSpec Vision, from $219.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- M72
- Image circle
- 45-60 mm, 60-90 mm
- Focal length
- 25-50 mm, 50-100 mm
- Sensor format
- Medium / large
Features
- Adopts high-precision lens for 8k 7 μm line scan cameras.
- Provides excellent consistency of image clarify with high resolution.
- Provides ultra-high image resolution at the maximum iris of F4.0.
- Provides maximum image size Φ58 mm.
- Provides excellent picture sharpness consistency, low distortion.
- Provides superior resolution at maximum aperture of F4.
- Provides excellent picture sharpness consistency, large aperture, and low distortion.
- Provides maximum image size Φ60 mm.
All 6 models in the LF-M72 series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LF3040M-005-M72 | 30 mm | 0.145 x to 0.031 x | F4.0 to F16 | Φ58 mm | $219.00 | View |
| LS-LF4040M-01-M72 | 40 mm | 0.21 x to 0.001 x | F4.0 to F22 | Φ58 mm | $229.00 | View |
| LS-LF6040M-0168V-M72 | 60 mm | 0.067 x to 0.2 x | F4.0 to F22 | Φ60 mm | $839.00 | View |
| LS-LF6040M-013-M72 | 60 mm | 0.37x ~ 0.13x ~ 0.07x ~ 0.001x | F4.0 ~ F22 | Φ58 mm | $839.00 | View |
| LS-LF6040M-0167V-M72 | 60 mm | 0.33x ~ 0.167x ~ 0.117x | F4.0 ~ F32 | Φ64 mm | $839.00 | View |
| LS-LF8040M-021V-M72 | 80 mm | 0.12x to 0.21x to 0.31x | F4.0 to F22 | Ø60 mm | $969.00 | View |
