Machine vision lenses

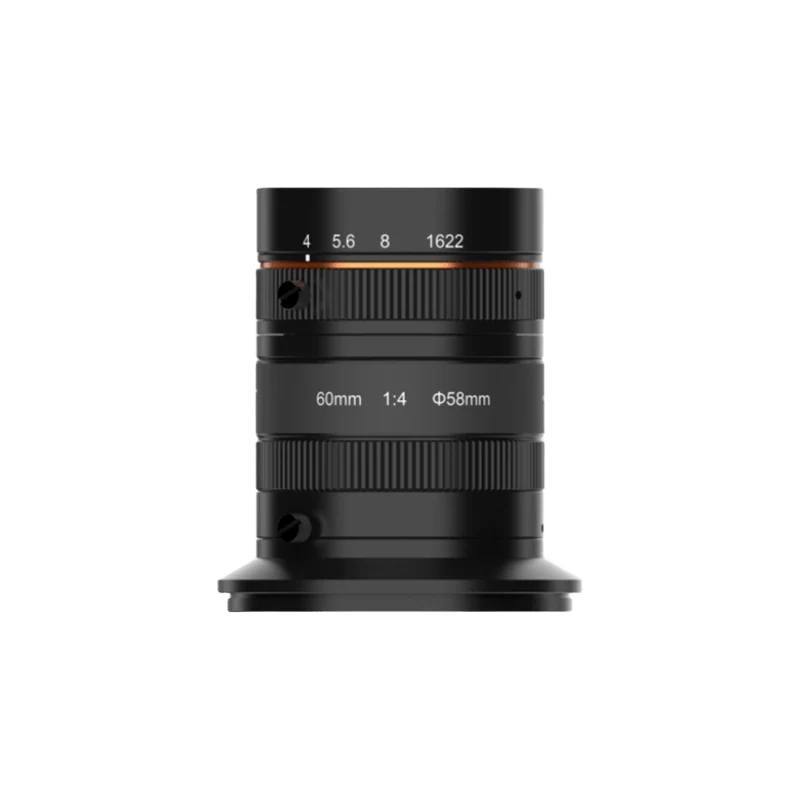

60mm, F4.0, Large image circle φ58 mm, Recommended magnification 0.07-0.37x, M72-mount lens (LS-FFL-1431)
Model LS-FFL-1431
- Focal length60 mm
- Magnification0.37x ~ 0.13x ~ 0.07x ~ 0.001x
- MountM72
- SensorMedium format
- Working distance200 ~ 500 ~ 900 ~ ∞ ±5 mm
- ApertureF4.0 ~ F22
$839.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.79 kg shipping weight
Volume pricing, Net 30 or a formal quote?
60mm, F4.0, Large image circle φ58 mm, Recommended magnification 0.07-0.37x, M72-mount lens. High-precision lens for 8K7U line-scan cameras Excellent sharpness uniformity across the image, low distortion
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1431 |
|---|---|
| Conjugate distance range | 308 ~ 594 ~ 990 ~ ∞ ±9 mm |
Optics
| Focal length | 60 mm |
|---|---|
| F-number | F4.0 ~ F22 |
| Image size | Φ58 mm |
| Optical distortion | -0.45% |
| Magnification range | 0.37x ~ 0.13x ~ 0.07x ~ 0.001x |
| Working distance range | 200 ~ 500 ~ 900 ~ ∞ ±5 mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M58 × P0.75 |
Interfaces and I/O
| Connector type | M72 × P0.75 |
|---|
Environment and compliance
| Temperature | -10 ~ 50 °C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 12 mm |
|---|---|
| Dimension | Φ76 × 84.07 ~ 107.02 mm |
| Weight | 495.8 g |
| Shipping weight (estimated) | 0.79 kg |
