Machine vision lenses

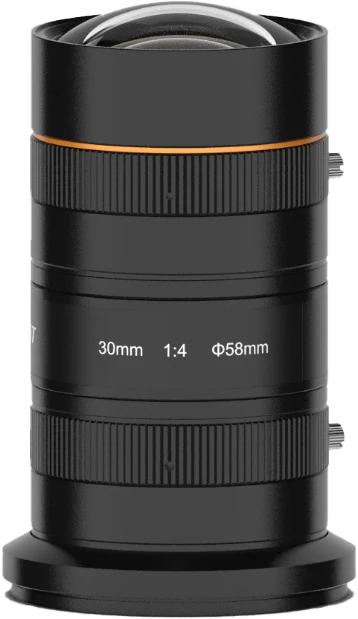

30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x, M72 Mount (LS-LF3040M-005-M72)
Model LS-LF3040M-005-M72
- Focal length30 mm
- Magnification0.145 x to 0.031 x
- MountM72
- SensorMedium format
- Working distance205 mm to 1000 mm (tolerance: ± 5 mm)
- ApertureF4.0 to F16
$219.00
In stock - ships the same business day (5 available, order by 2 PM ET)
1.22 kg shipping weight
Volume pricing, Net 30 or a formal quote?
30mm, F4.0, Image Size φ58mm, Recommended Magnification 0.031-0.145x, M72 Mount. Adopts high-precision lens for 8k 7 μm line scan cameras. Provides excellent consistency of image clarify with high resolution.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LF3040M-005-M72 |
|---|---|
| Conjugate distance range | 345 mm to 1137 mm (tolerance: ± 9 mm) |
Optics
| Focal length | 30 mm |
|---|---|
| F-number | F4.0 to F16 |
| Image size | Φ58 mm |
| Optical distortion | –0.84% |
| Magnification range | 0.145 x to 0.031 x |
| Working distance range | 205 mm to 1000 mm (tolerance: ± 5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Magnification at working distance (mm) | 250: -0.119; 300: -0.100; 350: -0.087; 400: -0.076; 450: -0.068; 500: -0.062; 550: -0.056; 600: -0.052; 650: -0.048; 700: -0.044; 750: -0.042; 800: -0.039; 850: -0.037; 900: -0.035; 950: -0.033; 1000: -0.031 |
| Object-to-image distance at working distance (mm) | 250: 387; 300: 437; 350: 487; 400: 537; 450: 587; 500: 637; 550: 687; 600: 737; 650: 787; 700: 837; 750: 887; 800: 937; 850: 987; 900: 1037; 950: 1087; 1000: 1137 |
| Field of view H (mm) at working distance (mm), 8k 7 µm sensor | 250: 484.8; 300: 575.5; 350: 666.1; 400: 756.7; 450: 847.3; 500: 937.8; 550: 1028.3; 600: 1118.7; 650: 1209.2; 700: 1299.7; 750: 1390.1; 800: 1480.6; 850: 1571.0; 900: 1661.5; 950: 1751.9; 1000: 1842.3 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |

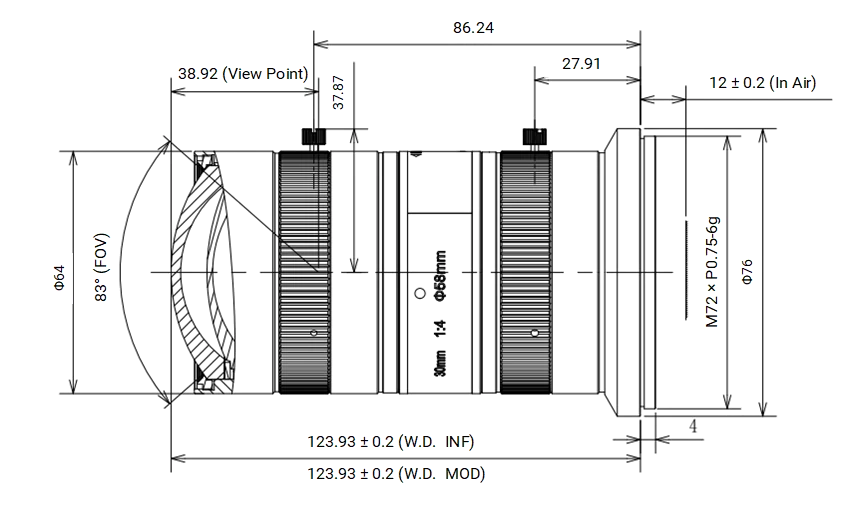

Mechanical
| Mount | M72 × P0.75 |
|---|---|
| Flange back length | 12 mm |
| Dimension | Φ76 mm × 123.93 mm (Φ3.0" × 4.9") |
| Weight | 797 g (1.8 lb.) |
| Shipping weight (estimated) | 1.22 kg |
