Machine vision lenses
Zoom Lens Series
- 6 models
- from $329.00
- Series LS-ZOOM-LENS

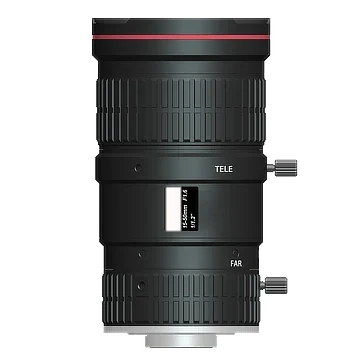

The Zoom Lens Series is a range of 6 machine vision lenses from LumaSpec Vision, from $329.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Image circle
- Up to 8 mm, 8-11 mm, 11-16 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm
- Resolution
- Up to 3 MP, 5 MP, 6-10 MP, 12 MP
- Mount
- C-mount, CS-mount
- Sensor format
- 1/2.5" and smaller, 1/1.8" - 1/1.56", 2/3", 1/1.2"
Features
- Large aperture F1.6
- Zoom range 15–50 mm
- Coating covers the infrared band with high infrared transmittance
- High resolution, high contrast
- Low distortion for improved measurement accuracy
- Multi-layer coating effectively suppresses stray light and ghosting
- Compact design with screw-locked focus and iris
- High resolution with high overall image sharpness
All 6 models in the Zoom Lens Series
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-MV1550-12MPIR | 15(W) ~ 50(T) mm | F1.6 | Φ63 × 111.8 mm | CS-Mount | $329.00 | View |
| LS-MV1236M-5MP | 12(W)~ 36(T)mm | F2.8 ~ F16 | Φ45×63.9 mm | C-Mount | $329.00 | View |
| LS-HV1050M-6MP | 10(W)~ 50(T)mm | F2.8~C | Φ37×65 mm | C-Mount | $329.00 | View |
| LS-MV1236M-MP | 12(W)~ 36(T)mm | F2.8~C | Φ37.5×54 mm | C-Mount | $329.00 | View |
| LS-MV5721-12MPIR | 5.7(W)~ 21(T)mm | F1.5 | Φ66.6×99.98 mm | CS-Mount | $329.00quote | View |
| LS-HV0528M-6MPIR | 5-28 mm | F2.8 | Φ35.5 × 46.7 mm | C-Mount | $329.00 | View |
