Machine vision lenses

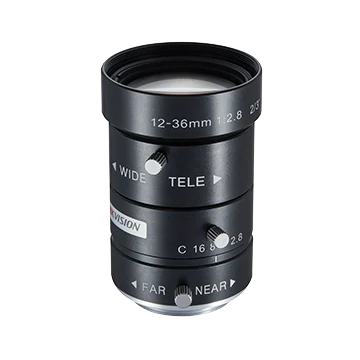

12-36mm, F2.8, 2/3", 1 MP, C-mount lens (LS-MV1236M-MP)
Model LS-MV1236M-MP
- Focal length12(W)~ 36(T)mm
- MountC-mount
- Sensor2/3"
- ApertureF2.8~C
$329.00
In stock - ships the same business day (3 available, order by 2 PM ET)
0.24 kg shipping weight
Volume pricing, Net 30 or a formal quote?
12-36mm, F2.8, 2/3", 1 MP, C-mount lens. For megapixel cameras Low distortion for improved measurement accuracy
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-MV1236M-MP |
|---|---|
| Minimum object distance | W:0.15 m; T:0.5 m |
| Zoom control | Manual |
Optics
| Focal length | 12(W)~ 36(T)mm |
|---|---|
| F-number | F2.8~C |
| Image size | Φ11 mm(2/3'') |
| Distortion | W:-3.43%; T:2.3% |
| Field of view | W:D(11 mm):50.8°, H(8.8 mm):41.3°, V(6.6 mm):31.2°; T:D(11 mm):17.0°, H(8.8 mm):13.8°, V(6.6 mm):10.4° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M35.5×0.5 |
Interfaces and I/O
| Connector type | C-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 17.526 mm |
|---|---|
| Dimension | Φ37.5×54 mm |
| Weight | 103 g |
| Shipping weight (estimated) | 0.24 kg |
