Machine vision lenses

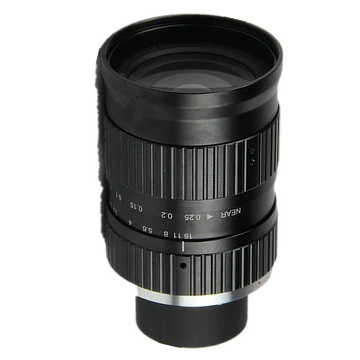

LF series lenses
- 6 models
- from $1,079.00
- Series LS-LF
The LF series lenses is a range of 6 machine vision lenses from LumaSpec Vision, from $1,079.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- M72, F-mount
- Image circle
- 30-45 mm, 45-60 mm, 60-90 mm
- Focal length
- 25-50 mm, 50-100 mm
- Resolution
- 29 MP +
- Sensor format
- APS-H / Full frame, Medium / large
Features
- Provides ultra-high consistency of image clarity.
- Provides ultra-low distortion and high peripheral brightness ratio.
- Provides image size Φ43.2 mm for large format area scan and 8k 5 μm line scan cameras.
- Optimizes optical designs for magnification.
- Adopts high-precision lens for 8k 5 μm line scan cameras and full-frame area scan cameras.
- Provides excellent consistency of image clarity and low distortion.
- Provides ultra-high image resolution at the max. aperture of F4.
- Provides max. image size Φ43.2 mm.
All 6 models in the LF series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-LF3528M-F | 35 mm | 0.25 x to 0.05 x | 129 mm to 728 mm | F2.8 to F16 | $1,079.00 | View |
| LS-LF3540M-F | 35 mm | 0.05 x to 0.001 x | 700 mm to inf mm (tolerance: ±5 mm) | F4.0 to F16 | $1,079.00 | View |
| LS-LF5040M-F | 50 mm | 0.33 x to 0.01 x | 150 mm to inf mm | F4.0 to F22 | $1,079.00 | View |
| LS-LF8040M-F | 80 mm | 0.4x to 0.01x | 235 mm to inf mm | F4.0 to F22 | $1,079.00 | View |
| LS-LF5545M-M72 | 55 mm | 0.5x~ 0.01x | 98~inf mm | F4.5 ~ F22 | $1,079.00 | View |
| LS-LF2528M-F | 25 mm | 0.17x ~ 0.001x | 140 ~ inf mm | F2.8 ~ F32 | $1,079.00 | View |
