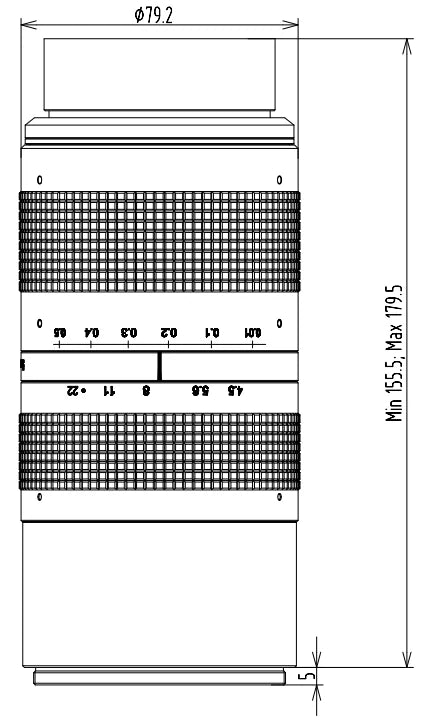

  • LS-LF5545M-M72 dimensions (mm)

Machine vision lenses

Large Format Φ67mm 55mm Focal Length FA LENS (LS-LF5545M-M72)

Model LS-LF5545M-M72

  • Focal length55 mm
  • Magnification0.5x~ 0.01x
  • MountM72
  • SensorMedium format
  • Working distance98~inf mm
  • ApertureF4.5 ~ F22
$1,079.00

In stock - ships the same business day (4 available, order by 2 PM ET)

2.37 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Large Format Φ67mm 55mm Focal Length FA LENS. Ultra high resolution and compatible with 3.76µm pixels Low distortion and high relative illumination

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-LF5545M-M72

Optics

Focal length55 mm
F-numberF4.5 ~ F22
Image sizeΦ67 mm
Distortion0.05%
Magnification range0.5x~ 0.01x
Working distance range98~inf mm
Iris controlManual
Focus controlManual

Environment and compliance

Temperature-10 ~ 50℃
CertificationRoHS2.0

Mechanical

MountM72×P0.75
Flange back length19.55 mm
DimensionΦ80×179.5 mm
Weight1618.6 g
Shipping weight (estimated)2.37 kg

Photo shows a representative model of this series; see the specifications for this model.
