Machine vision lenses

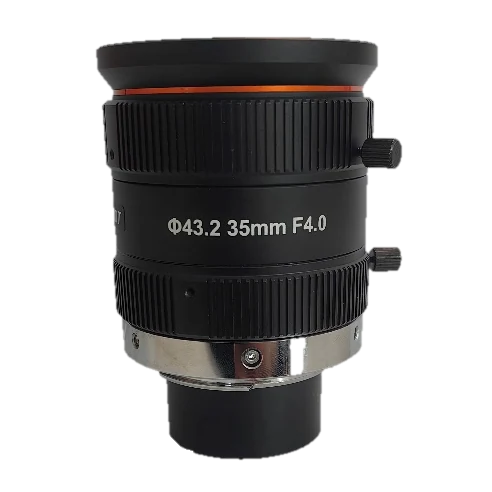

35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X, F-Mount (LS-LF3540M-F)
Model LS-LF3540M-F
- Focal length35 mm
- Magnification0.05 x to 0.001 x
- MountF-mount
- SensorFull frame
- Working distance700 mm to inf mm (tolerance: ±5 mm)
- ApertureF4.0 to F16
$1,079.00
In stock - ships the same business day (5 available, order by 2 PM ET)
0.31 kg shipping weight
Volume pricing, Net 30 or a formal quote?
35mm, F4.0, Full Frame φ43.2mm, Recommended Magnification 0.050~0.001X, F-Mount. Adopts high-precision lens for 8k 5 μm line scan cameras and full-frame area scan cameras. Provides excellent consistency of image clarity and low distortion.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LF3540M-F |
|---|---|
| Conjugate distance range | 816 mm to inf mm (tolerance: ±9 mm) |
Optics
| Focal length | 35 mm |
|---|---|
| F-number | F4.0 to F16 |
| Image size | Φ43.2 mm |
| Optical distortion | 0.46% |
| Magnification range | 0.05 x to 0.001 x |
| Working distance range | 700 mm to inf mm (tolerance: ±5 mm) |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M52 × P0.75 |
| Magnification at working distance (mm) | 700: -0.050; 750: -0.046; 800: -0.043; 850: -0.041; 900: -0.039; 950: -0.036; 1000: -0.035; 1100: -0.031; 1200: -0.029; 1300: -0.026; 1400: -0.025; 1500: -0.023 |
| Object-to-image distance at working distance (mm) | 700: 820; 750: 870; 800: 920; 850: 969; 900: 1019; 950: 1069; 1000: 1119; 1100: 1218; 1200: 1318; 1300: 1418; 1400: 1517; 1500: 1617 |
| Field of view H x V (mm) at working distance (mm), sensor 36.17 x 24.11 mm | 700: 730.0 x 485.7; 750: 783.4 x 521.4; 800: 836.7 x 557.0; 850: 890.1 x 592.7; 900: 943.5 x 628.4; 950: 996.8 x 664.1; 1000: 1050.2 x 699.8; 1100: 1156.9 x 771.2; 1200: 1263.7 x 842.6; 1300: 1370.4 x 913.9; 1400: 1477.1 x 985.3; 1500: 1583.9 x 1056.7 |
| Field of view H (mm) at working distance (mm), 8k 5 µm sensor | 700: 826.4; 750: 886.6; 800: 946.8; 850: 1007.0; 900: 1067.2; 950: 1127.4; 1000: 1187.6; 1100: 1308.0; 1200: 1428.5; 1300: 1548.9; 1400: 1669.3; 1500: 1789.7 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | F-mount |
|---|---|
| Flange back length | 46.5 mm |
| Dimension | Φ61 mm × 67.12 mm to 73.62 mm (Φ2.4" × 2.6" to 2.9") |
| Shipping weight (estimated) | 0.31 kg |
