Machine vision lenses

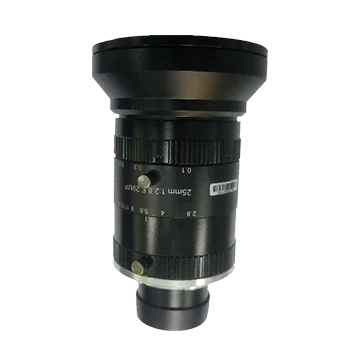

25mm, F2.8, Full frame φ43.2 mm, 29 MP, F-mount lens (LS-LF2528M-F)
Model LS-LF2528M-F
- Focal length25 mm
- Magnification0.17x ~ 0.001x
- MountF-mount
- SensorFull frame
- Working distance140 ~ inf mm
- ApertureF2.8 ~ F32
$1,079.00
In stock - ships the same business day (3 available, order by 2 PM ET)
1.09 kg shipping weight
Volume pricing, Net 30 or a formal quote?
25mm, F2.8, Full frame φ43.2 mm, 29 MP, F-mount lens. Outstanding sharpness uniformity across the image Ultra-low distortion, high relative illumination
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-LF2528M-F |
|---|
Optics
| Focal length | 25 mm |
|---|---|
| F-number | F2.8 ~ F32 |
| Image size | Φ43.2 mm |
| Optical distortion | 0.40% |
| Magnification range | 0.17x ~ 0.001x |
| Working distance range | 140 ~ inf mm |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M77 × 0.75 |
Interfaces and I/O
| Connector type | F-Mount |
|---|
Environment and compliance
| Temperature | -10 ~ 50°C |
|---|---|
| Certification | RoHS2.0 |
Mechanical
| Flange back length | 46.5 mm |
|---|---|

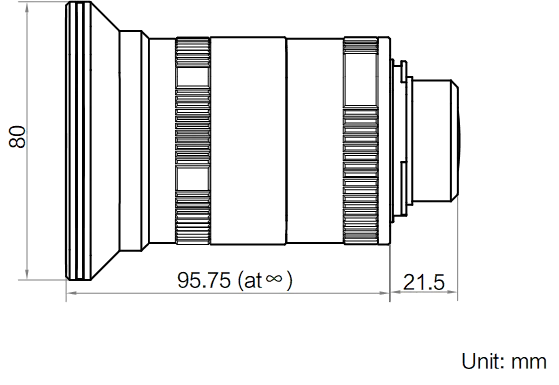

| Dimension | Φ80 × 95.75 mm |
| Weight | 705.7 g |
| Shipping weight (estimated) | 1.09 kg |
