Machine vision lenses

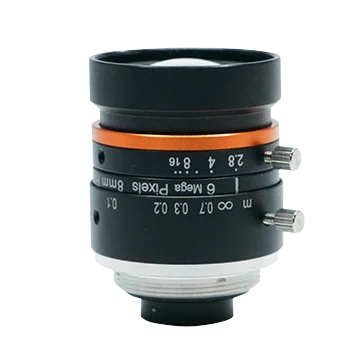

HF-E series lenses
- 9 models
- from $69.00
- Series LS-HF-E
The HF-E series lenses is a range of 9 machine vision lenses from LumaSpec Vision, from $69.00. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Mount
- M42, C-mount
- Image circle
- 8-11 mm, 30-45 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Resolution
- 6-10 MP
- Sensor format
- 1/1.8" - 1/1.56", Medium / large
Features
- Higher image clarity and contrast ratio
- Ultra-low distortion and higher relative illumination rate
- Good optical performance at ultra-short working distance
- Compact design, convenient for device integration
- Higher image clarity and contrast ratio.
- High image clarity and consistency
- Ultra-low distortion rate
- Ultra-high image peripheral brightness ratio
All 9 models in the HF-E series lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-HF0828M-6MPE | 8 mm | F2.8 to F16 | Ø33 mm × 34.5 mm (Ø1.3" × 1.4") | M30.5 × P0.5 | $69.00 | View |
| LS-HF1228M-6MPE | 12 mm | F2.8 to F16 | Ø33 mm × 40.2 mm (Ø1.3" × 1.6") | M27 × P0.5 | $69.00 | View |
| LS-HF1628M-6MPE | 16 mm | F2.8 to F16 | Ø33 mm × 31.9 mm (Ø1.3" × 1.3") | M27 × P0.5 | $69.00 | View |
| LS-HF2528M-6MPE | 25 mm | F2.8 to F16 | Ø33 mm × 30.22 mm (Ø1.3'' x 1.2'') | M27 × P0.5 | $69.00 | View |
| LS-HF3028M-6MPE | 30 mm | F2.8 to F16 | Ø33 mm × 29.4 mm (Ø1.3" x 1.2") | M27 × P0.5 | $69.00 | View |
| LS-HF4028M-6MPE | 40 mm | F2.8 to F16 | Ø33 mm × 41.5 mm (Ø1.3" x 1.6") | M27 × P0.5 | $69.00 | View |
| LS-HF5028M-6MPE | 50 mm | F2.8 to F16 | Ø37 mm × 51.7 mm (Ø1.5" x 2.0") | M30.5 × 0.5 | $69.00 | View |
| LS-XAC-40M42 | 40 mm | F2.8 ~ F22 | Φ47.6 × 62.7 mm | M37 × 0.75 | $69.00 | View |
| LS-HF0628M-6MPE | 6 mm | F2.8 to F16 | Ø39 mm × 32.53 mm (Ø1.5" × 1.3") | M37.5×P0.5 | $79.00 | View |
