Machine vision lenses

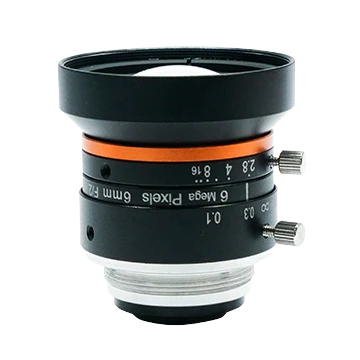

6mm, F2.8, 1/1.8", 6MP Lens, C-Mount (LS-HF0628M-6MPE)
Model LS-HF0628M-6MPE
- Focal length6 mm
- MountC-mount
- Sensor1/1.8"
- ApertureF2.8 to F16
$79.00
In stock - ships the same business day (2 available, order by 2 PM ET)
0.19 kg shipping weight
Volume pricing, Net 30 or a formal quote?
6mm, F2.8, 1/1.8", 6MP Lens, C-Mount. Higher image clarity and contrast ratio Ultra-low distortion and higher relative illumination rate
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-HF0628M-6MPE |
|---|---|
| Minimum object distance | 0.1 m |
| Close-up with extension tube | 1 mm tube, near focus: WD 14 mm, magnification -0.217; 1 mm tube, far focus: WD 24 mm, magnification -0.162 |
Optics
| Focal length | 6 mm |
|---|---|
| F-number | F2.8 to F16 |
| Image size | Ø9 mm (1/1.8'') |
| Distortion | –0.103% |
| Field of view | D (8.96 mm): 73.49°; H (7.38 mm): 63.11°; V (4.92 mm): 44.59° |
| Iris control | Manual |
| Focus control | Manual |
| Filter thread | M37.5×P0.5 |
| Magnification at working distance (mm) | 100: -0.054; 150: -0.037; 200: -0.029; 250: -0.023; 300: -0.020; 350: -0.017; 400: -0.015; 450: -0.013; 500: -0.012; 550: -0.011; 600: -0.010; 650: -0.009; 700: -0.009; 800: -0.008; 900: -0.007; 1000: -0.006 |
| Field of view H x V (mm) at working distance (mm), 1/1.8" sensor (7.38 x 4.92 mm) | 100: 141.39 x 93.24; 150: 201.68 x 133.41; 200: 261.94 x 173.57; 250: 322.19 x 213.72; 300: 382.43 x 253.87; 350: 442.67 x 294.01; 400: 502.9 x 334.16; 450: 563.13 x 374.3; 500: 623.36 x 414.45; 550: 683.59 x 454.59; 600: 743.82 x 494.73; 650: 804.05 x 534.87; 700: 864.28 x 575.02; 800: 984.74 x 655.3; 900: 1105.19 x 735.58; 1000: 1225.64 x 815.87 |
| Field of view H x V (mm) at working distance (mm), 1/2" sensor (6.22 x 4.67 mm) | 100: 118.6 x 88.4; 150: 169.47 x 126.51; 200: 220.31 x 164.61; 250: 271.14 x 202.7; 300: 321.96 x 240.79; 350: 372.79 x 278.88; 400: 423.61 x 316.97; 450: 474.43 x 355.05; 500: 525.25 x 393.14; 550: 576.07 x 431.23; 600: 626.89 x 469.31; 650: 677.71 x 507.4; 700: 728.53 x 545.48; 800: 830.16 x 621.65; 900: 931.79 x 697.82; 1000: 1033.43 x 773.99 |
Environment and compliance
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
|---|---|
| Certification | RoHS 2.0 |
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |
| Dimension | Ø39 mm × 32.53 mm (Ø1.5" × 1.3") |
| Weight | 65.8 g (0.1 lb.) |
| Shipping weight (estimated) | 0.19 kg |
