Machine vision lenses

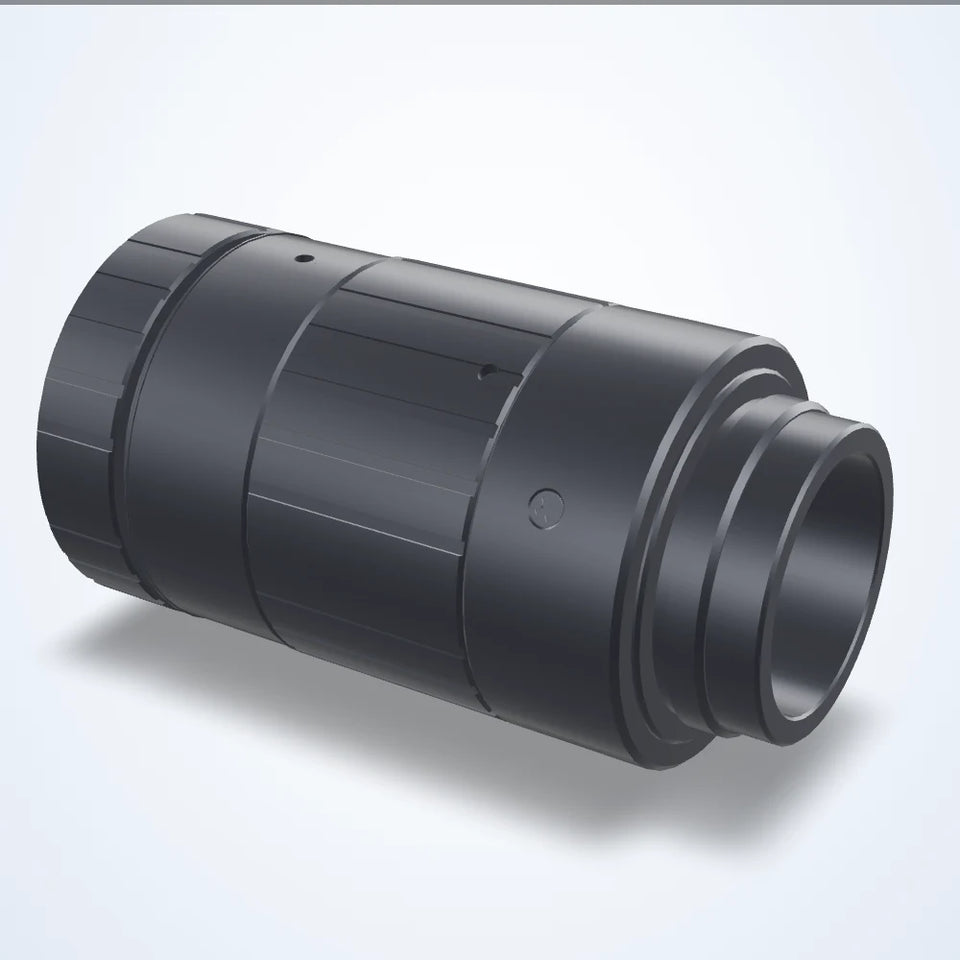

Lens series, 2/3", C-mount (S13)
- 5 models
- from $549.00
- Series LS-FFL-S13
The Lens series, 2/3", C-mount (S13) is a range of 5 machine vision lenses from LumaSpec Vision, from $549.00. It comes in 5 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 12 mm, 16 mm, 25 mm, 35 mm
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm
- Sensor format
- 2/3"
All 5 models in the Lens series, 2/3", C-mount (S13)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0106 | 25 mm | f/1.8 | 33 mm × 33 mm × 53.1 mm | 20.0° x 15.1° | $549.00quote | View |
| LS-FFL-0101 | 16 mm | f/1.8 | 33 mm × 33 mm × 52.5 mm | 30.8° x 23.3° | $589.00quote | View |
| LS-FFL-0096 | 12 mm | f/1.8 | 33 mm × 33 mm × 52.5 mm | 39.3° x 30.0° | $599.00quote | View |
| LS-FFL-0111 | 35 mm | f/2 | 33 mm × 33 mm × 53.1 mm | 14.7° x 11.0° | $599.00quote | View |
| LS-FFL-0122 | 8 mm | f/1.8 | 33 mm × 33 mm × 48.5 mm | 56.9° x 43.9° | $619.00quote | View |
