Machine vision lenses
25 mm lens, 2/3", C-mount, Visible, back focus 16.36 mm, 33 mm dia. (LS-FFL-0106)
Model LS-FFL-0106
- Focal length25 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.8
- Resolution12
$549.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0106 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 20.0° x 15.1° |
| Chief ray angle | 6.71° |
| Distance between principle points | -4.88 mm |
| Entrance pupil position | -13.12 mm |
| Exit pupil position | -45.01 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -2.54 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | -7.42 mm |
| Spectrum | Visible |
Optics
| Focal length | 25 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 16.36 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -0.02 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 12 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

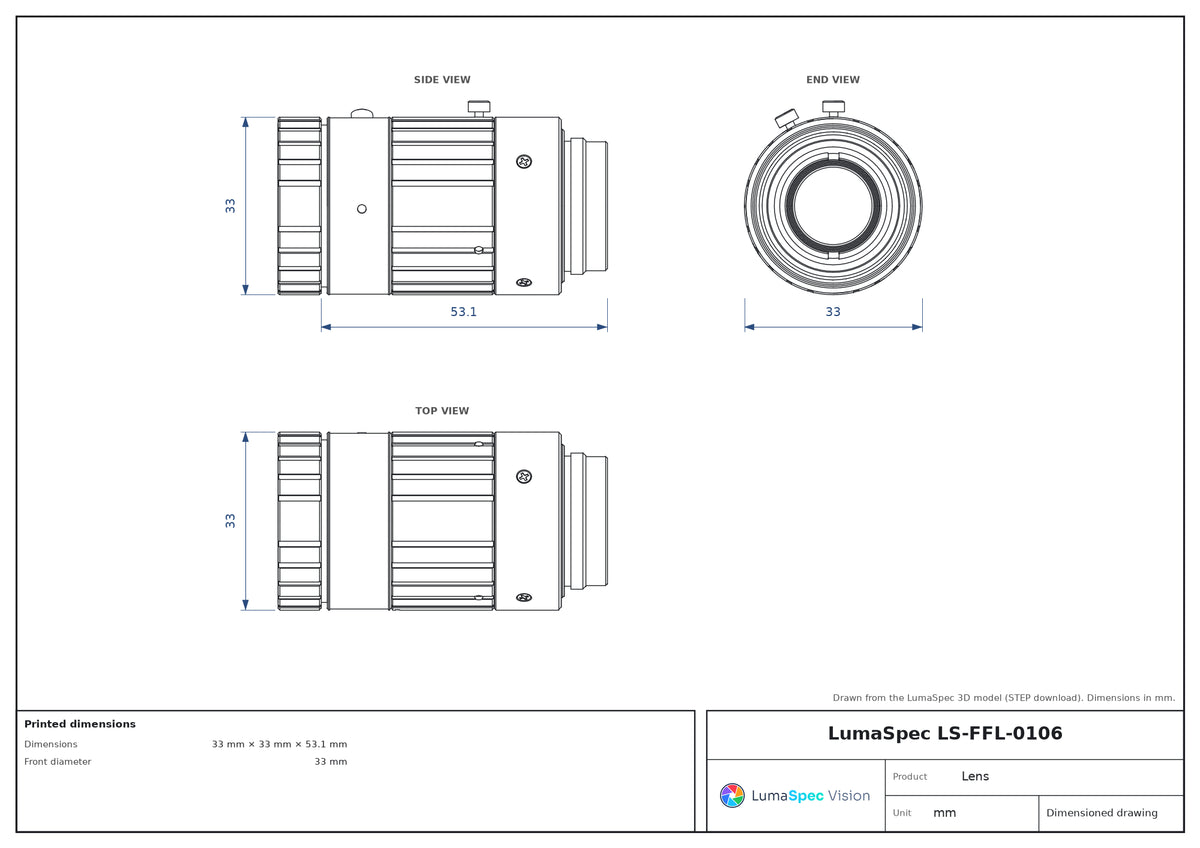

| Dimensions | 33 mm × 33 mm × 53.1 mm |
| Front diameter | 33 mm |
| Weight | 85 Grams |
LS-FFL-0106

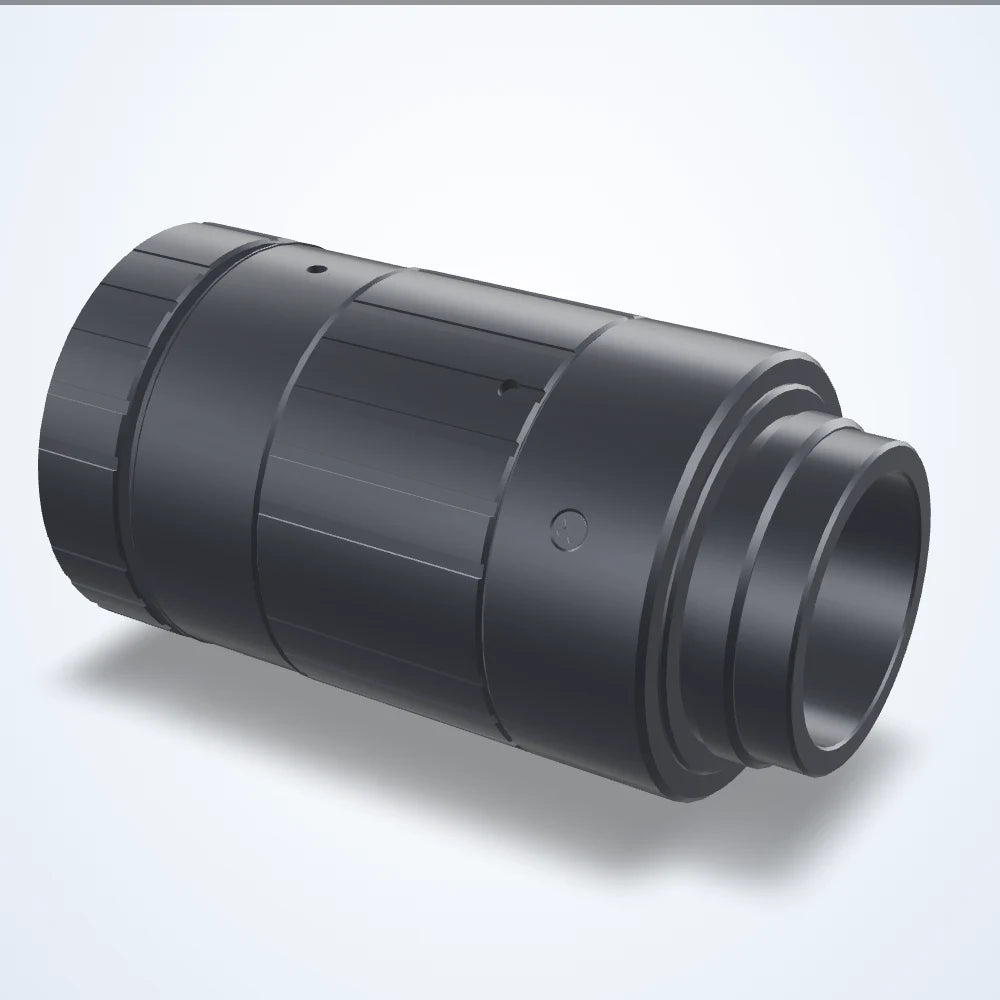

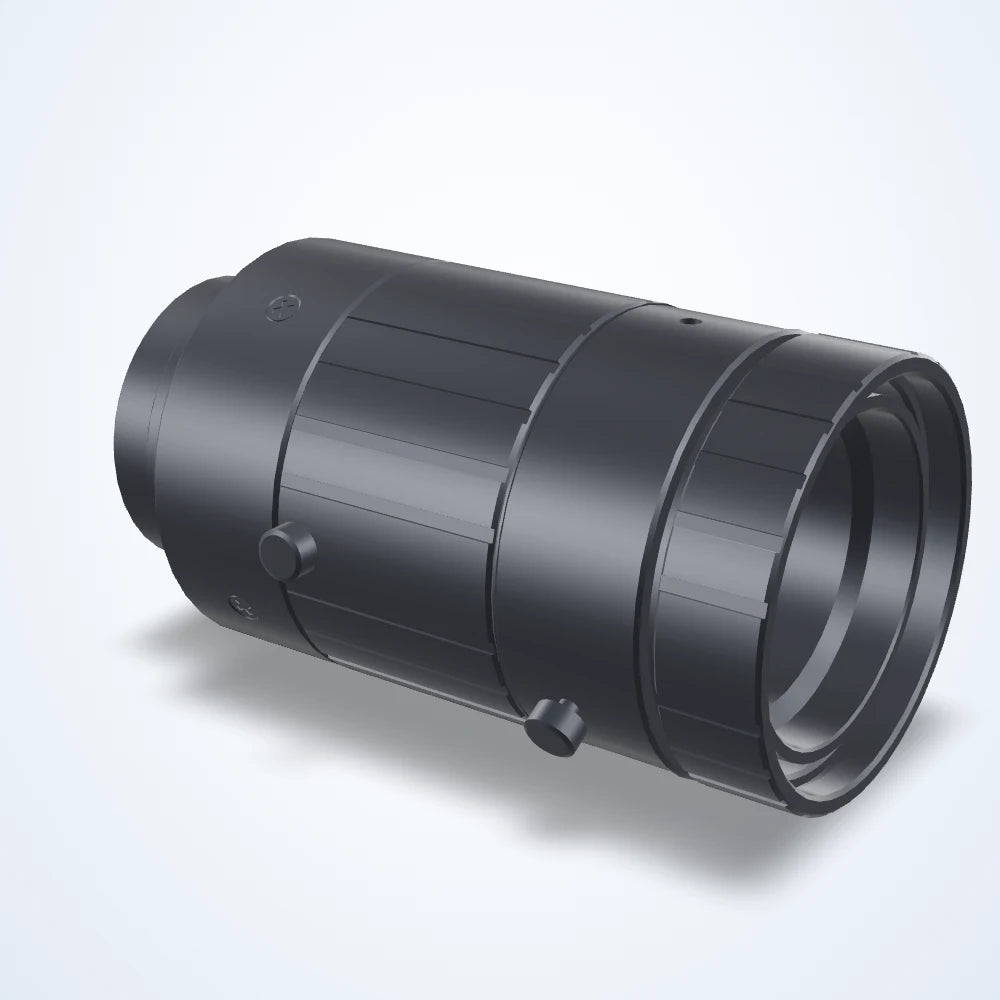

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 25 mm
- Sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
