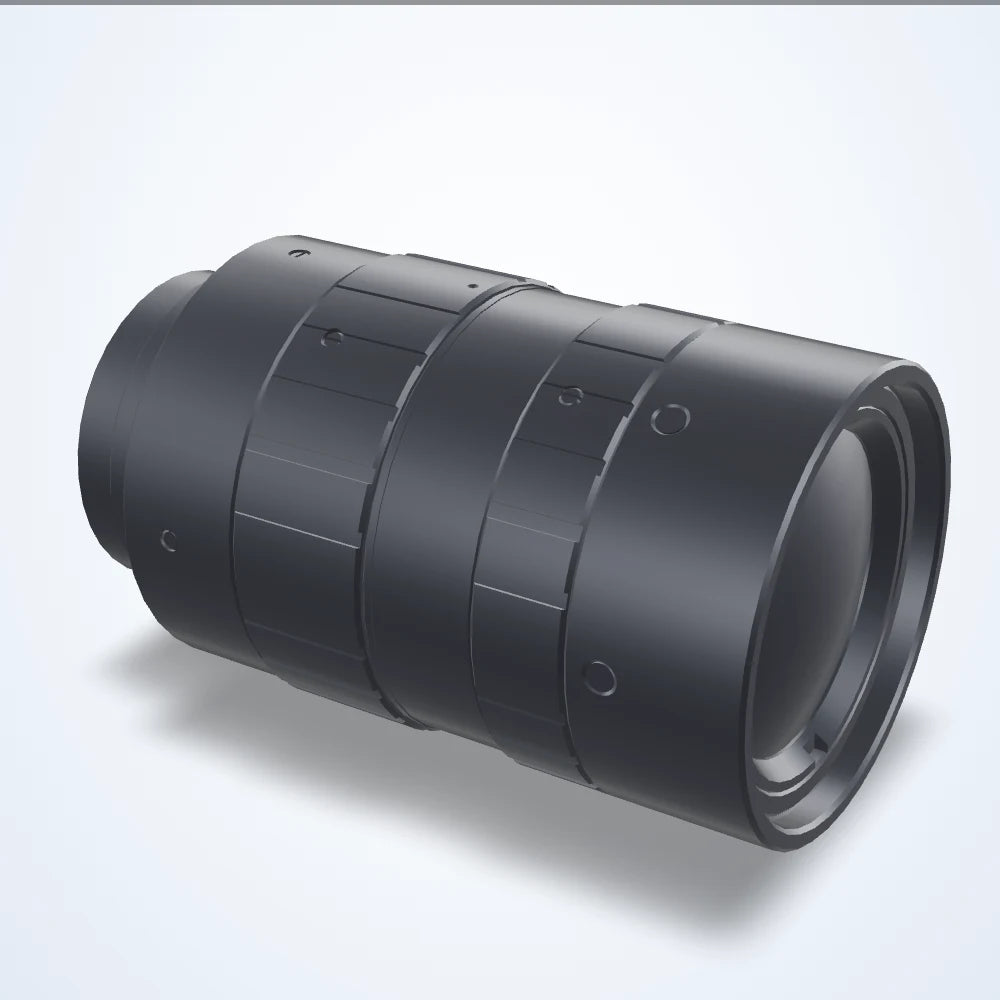

Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
8 mm lens, 2/3", C-mount, 33 mm dia. (LS-FFL-0122)
Model LS-FFL-0122
- Focal length8 mm
- MountC-mount
- Sensor2/3"
- Aperturef/1.8
- Resolution12
$619.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Machine vision lens for industrial cameras. Minimum object distance 100 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-0122 |
|---|---|
| Minimum object distance | 100 mm |
| Angle of view @ 2/3″ | 56.9° x 43.9° |
| Chief ray angle | 8.95° |
| Distance between principle points | 35.08 mm |
| Entrance pupil position | -31.65 mm |
| Exit pupil position | -35.03 mm |
| Flange back in air | 17.526 mm |
| Front principle point | -25.76 mm |
| Lens type | Fixed Focal Length |
| Rear principle point | 9.32 mm |
| Spectrum | Visible |
Optics
| Focal length | 8 mm |
|---|---|
| Aperture (max) | f/1.8 |
| Back focal length | 12.18 mm |
| Filter thread | M30.5-0.5 |
| Focus control | Manual |
| Iris control | Manual |
| TV distortion (%) | -1.03 |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (MP) | 12 |
Environment and compliance
| Operating temperature range | -10 to +50°C |
|---|
Mechanical
| Mount | C-mount |
|---|---|

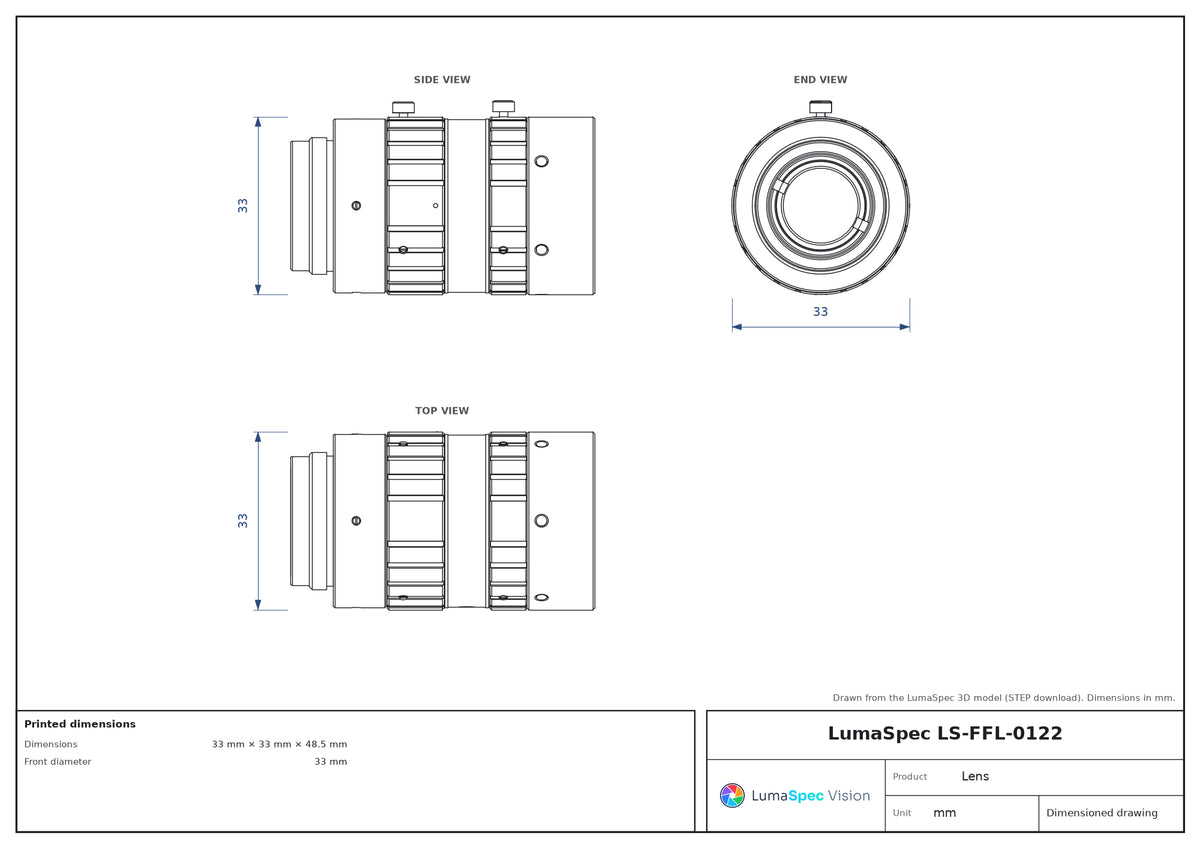

| Dimensions | 33 mm × 33 mm × 48.5 mm |
| Front diameter | 33 mm |
| Weight | 95 Grams |
LS-FFL-0122

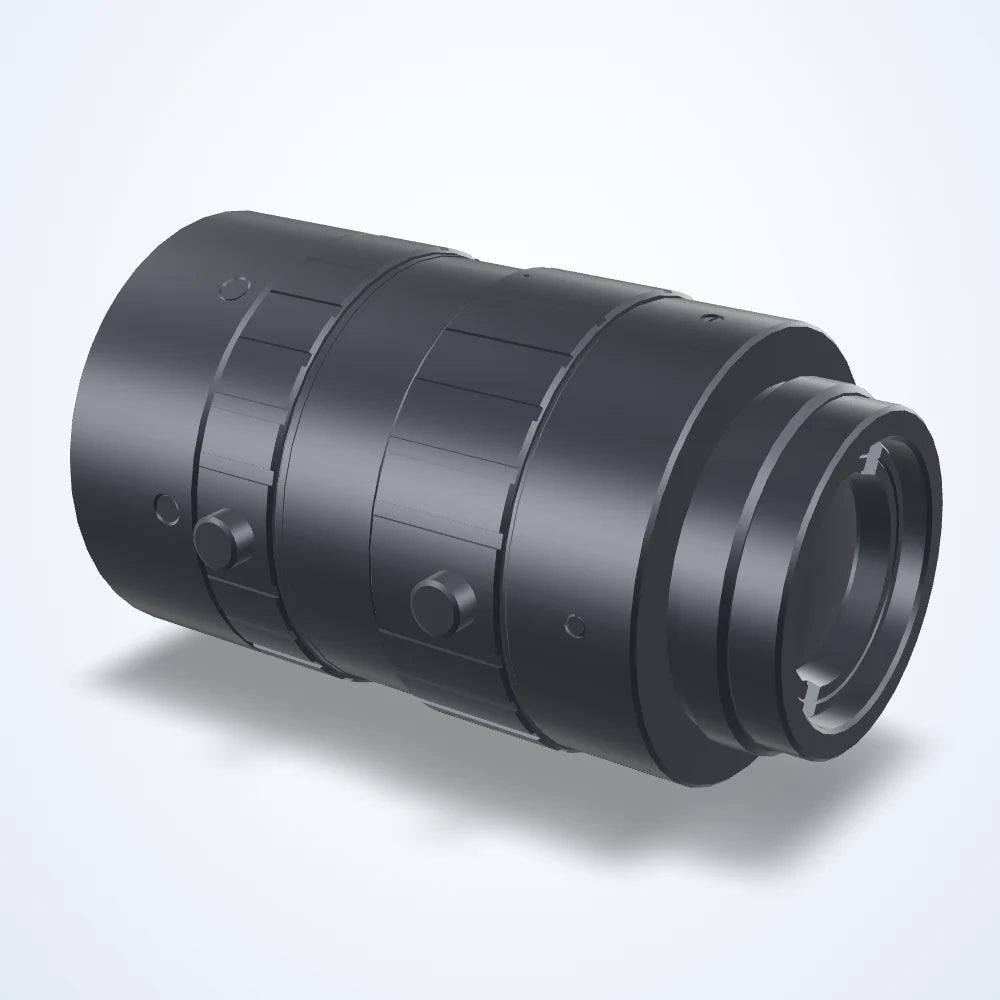

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Focal length
- 8 mm
- Sensor format
- 2/3"
- Mount
- C-mount
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
