Machine vision lenses

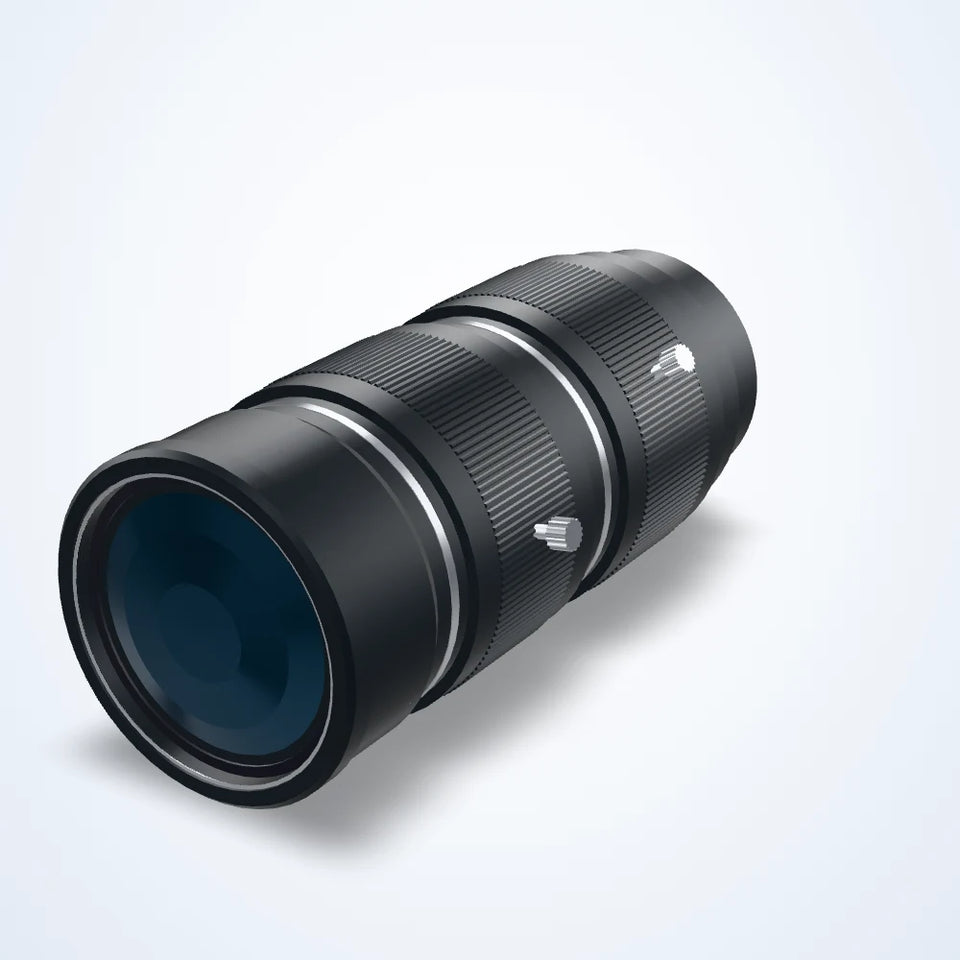

1" fixed focal length lenses (LS-FFL-S106)
- 15 models
- from $125.00
- Series LS-FFL-S106
The 1" fixed focal length lenses (LS-FFL-S106) is a range of 15 machine vision lenses from LumaSpec Vision, from $125.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 8 mm, 1", C-mount, 12 mm, 1", C-mount, 12.5 mm, 1", C-mount, 16 mm, 1", C-mount, 22 mm, 1", C-mount, 25 mm, 1", C-mount, 35 mm, 1", C-mount, 50 mm, 1", C-mount, 75 mm, 1", C-mount, 170 mm, 1", C-mount
- Type
- Fixed focal length
- Mount
- C-mount
- Resolution
- 5 MP, 6-10 MP
- Image circle
- 11-16 mm
- Focal length
- 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm, 100 mm +
- Sensor format
- 1"
All 15 models in the 1" fixed focal length lenses (LS-FFL-S106)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-1250 | 16 mm, 1", C-mount | 5MP | 16 mm | F1.6 | $125.00 | View |
| LS-FFL-1252 | 22 mm, 1", C-mount | 5MP | 22 mm | F2.0 | $125.00 | View |
| LS-FFL-1253 | 25 mm, 1", C-mount | 5MP | 25 mm | F1.6 | $125.00 | View |
| LS-FFL-1255 | 35 mm, 1", C-mount | 5MP | 35 mm | F1.4 | $125.00 | View |
| LS-FFL-1247 | 12 mm, 1", C-mount | 5MP | 12 mm | F1.6 | $165.00 | View |
| LS-FFL-1249 | 12.5 mm, 1", C-mount | 5MP | 12.5 mm | F1.4 | $165.00 | View |
| LS-FFL-1251 | 16 mm, 1", C-mount | 5MP | 16 mm | F1.4 | $165.00 | View |
| LS-FFL-1254 | 25 mm, 1", C-mount | 5MP | 25 mm | F1.4 | $165.00 | View |
| LS-FFL-1256 | 35 mm, 1", C-mount | 5MP | 35 mm | F1.4 | $165.00 | View |
| LS-FFL-1257 | 50 mm, 1", C-mount | 5MP | 50 mm | F1.4 | $165.00 | View |
| LS-FFL-1246 | 8 mm, 1", C-mount | 5MP | 8 mm | F1.4 | $165.00 | View |
| LS-FFL-1248 | 12 mm, 1", C-mount | 8MP | 12 mm | F1.4 | $170.00 | View |
| LS-FFL-1258 | 75 mm, 1", C-mount | 5MP | 75 mm | F1.8 | $170.00 | View |
| LS-FFL-1259 | 75 mm, 1", C-mount | 10MP | 75 mm | F2.8 | $350.00 | View |
| LS-FFL-1260 | 170 mm, 1", C-mount | 10MP | 170 mm | F4.4 | $910.00 | View |
