22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount (LS-FFL-1252)
  • 22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount (LS-FFL-1252)
  • 22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount (LS-FFL-1252)

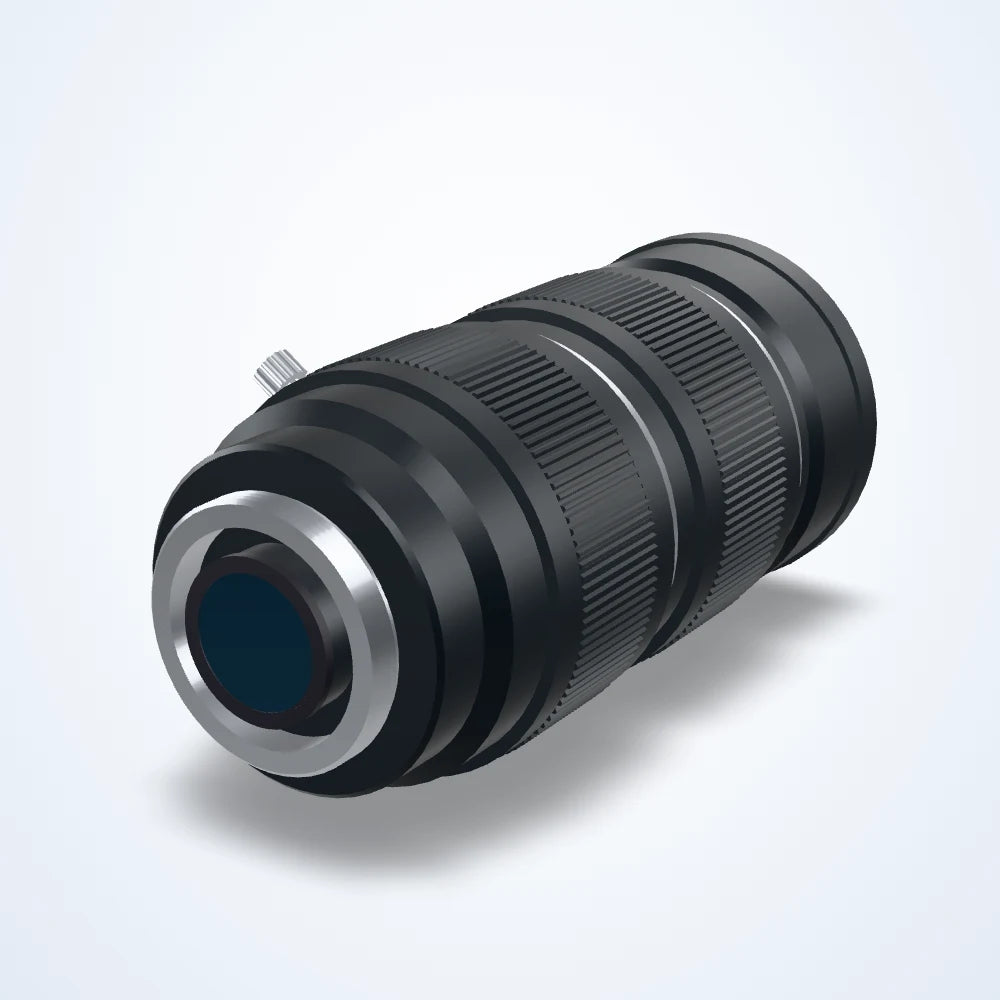

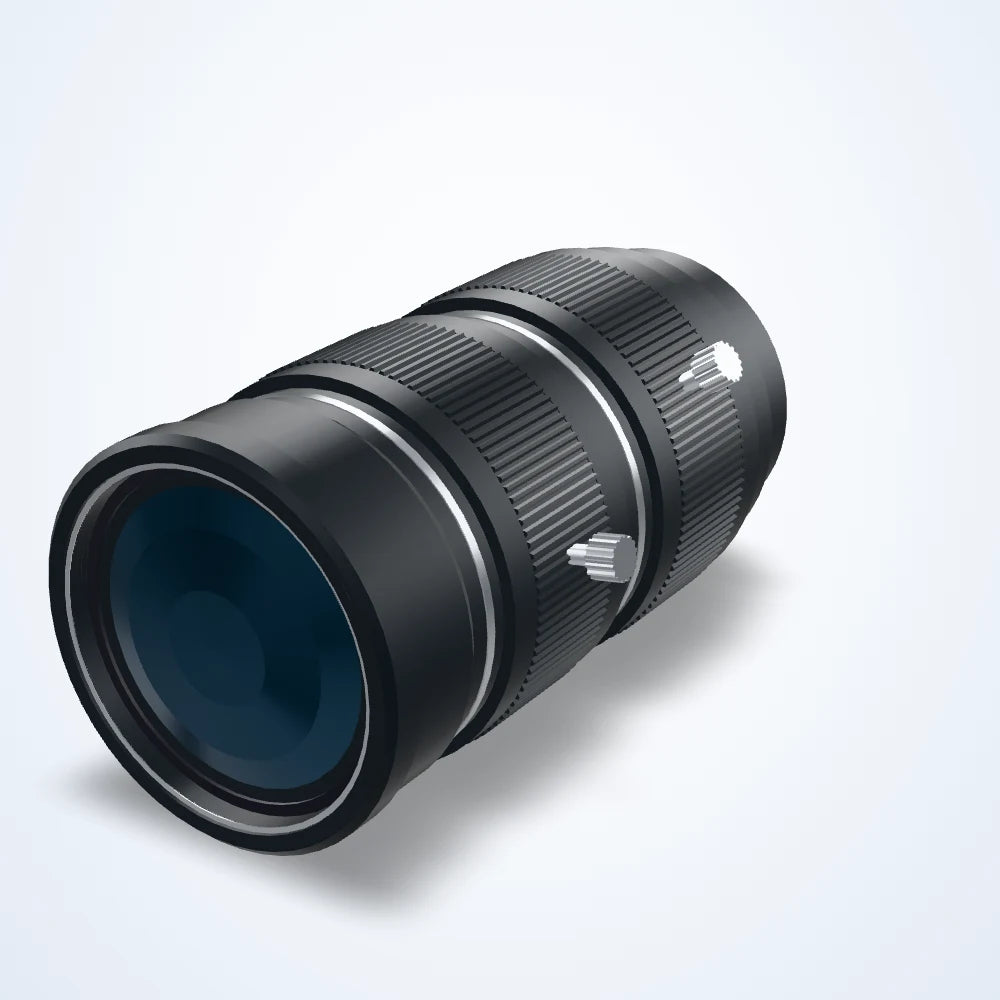

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount (LS-FFL-1252)

Model LS-FFL-1252

  • Focal length22 mm
  • MountC-mount
  • Sensor1"
  • ApertureF2.0
  • Resolution5 MP
$125.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

22 mm fixed focal length lens, 1", 5 MP, F2.0, C-mount (LS-FFL-1252)LS-FFL-1252

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-FFL-1252: focal length 22 mm, aperture F2.0, wavelength range 400-1100 nm, resolution 5 MP.

22 mm fixed focal length lens for machine-vision cameras. Focal length 22 mm; covers sensors up to 1"; resolves 5 MP; aperture F2.0; corrected for 400-1100 nm; C-mount.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-1252
Min. object distance0.4 m
Angle of viewD:40.0° H:32° V:24°

Optics

Focal length22 mm
ApertureF2.0
Back focal length20.3 mm
Distortion<1.0%
FocusManual

Sensor and imaging

Sensor format1"
Resolution5 MP

Light

Wavelength range400-1100 nm

Environment and compliance

Operating temperature-10 to 50 °C
Storage temperature-20 to 60 °C

Mechanical

MountC-mount
Flange back length17.526 mm
Length93.1 mm
DimensionsΦ40 × 78.48 mm
Weight220 g

Engineering data

Field of view with the LS-FFL-1252

Worked out from this lens's own focal length, image circle and closest focus: what it sees at your working distance, on the sensor you use.

Focal length22 mm
Image circleØ 16 mmCovers sensors up to 1"
Angle of view33.4° × 22.6°Calculated for a 1" sensor; 39.7° diagonal
Closest focus400 mm
Distortion< 1 %
Back focal length20.3 mm
Flange distance17.526 mm
Total length93.1 mm
SizeØ 40 × 78.48 mm
Weight220 g
Field of view (width × height) of the 22 mm lens by sensor format and working distance
Sensor formatAt 400 mmAt 1000 mmAt 2000 mmAt 5000 mm
1/1.8"7.07 × 5.3 mm129 × 96.4 mm321 × 241 mm643 × 482 mm1607 × 1205 mm
2/3"8.45 × 7.07 mm154 × 129 mm384 × 321 mm768 × 643 mm1920 × 1607 mm
1/1.2"11.25 × 7.03 mm205 × 128 mm511 × 320 mm1023 × 639 mm2557 × 1598 mm
1"13.2 × 8.8 mm240 × 160 mm600 × 400 mm1200 × 800 mm3000 × 2000 mm

Thin-lens approximation: field of view ≈ sensor size × working distance ÷ focal length, with the distance measured to the front of the lens; closest to reality when the distance is many times the focal length. Sensor sizes are typical for each optical format.

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount and sensor coverage, supply voltage, power per channel and connector.

Build the full system with this part

Cameras this lens fits

7.1 mm sensor diagonal; this lens covers up to 16 mm

9.5 mm sensor diagonal; this lens covers up to 16 mm

3.2 mm sensor diagonal; this lens covers up to 16 mm

6.6 mm sensor diagonal; this lens covers up to 16 mm

With a 5 mm C-CS ring

15.8 mm sensor diagonal; this lens covers up to 16 mm

8.9 mm sensor diagonal; this lens covers up to 16 mm

Adapters

For CS-mount cameras

Other models in the 1" fixed focal length lenses (LS-FFL-S106) series

See all 15 models
ModelFocal lengthApertureResolutionPriceAvailabilityLink
LS-FFL-1252This model22 mmF2.05 MP$125.00 Ships in 3-4 weeks
LS-FFL-125016 mmF1.65 MP$125.00 Ships in 3-4 weeks View
LS-FFL-125325 mmF1.65 MP$125.00 Ships in 3-4 weeks View
LS-FFL-125535 mmF1.45 MP$125.00 Ships in 3-4 weeks View
LS-FFL-124712 mmF1.65 MP$165.00 Ships in 3-4 weeks View
LS-FFL-124912.5 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-125116 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-125425 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-125635 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-125750 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-12468 mmF1.45 MP$165.00 Ships in 3-4 weeks View
LS-FFL-124812 mmF1.48 MP$170.00 Ships in 3-4 weeks View
LS-FFL-125875 mmF1.85 MP$170.00 Ships in 3-4 weeks View
LS-FFL-125975 mmF2.810 MP$350.00 Ships in 3-4 weeks View
LS-FFL-1260170 mmF4.410 MP$910.00 Ships in 3-4 weeks View
