Machine vision lenses
35 mm fixed focal length lens, 1", 5 MP, F1.4, C-mount (LS-FFL-1255)
Model LS-FFL-1255
- Focal length35 mm
- MountC-mount
- Sensor1"
- ApertureF1.4
- Resolution5MP
$125.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
35 mm fixed focal length lens for machine-vision cameras. Focal length 35 mm; covers sensors up to 1"; resolves 5 MP; aperture F1.4; corrected for 400-1100 nm; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1255 |
|---|---|
| Min. object distance | 1 m |
| Angle of view | D:25.7° H:20.7° V:15.6° |
Optics
| Focal length | 35 mm |
|---|---|
| Aperture | F1.4 |
| Back focal length | 12.83 mm |
| Distortion | 0.27%@y=8 mm |
| Focus | Manual |
| Filter thread | M39 × 0.5 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution | 5MP |
Light
| Wavelength range | 400-1100 nm |
|---|
Environment and compliance
| Operating temperature | -10- 50°C(Working), -20- 60°C(Storage) |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

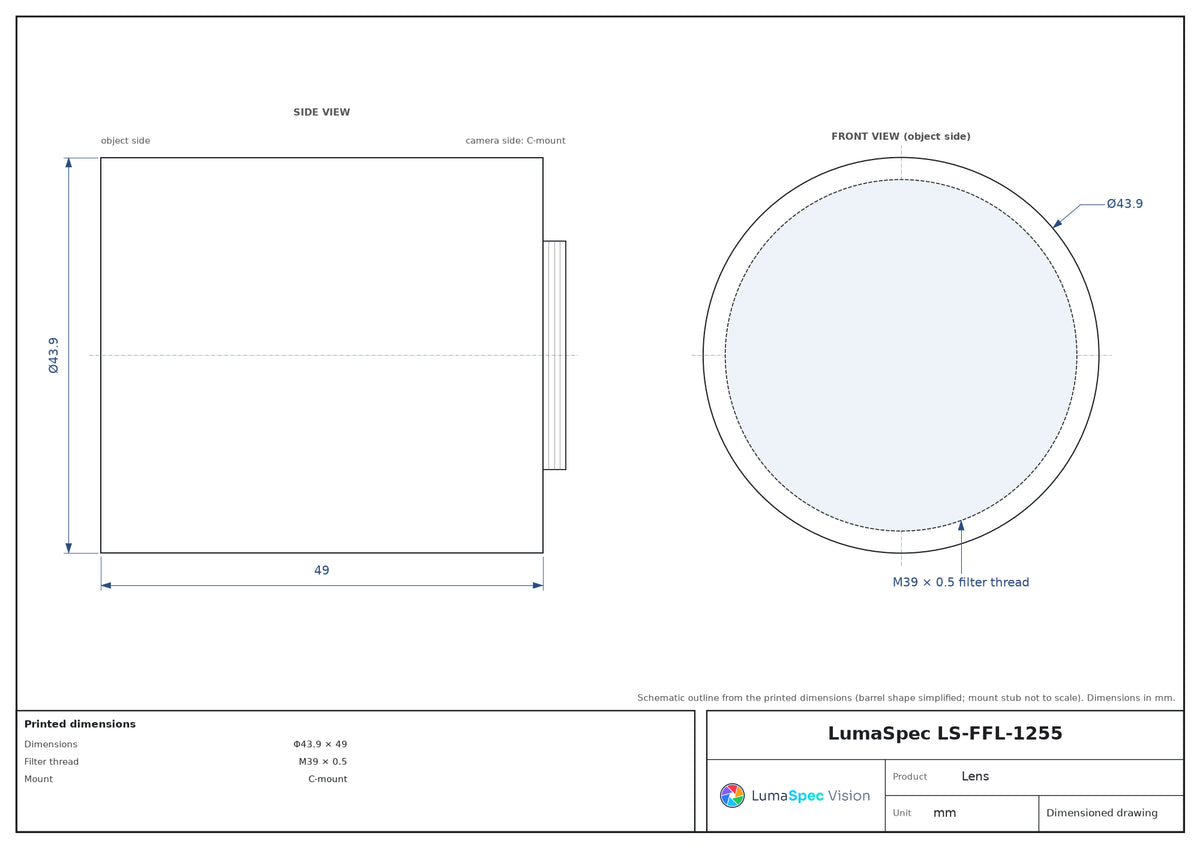

| Dimensions | Φ43.9 × 49 |
| Weight | 155 g |
