Rendered illustration: the actual product may differ in appearance.
Machine vision lenses
75 mm fixed focal length lens, 1", 10 MP, F2.8, C-mount (LS-FFL-1259)
Model LS-FFL-1259
- Focal length75 mm
- MountC-mount
- Sensor1"
- ApertureF2.8
- Resolution10MP
- Field of view10.4° ×7.9° ×13.0°
$350.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
75 mm fixed focal length lens for machine-vision cameras. Focal length 75 mm; covers sensors up to 1"; resolves 10 MP; aperture F2.8; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-FFL-1259 |
|---|---|
| Min. object distance | 0.6 |
Optics
| Focal length | 75 mm |
|---|---|
| Aperture | F2.8 |
| Back focal length | 36.90 mm |
| Field of view | 10.4° ×7.9° ×13.0° |
| Distortion | <0.1% |
| Focus | Manual |
| Filter thread | M37.5*0.5 |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution | 10MP |
Environment and compliance
| Operating temperature | -20 °C~ +60 °C |
|---|
Mechanical
| Mount | C-mount |
|---|---|
| Flange back length | 17.526 mm |

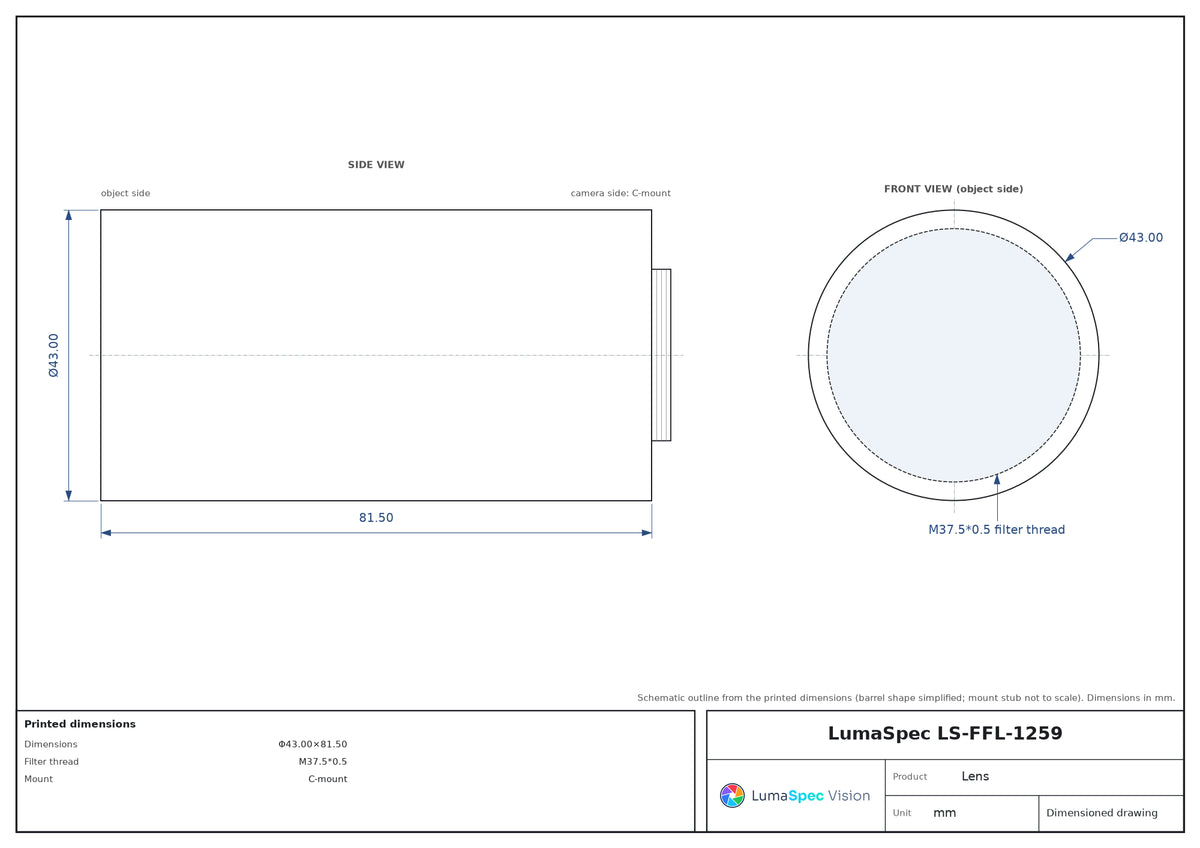

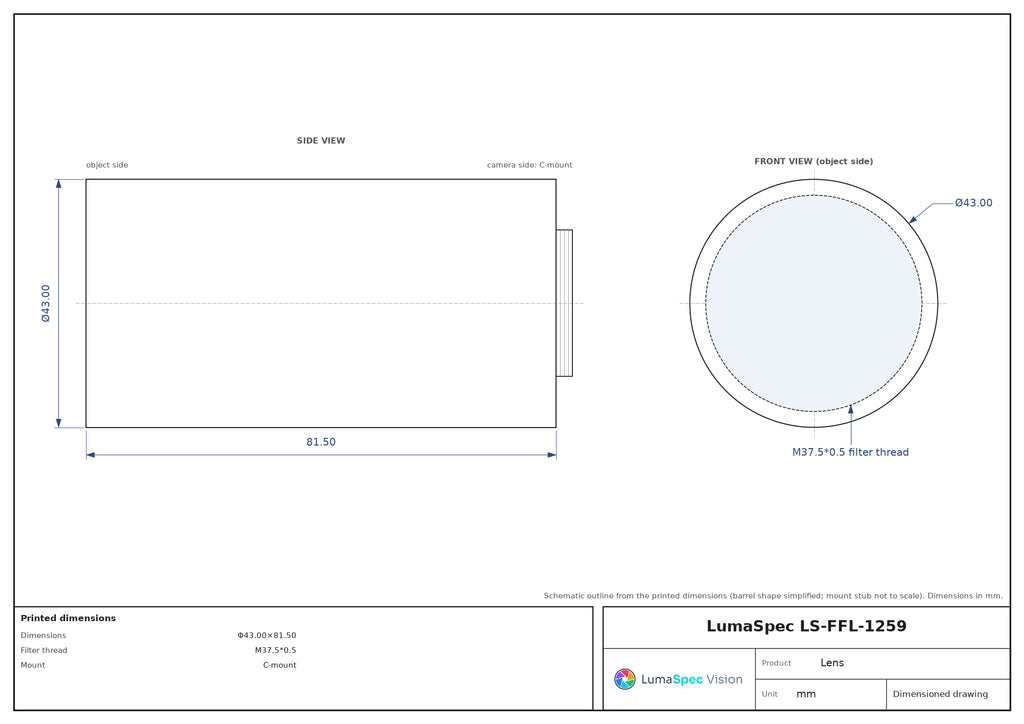

| Dimensions | Φ43.00×81.50 |
| Weight | 250g |
Other models in the 1" fixed focal length lenses (LS-FFL-S106) series
See all 15 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-FFL-1250 | 16 mm, 1", C-mount | $125.00 | Ships in 3-4 weeks | View |
| LS-FFL-1252 | 22 mm, 1", C-mount | $125.00 | Ships in 3-4 weeks | View |
| LS-FFL-1253 | 25 mm, 1", C-mount | $125.00 | Ships in 3-4 weeks | View |
| LS-FFL-1255 | 35 mm, 1", C-mount | $125.00 | Ships in 3-4 weeks | View |
| LS-FFL-1247 | 12 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1249 | 12.5 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1251 | 16 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1254 | 25 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1256 | 35 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1257 | 50 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1246 | 8 mm, 1", C-mount | $165.00 | Ships in 3-4 weeks | View |
| LS-FFL-1248 | 12 mm, 1", C-mount | $170.00 | Ships in 3-4 weeks | View |
| LS-FFL-1258 | 75 mm, 1", C-mount | $170.00 | Ships in 3-4 weeks | View |
| LS-FFL-1260 | 170 mm, 1", C-mount | $910.00 | Ships in 3-4 weeks | View |
