Machine vision lenses

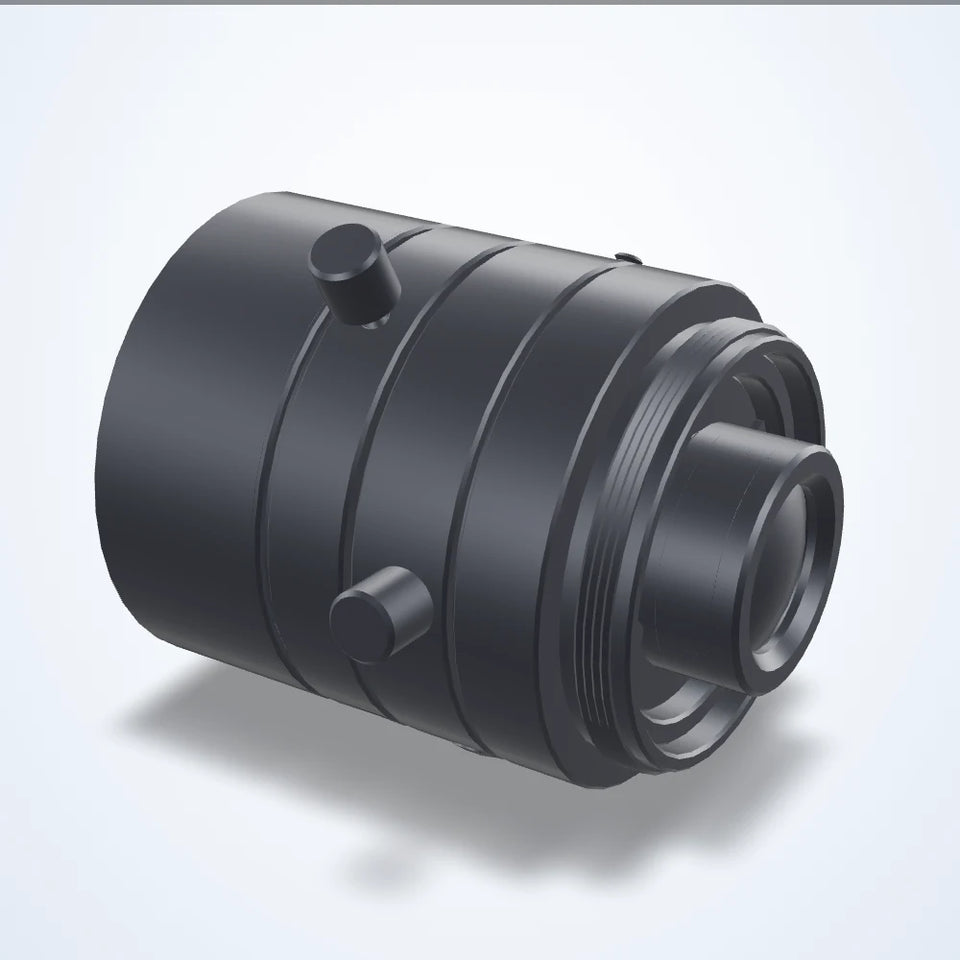

Lens series, 2/3", C-mount (S04)
- 8 models
- from $299.00
- Series LS-FFL-S04
The Lens series, 2/3", C-mount (S04) is a range of 8 machine vision lenses from LumaSpec Vision, from $299.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 5 mm, 8 mm, 12 mm, 16 mm, 25 mm, 35 mm, 50 mm, 75 mm
- Mount
- C-mount
- Image circle
- 8-11 mm
- Focal length
- Under 6 mm, 6-12 mm, 12-25 mm, 25-50 mm, 50-100 mm
- Sensor format
- 2/3"
All 8 models in the Lens series, 2/3", C-mount (S04)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-FFL-0023 | 16 mm | 29 × 29 × 29.5 mm | 20.2 × 15.3 × 25° | 20.2 × 15.3 × 25° | $299.00quote | View |
| LS-FFL-0024 | 25 mm | 29 × 29 × 32 mm | 16.3 × 12.3 × 20.3° | 13 × 9.8 × 16.1° | $299.00quote | View |
| LS-FFL-0026 | 35 mm | 29 × 29 × 39 mm | 11.7 × 8.7 × 14.4° | 9.3 × 7 × 11.6° | $299.00quote | View |
| LS-FFL-0028 | 50 mm | 29 × 29 × 56.5 mm | 8.2 × 6.2 × 10.2° | 10 × 7.5 × 12.5° | $299.00quote | View |
| LS-FFL-0021 | 12 mm | 29 × 29 × 44 mm | 33.1 × 26 × 40.8° | 26.7 × 20.3 × 33° | $319.00quote | View |
| LS-FFL-0019 | 8 mm | 32 × 32 × 36 mm | 47.3 × 37.5 × 57.7° | 38.5 × 29.4 × 47.2° | $329.00quote | View |
| LS-FFL-0030 | 75 mm | 36 × 36 × 75.5 mm | 5.5 × 4.1 × 6.9° | 6.7 × 5 × 8.4° | $369.00quote | View |
| LS-FFL-0017 | 5 mm | 75 × 75 × 54.5 mm | 71.6 × 58.3 × 83.8° | 59.8 × 46.6 × 71.4° | $549.00quote | View |
