5 mm lens, 2/3", C-mount (LS-FFL-0017)

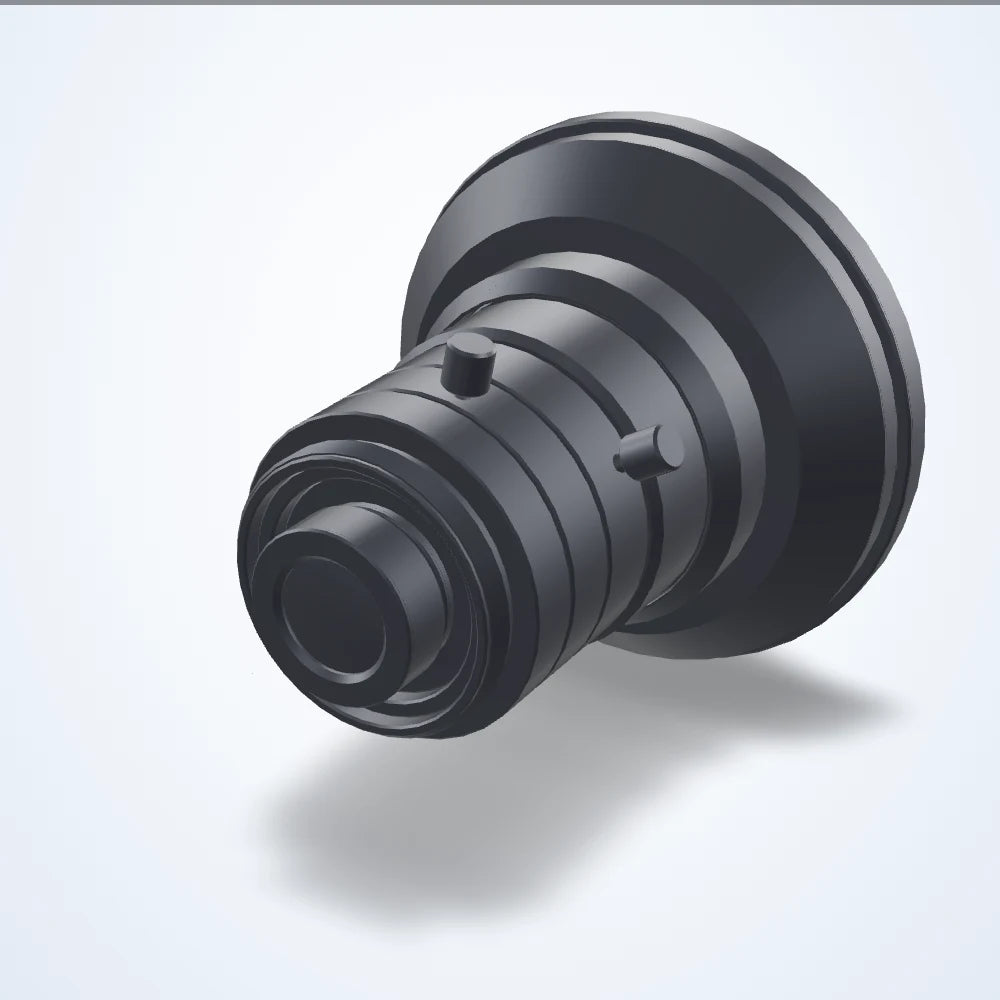

  • 5 mm lens, 2/3", C-mount (LS-FFL-0017)

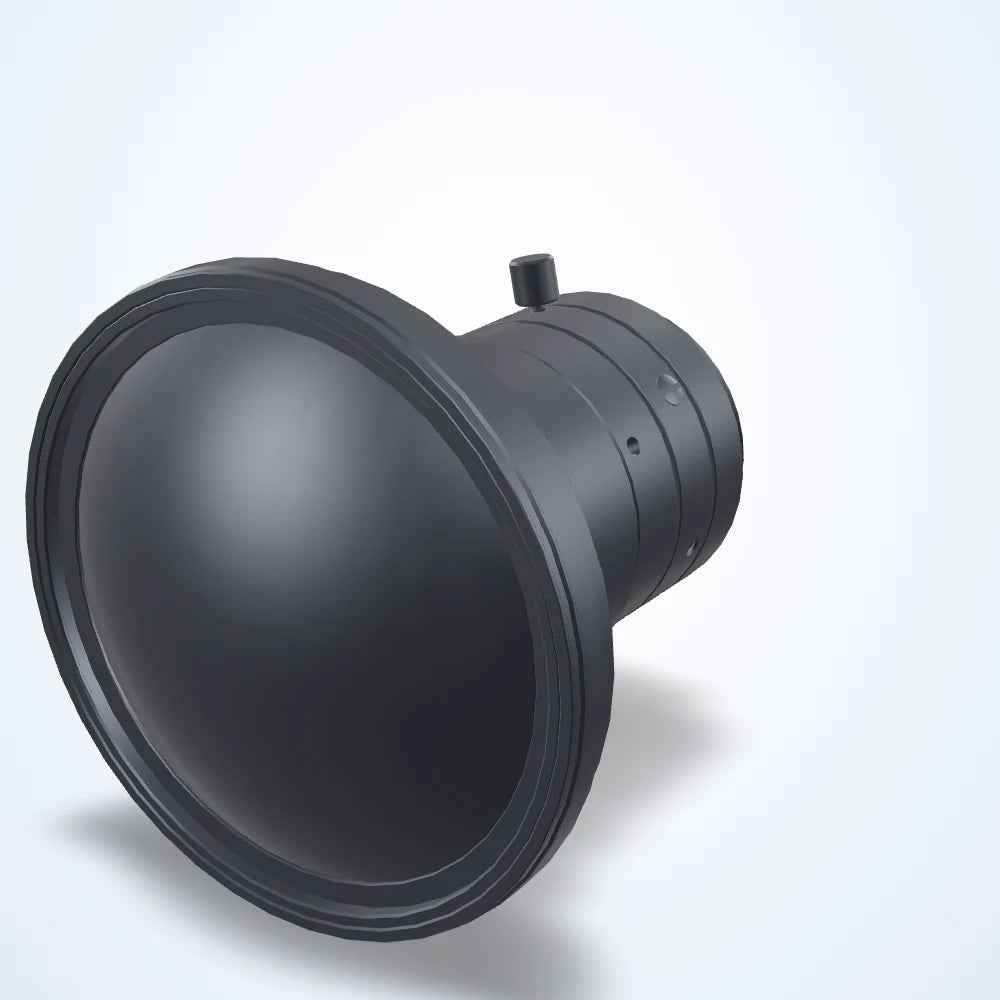

  • 5 mm lens, 2/3", C-mount (LS-FFL-0017) - view 2

Rendered illustration: the actual product may differ in appearance.

Machine vision lenses

5 mm lens, 2/3", C-mount (LS-FFL-0017)

Model LS-FFL-0017

  • Focal length5 mm
  • MountC-mount
  • Sensor2/3"
  • Aperturef/2.8
  • Resolution6
$549.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

5 mm lens, 2/3", C-mount (LS-FFL-0017)LS-FFL-0017

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Machine vision lens for industrial cameras. Minimum object distance 100 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-FFL-0017
Minimum object distance100 mm
Aov @ 1/1.8″ h°×v°×d°71.6 × 58.3 × 83.8°
Aov @ 1/2.5″ h°×v°×d°59.8 × 46.6 × 71.4°
Lens typeFixed Focal Length
SpectrumVisible
Zoom rangeFixed

Optics

Focal length5 mm
Aperture (max)f/2.8
Back focal length9.2 mm
Filter threadM72-0.75
Focus controlManual
Focus range0.1 m - ∞
Image circle11 mm
Image size dimensions8.8 mm x 6.6 mm
Iris controlManual
TV distortion (%)0.03

Sensor and imaging

Sensor format2/3"
Resolution (MP)6

Environment and compliance

Operating temperature range-10 to +50 °C

Mechanical

MountC-mount
Dimensions75 × 75 × 54.5 mm
Flange back length17.526 mm
Front diameter45.5 mm
Rear effective diameter9.9 mm
Weight163

LS-FFL-0017

See this component from every angle.

CAD-based illustration; finish is representative.

Explore the visual library
LS-FFL-0017 — Lenses, View 1 Source CAD

FROM THE PRINTED SPECIFICATIONS

Focal length
5 mm
Sensor format
2/3"
Mount
C-mount

Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.

Other models in the Lens series, 2/3", C-mount (S04) series

See all 8 models
ModelSize / key dataPriceAvailabilityLink
LS-FFL-0023 16 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0024 25 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0026 35 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0028 50 mm $299.00 Quote Lead time confirmed with your quote View
LS-FFL-0021 12 mm $319.00 Quote Lead time confirmed with your quote View
LS-FFL-0019 8 mm $329.00 Quote Lead time confirmed with your quote View
LS-FFL-0030 75 mm $369.00 Quote Lead time confirmed with your quote View
